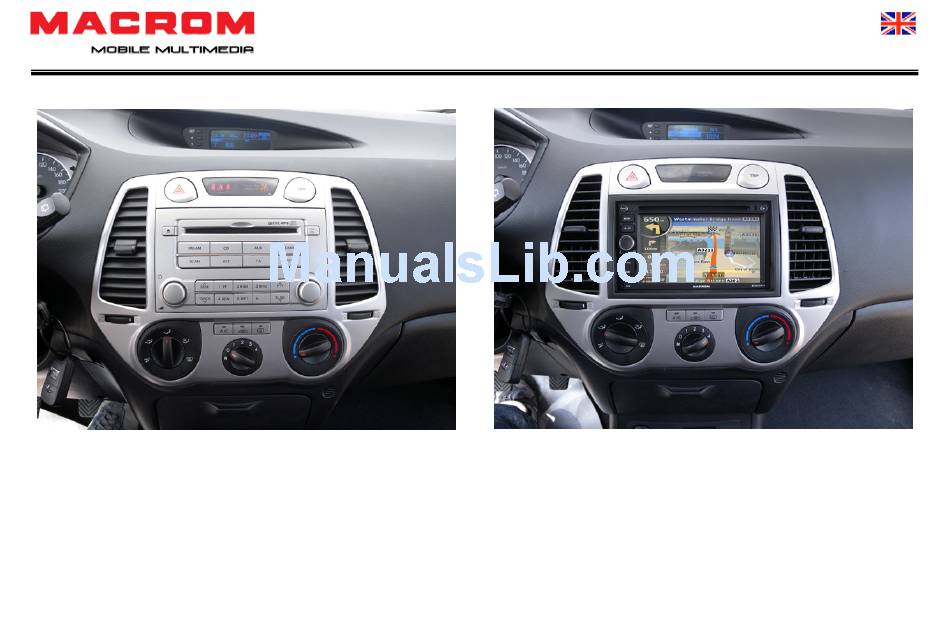

- Page 1 EF-HU1-5561 Easy fit M-DVD5561R for Hyundai i20 AFTER BEFORE Ver 1.0 07-06-2011 – Installazione i20...
- Page 2 EF-HU1-5561 Easy fit M-DVD5561R for Hyundai i20 • Start removing the silver plastic flange • Remove the 3 handles of the air conditioner and after remove the covering of radio flange. • To remove it leverage in the lower side of the flange with a plastic flat bar (see arrows on the picture) •...
- Page 3 EF-HU1-5561 Easy fit M-DVD5561R for Hyundai i20 shell containing the circuit of air conditioner • Before removing the covering of radio flange, it is necessary to release all the clips that close the shell containing the circuit of air conditioner...
- Page 4 EF-HU1-5561 Easy fit M-DVD5561R for Hyundai i20 • Remove the 5 screws as indicated to release the OEM head unit. Ver 1.0 07-06-2011 – Installazione i20...
- Page 5 EF-HU1-5561 Easy fit M-DVD5561R for Hyundai i20 Facia adapter Metal bracket • Mount the metal brackets on the Macrom head unit as indicated paying attention to center the screws on the reference lines of the brackets. Ver 1.0 07-06-2011 – Installazione i20...
- Page 6 EF-HU1-5561 Easy fit M-DVD5561R for Hyundai i20 Connection harness with interface • Connect the head unit to the interface device and place the GPS antenna and the microphone before to close the plastics. Ver 1.0 07-06-2011 – Installazione i20...
-
Page 7: Correct Orientation
EF-HU1-5561 Easy fit M-DVD5561R for Hyundai i20 CORRECT ORIENTATION The orientation provides the positioning of the BLACK surface facing the sky. • Pay attention to the GPS antenna position. It MUST be looking to the sky as indicated in the above picture. If not positioned correctly the GPS signal is bad and may cause a malfunction of the navigation system. - Page 8 EF-HU1-5561 Easy fit M-DVD5561R for Hyundai i20 • Insert the Facia adapter before closing. • To close the plastic, first close the shell containing the air conditioner circuitry. • Than place the flange on the top side then place the flange below pressing the sides until they are completely looked.
- Page 9 EF-HU1-5561 Easy fit M-DVD5561R for Hyundai i20 • Now your Macrom entertainment system is ready to play. Ver 1.0 07-06-2011 – Installazione i20...
- Page 10 EF-HU1-5561 Easy fit M-DVD5561R for Hyundai i20 ALDINET Spa. - Viale C. Colombo, 8 - 20090 Trezzano s/N (MI) Italy Ver 1.0 07-06-2011 – Installazione i20...
