Summary of Contents for Tefcold NOC60CC-P

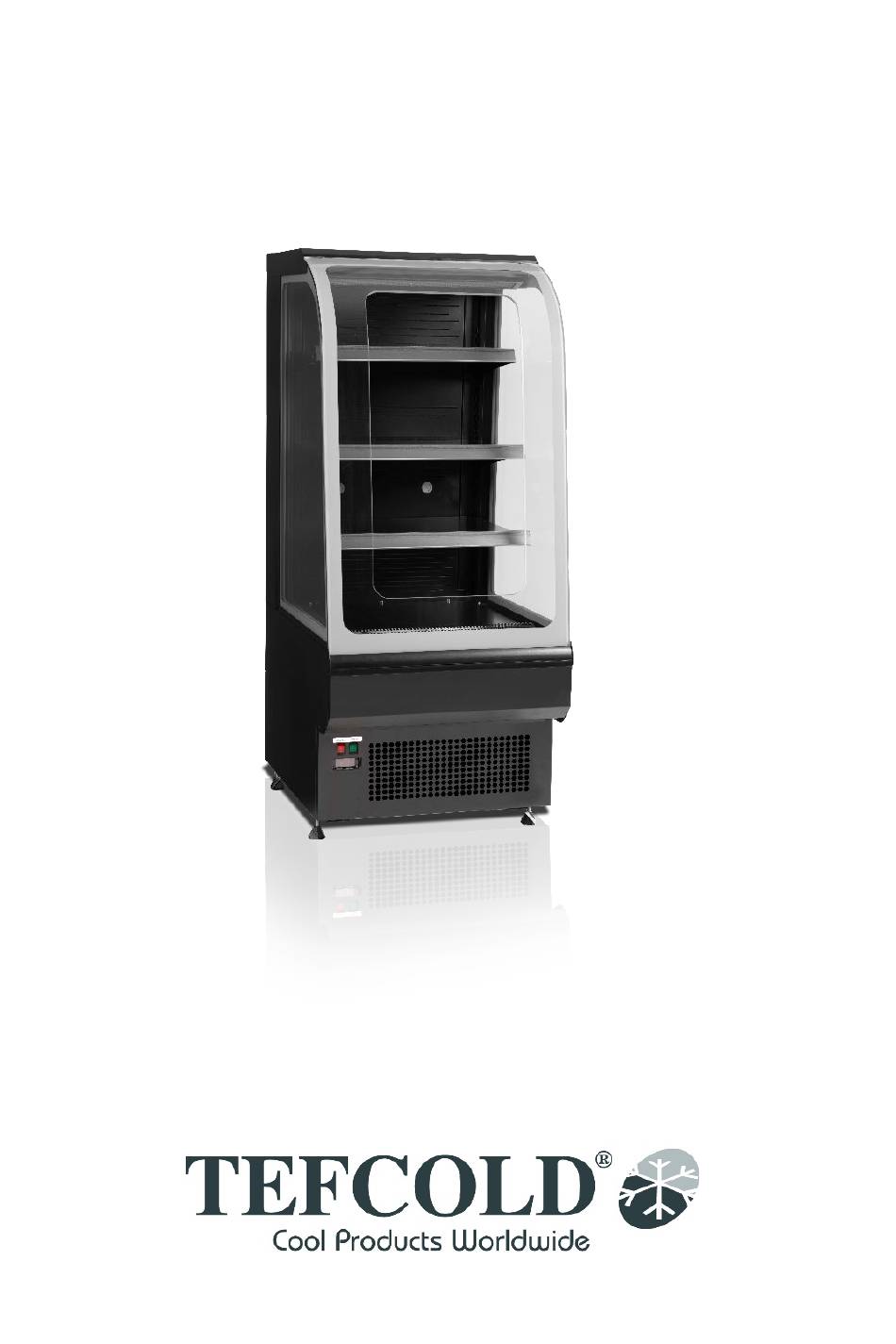

- Page 1 Instruction Manual NOC60CC-P / NOC90CC-P...
- Page 2 Note: REFRIGERANT R290 Be sure to keep the opening clear ventilation system free from closures or obstacles. It is forbidden to set up or install the device near external ignition sources. Pay special attention to the minimum capacity (volume) (cubic capacity) of the room in which the device will be installed.
-
Page 3: Table Of Contents
TABLE OF CONTENTS APPLICATIONS ....................5 EXPLOITATION ....................5 2.1. Refrigerating system ..................6 Compressor ....................6 2.2. Electrical installation and power supply ............. 6 2.3. Installation and use ....................7 2.4. Turning on the device ..................8 Change of the temperature setting ..............8 Change of the temperature setting .............. -
Page 5: Applications
1. APPLICATIONS Refrigeration devices such as pastry counters are intended for displaying previously cooled food pro- ducts and sale in retail trade. The construction of the device ensures obtaining optimal operating parameters, provided that all in- structions contained in this manual are met. In order to ensure correct operation and obtain the best possible parameters, the manufacturer recommends familiarizing users with the operation, mainte- nance of the device and basic issues related to the safety of use. -
Page 6: Refrigerating System
WARNING! It is forbidden to: Tilting the device at an angle of more than 45°,but if it is necessary, wait about 1 hour before starting the compressor, until the oil flows to the compressor. WARNING! Replacing the light source only after disconnecting from the power supply. The power of the light sources is given on the product nameplate. -
Page 7: Installation And Use
The compressor of the device is adapted to work at a mains voltage not lower than 220 V and not higher than 240 V. Operating the device outside of these power supply parameters can lead to irreparable damage to the compressor. 2.3. -
Page 8: Turning On The Device
2.4. Turning on the device 1. Connect the device to the electric supply. 2. Turn on the main switch of refrigerant system (red switch – 1). The Carel/Dixell electronic contro- ller with the programmed temperature is automatically switched on (setting). After max. 1 minute the compressor is started. -
Page 9: Alarm Functions
Alarm functions „E0” – temperature sensor failure. „E1” – defrost sensor failure. If the word OFF appears, press and hold the button for about 3 seconds. In the event of an alarm, report to the nearest service center. 2.6. Operating the thermostat – Dixell Fig. -
Page 10: Individual Decoration Panel Building Of Devices
2.7. Individual decoration panel building of devices The manufacturer allows the individual housing (installation) of the device provided that: • Ensure proper air circulation in the device;. • Do not install, cover the rear of the condenser and the control panel. •... - Page 11 A special care is required when performing the tilting window cleaning operation due to its weight. Window cleaning operation that require the windshield to be ope- ned should be performed by two service staff (one person holds the tilted glass, the other person cleans internal glass surfaces, see (Fig.
-
Page 12: Conditions For Safety And Working Hygiene
Fig. 7 Fig. 8 4. CONDITIONS FOR SAFETY AND WORKING HYGIENE 1. Do not connect the device to the electrical network until protective devices have been installed. 2. Installation of the electrical installation should be made by a qualified electrician. 3. -
Page 13: Comments And Warnings
WARNING! STRICT COMPLIANCE WITH THE RULES CONNECTED IN THE MANUAL IS GUARANTEEING THE DURABILITY AND RELIABILITY OF THE DEVICE. THE MANUFACTURER IS NOT RESPONSIBLE FOR DAMAGE RESULTING FROM THE CAUSES OF OPERATION OF THE UNIT WITHOUT DESTINATION, WITHOUT A CHARACTERISTIC AND WITHOUT THESE INSTRUCTIONS. The warranty does not cover: •... -
Page 14: Information On The Disposal Of The Equipment
7. INFORMATION ON THE DISPOSAL OF THE EQUIPMENT In accordance with Directive 2012/19/EU, it is forbidden to dispose of used electrical appliances together with normal waste. Such equipment should be handed over to the collection points designated by the local authorities. -
Page 16: Check Before You Call A Service
CHECK BEFORE YOU CALL A SERVICE… Possible failure Possible cause Solution Power cord is disconnected. Connect the power cord. The device does Power cord is damaged. Call electric service. not turn on Main switch is turned off. Turn on the main switch (check the fuse). Ambient conditions not in accordance with the instructions Change the device location...
