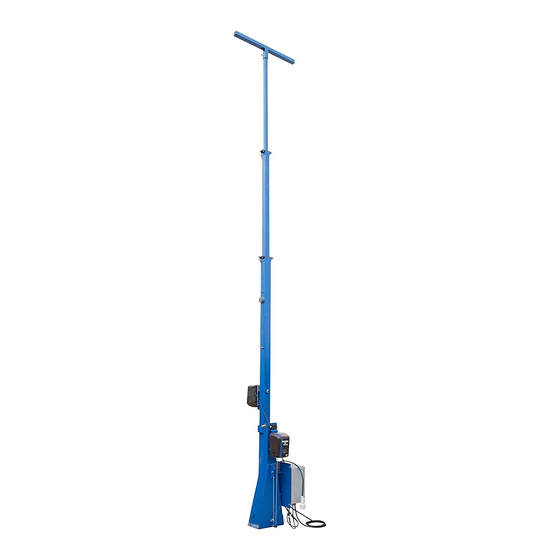

Larson Electronics LM-20-3S-EW-LV Instruction Manual

Instruction Manual
READ BEFORE USING OR INSTALLING!
Read instructions carefully before attempting to install the mast or operate
the mast winches. Failure to comply with instructions and guidelines could
result in serious or fatal injury, as well as void any warranty. Retain these
instructions for future reference.

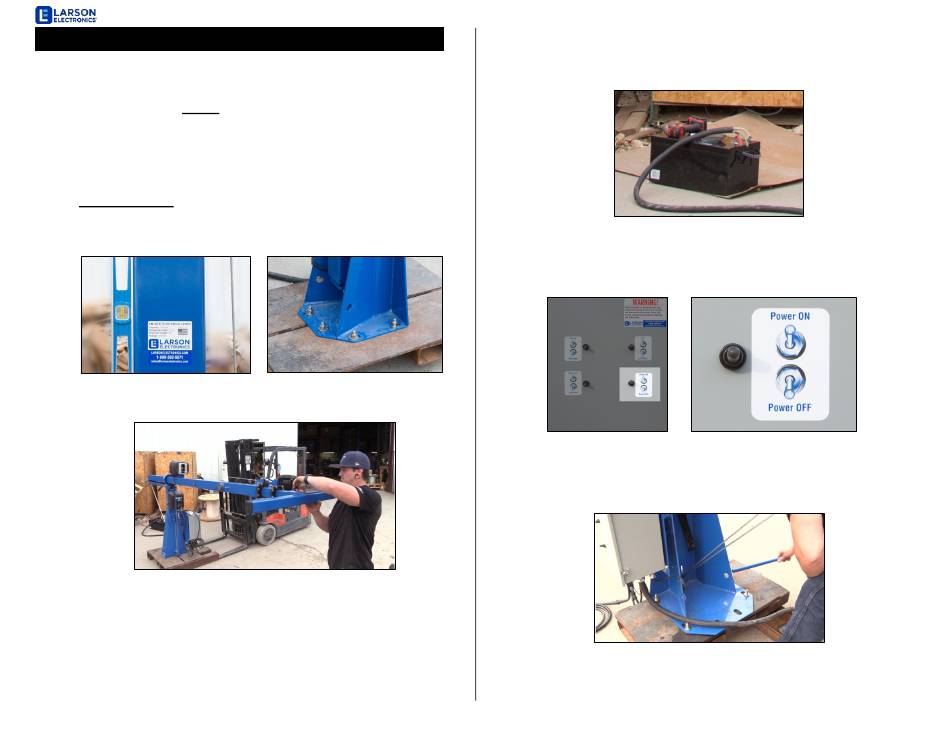

1. Position the unit in its desired location. Ensure that the unit is
completely level and then anchor the unit using the mounting holes
located at the bottom of the base. When picking a location, ensure
the mast is free and clear from any overhead obstructions.
2. Put the mast head on with customer provided equipment.
3. Once the mast head with customer provided equipment is installed,
you are ready to put power to the unit. This unit runs off of 12VDC.
The 12VDC must be constant. This unit has a provided line in.
LM-20-3S-EW-LV
Connect the white wire to your positive and the black wire to your
negative. The red and green wires are for customer use and are not
tied to any source in the control box.
4. You are now ready to use the unit. Locate the control box on the
side of the unit. The lower right switch controls the power to the
whole unit. Turn that switch to the up (on) position.
5. To fold the mast up in the vertical position:
•
Remove the mast retaining pin located at the bottom of the
mast.
Larson Electronics LLC
ver.0217-1
1
