Larson Electronics LM-21-9.1-4S-EW Manual

Larson Electronics LLC
9419 E US HWY 175, Kemp, TX 75143
Phone: 800.369.6671
21 Foot Telescoping Light Mast - 9' to 21' Stationary Four Stage Light Tower - 360° Rotating
Boom
LM-21-9.1-4S-EW
Please see last page for supporting documentation for this product(certificates, CAD files & drawings, IES
files, wiring diagrams, etc).

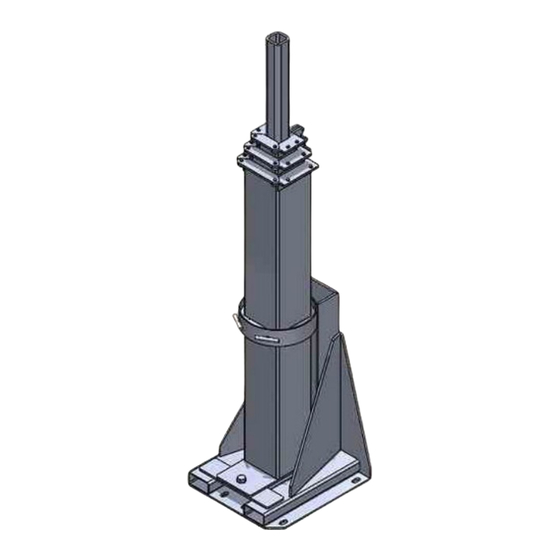

LM-21-9.1-4S-EW Four Stage Telescoping Light Tower
Length: 9.17` - 21.125`
Weight: +-1,200 lbs
Capacity: 1500 lbs
Materials: Steel
Finish: Powder Coated
Operation:1,500lbs Electric Winch
Winch Voltage:120V or 240V AC 50/60 Hz
Cable:1/4" Aircraft Cable
Mounting: 1/2" thick, 28"x28" Six Bolt Hole Bracket
Ancho Bolts:(6) 1" Anchor Bolts (not included)
Shipping: Common Freight
Shipping Dimensions:16.5`-L x 4`-W x 5`-H
Shipping Weight: +-2000 lbs
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements
The customer ships the failed light mast to Larson Electronics at their expense. If the failure
is a manufacturer defect, we will repair and/or replace the unit.
This unit is Made In USA - Manufactured in Texas
The Larson Electronics LM-21-9.1-4S-EW fixed mount 4-stage light mast provides a safe
and effective way for operators to quickly deploy lights, security cameras and other
equipment to elevations up to twenty-one feet. This stationary light tower features a
rotating boom that allows for 360° of rotation and a removable mast head for storing
mounted equipment when not in use.
*PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR
LIGHT TOWERS*
This telescoping three stage steel light mast from Larson Electronics' is designed
to allow operators to quickly and safely deploy lighting, cameras, and other
electrical equipment in locations where this equipment must be elevated to
heights up to 21` for effective coverage. This light boom can be extended to 21`
for maximum area coverage and collapsed to 9.1` for applications where a
footprint smaller is required. The tower is constructed of square steel tubing with a
lower section 6.18` in length and 10" by 10" by 3/8" thick, second section 6.27`
in length and 8" by 8" by 3/8" thick, third section 6.45` in length and 6" by 6" by
3/8" thick, and an upper section 8.45` in length and 4" by 4" by 1/2" thick. Each
section has 2` of overlap. The mast is extended to its full height via using an
