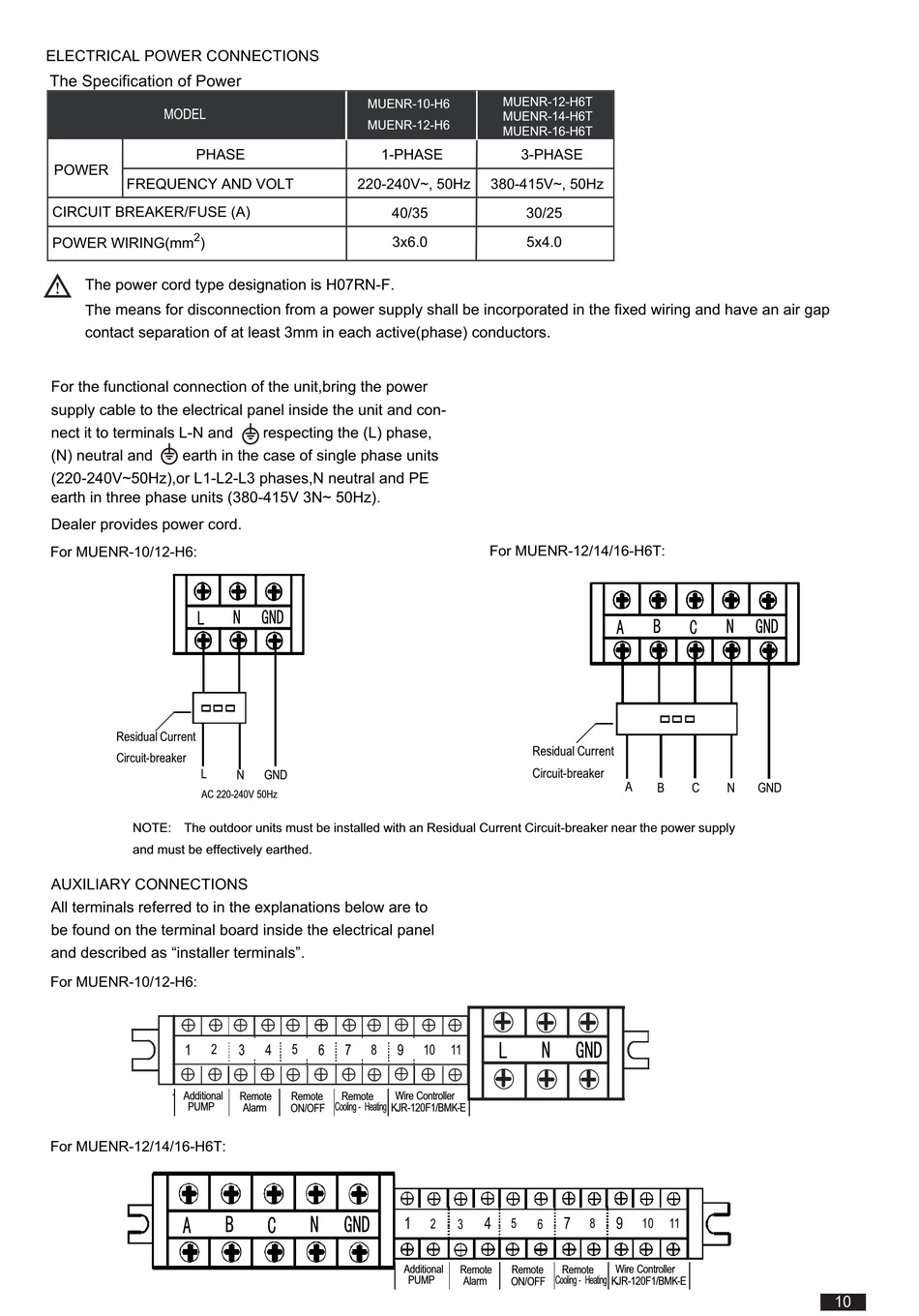

ELECTRICAL POWER CONNECTIONS
The Specification of Power
MODEL
PHASE
POWER
FREQUENCY AND VOLT
CIRCUIT BREAKER/FUSE (A)
2
POWER WIRING(mm
)
The power cord type designation is H07RN-F.
T he means for disconnection from a power supply shall be incorporated in the fixed wiring and have an air gap
contact separation of at least 3mm in each active(phase) conductors.
For the functional connection of the unit,bring the power
supply cable to the electrical panel inside the unit and con-
nect it to terminals L-N and
(N) neutral and
earth in the case of single phase units
(220-240V~50Hz),or L1-L2-L3 phases,N neutral and PE
earth in three phase units (380-415V 3N~ 50Hz).
Dealer provides power cord.
For MUENR-10/12-H6:
Residual Current
Circuit-breaker
L
AC 220-240V 50Hz
NOTE: The outdoor units must be installed with an Residual Current Circuit-breaker near the power supply
and must be effectively earthed.
AUXILIARY CONNECTIONS
All terminals referred to in the explanations below are to
be found on the terminal board inside the electrical panel
and described as "installer terminals".
For MUENR-10/12-H6:
1
2
Additional
PUMP
For MUENR-12/14/16-H6T:
MUENR-10-H6
MUENR-12-H6
1-PHASE
220-240V~, 50Hz
40/35
3x6.0
respecting the (L) phase,
N
GND
3
4
5
6
7
9
8
Wire Controller
Remote
Remote
Remote
ON/OFF Cooling - Heating K JR-120F1/BMK -E
Alarm
1
Additional
PUMP
MUENR-12-H6T
MUENR-14-H6T
MUENR-16-H6T
3-PHASE
380-415V~, 50Hz
30/25
5x4.0
For MUENR-12/14/16-H6T:
Residual Current
Circuit-breaker
10
11
4
7
2
3
5
6
8
Remote
Remote
Remote
ON/OFF Cooling - Heating K JR-120F1/BMK -E
Alarm
A
B
C
N
GND
9
10
11
Wire Controller
10
