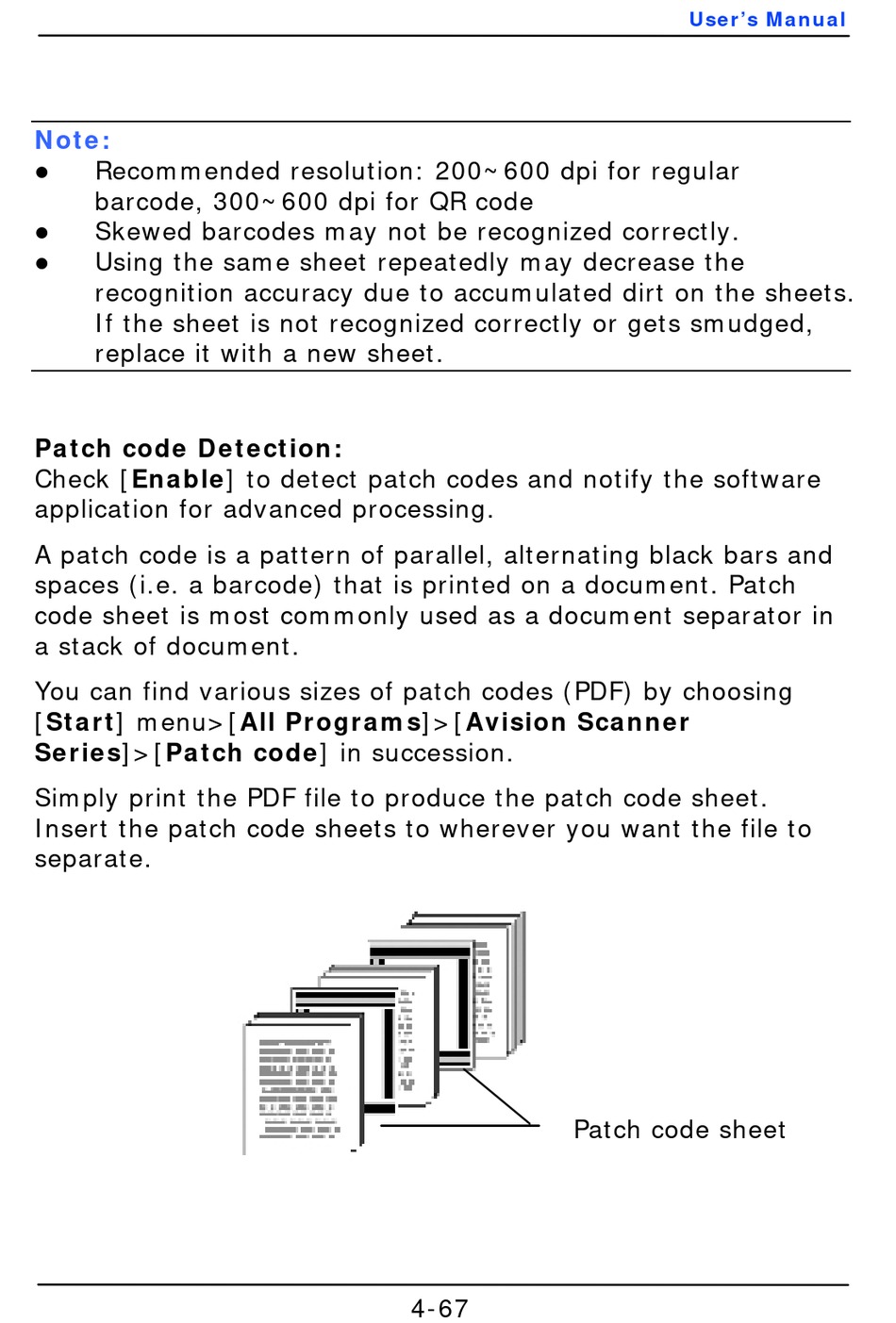

Avision FL-1313B User Manual page 100

N ot e :
Recom m ended resolut ion: 200~ 600 dpi for regular

barcode, 300~ 600 dpi for QR code
Skewed barcodes m ay not be recognized correct ly.

Using t he sam e sheet repeat edly m ay decrease t he

recognit ion accuracy due t o accum ulat ed dirt on t he sheet s.
I f t he sheet is not recognized correct ly or get s sm udged,
replace it wit h a new sheet .
Pa t ch code D e t e ct ion :
Check [ En a ble ] t o det ect pat ch codes and not ify t he soft ware
applicat ion for advanced processing.
A pat ch code is a pat t ern of parallel, alt ernat ing black bars and
spaces ( i.e. a barcode) t hat is print ed on a docum ent . Pat ch
code sheet is m ost com m only used as a docum ent separat or in
a st ack of docum ent .
You can find various sizes of pat ch codes ( PDF) by choosing
[ St a r t ] m enu> [ All Pr ogr a m s] > [ Avision Sca n n e r
Se r ie s] > [ Pa t ch code ] in succession.
Sim ply print t he PDF file t o produce t he pat ch code sheet .
I nsert t he pat ch code sheet s t o wherever you want t he file t o
separat e.
Pat ch code sheet
4- 67
Use r 's M a n u a l
