RMC4
4-Series™ Control System

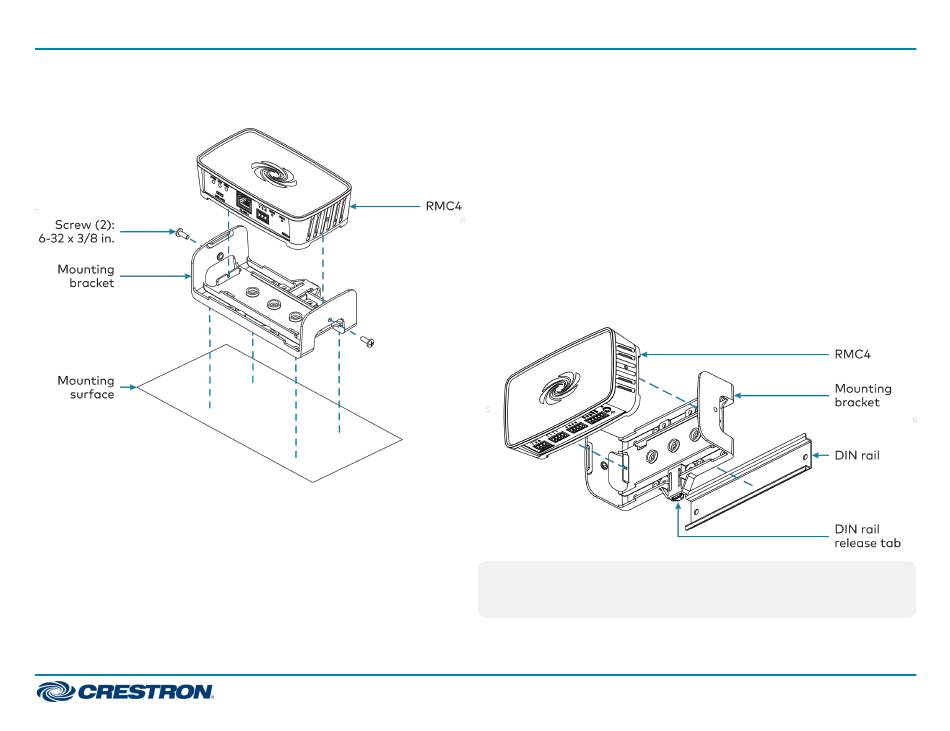

5. (Optional) Secure the RMC4 to the bracket using the two included
6-32 x 3/8 in. screws as shown in the following illustration.
DIN Rail Mounting
1. Detach the RMC4 from the mounting bracket by pulling the left and
right flanges of the bracket outward to release the tabs that hold the
RMC4 in place.
2. Pull the DIN rail release tab downward using a flat-head screwdriver.
3. Position the DIN rail mounting tabs (located on the rear of the
bracket) over the top edge of the DIN rail.
4. Push the DIN rail release tab upward to lock the mounting bracket
onto the rail.
5. Align the slots on the bottom of the RMC4 with the tabs on the
mounting bracket.
6. Press the RMC4 into the bracket until it snaps into place.
NOTE: Do not use the included screws to secure the bracket to the
bottom of the RMC4 when mounting into a DIN rail, as it will then not be
possible to remove the RMC4 from the DIN rail.
