Crestron 4 Series Quick Start Manual

MC4-R/MC4-R-I

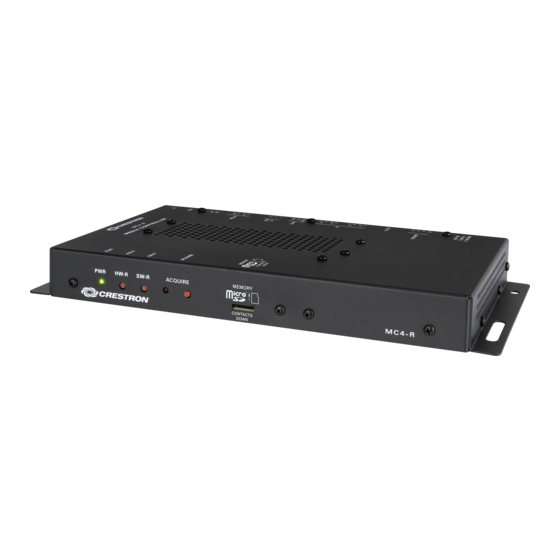

The Crestron® MC4-R and MC4-R-I
provide secure, high-performance, cost-effective control processors and
interfaces with the embedded Crestron Home™ operating system. Their
small form factor and versatile mounting options make them ideal for
smaller Crestron Home systems such as single-room systems, small to
medium-sized homes, and MDUs (multidwelling units). The
control system includes a built-in infiNET EX® and ER wireless gateway
for acquiring wireless devices as well as numerous control ports for
controlling wired devices.
NOTE: The MC4-R and MC4-R-I are functionally similar. For simplicity
within this guide, the term "control system" is used to refer to both
the MC4-R and MC4-R-I unless otherwise noted.
In the Box
1 MC4-R or MC4-R-I, 4-Series Media Room Controller
Additional Items
1 Rack Ear, Left (2053897)
1 Rack Ear, Right (2053896)
4 Nut, 10-32 (2004889)
1 Antenna, Dual Band, 2.4/5.8 GHz (2052945)
1 Cable, CAT5e, Patch, 5 ft (1.52 m) (2022311)
2 Connector, 3-Pin (2003575)
4 Connector, 4-Pin (2003576)
4 IR Emitter with Terminal Block Connector (4500152)
4-Series media room controllers
Install the Device
The control system may be mounted into a rack or onto a flat surface.
Rack Mounting
The control system occupies 1U of rack space when using the provided
rack ears.
1. Attach the rack ears to the device:
a. Insert the two threaded posts on the left rack ear up and into the
front opening in the left mounting flange of the control system.
Repeat this step for the right rack ear.
b. Attach the four provided nuts to the threaded posts to secure the
rack ears to the control system.
Quick Start
1
