AV4
4-Series™ Control System

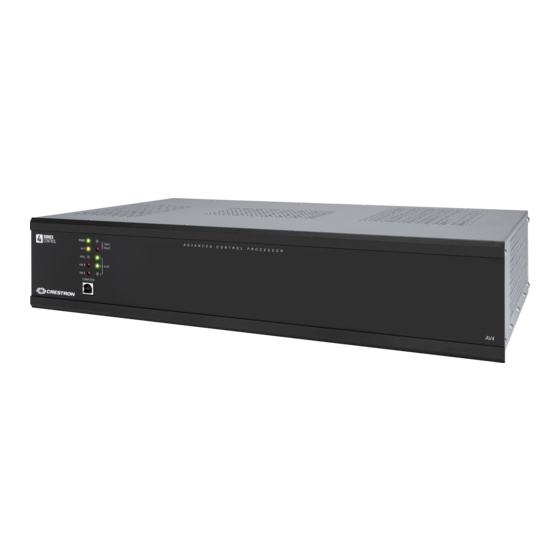

The Crestron®
AV4
is a secure, high-performance control processor with
a powerful 4-Series™ control engine. The AV4 is designed to integrate
and automate technology within any modern networked home,
commercial building, or government facility. Isolated Control Subnet
ports provide a Gigabit Ethernet LAN dedicated to Crestron devices.
In the Box
1
AV4, 4-Series™ Control System
Additional Items
2
Bracket, Rack Ear (2032678)
4
Foot, Rubber (2002389)
4
Connector, 3-Pin (2003575)
1
Connector, 4-Pin (2003576)
2
Connector, 5-Pin (2003577)
4
Connector, 8-Pin (2003580)
1
Connector, 9-Pin (2003581)
1
Power Cord, 6 ft, 7 in. (2.01 m) (2001134)
Install the Control System
The control system may be mounted into a rack or placed onto a flat
surface.
Rack Mounting
The control system occupies 2U of rack space.

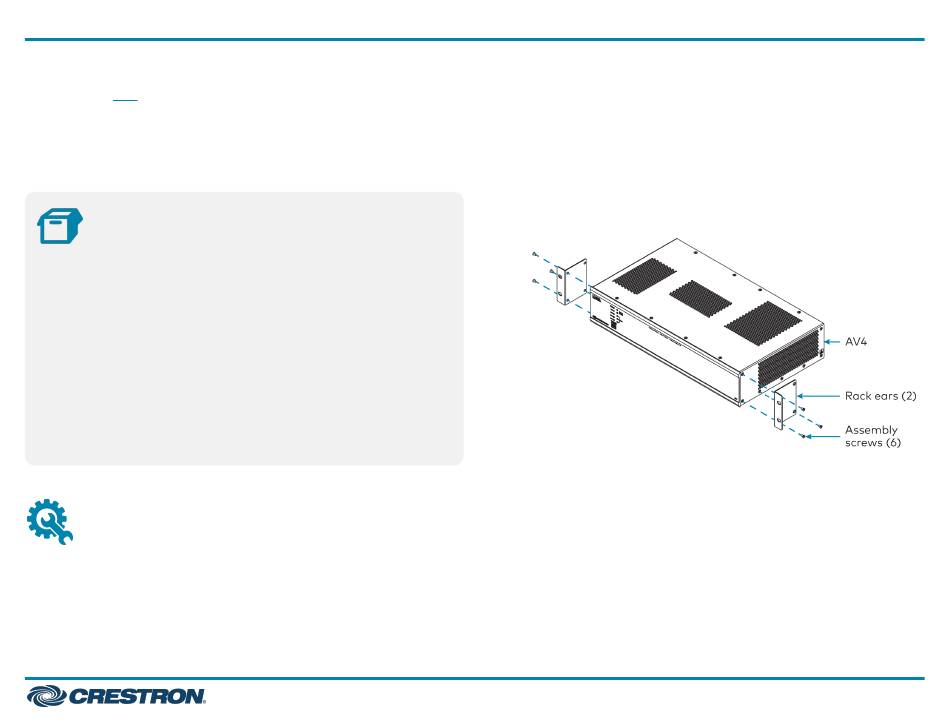

1. Use a #1 Phillips screwdriver to remove the six assembly screws
shown in the illustration below from the control system assembly.
2. Attach the two included rack ears with the removed assembly
screws.
3. Mount the control system into the rack with four mounting screws
(not included).
Surface Placement
1. Attach the four adhesive rubber feet near the corners on the
underside of the control system.
2. Place onto a flat surface or stack with other equipment.
1
