Summary of Contents for Evikon PluraSens E2660-CO-CO2

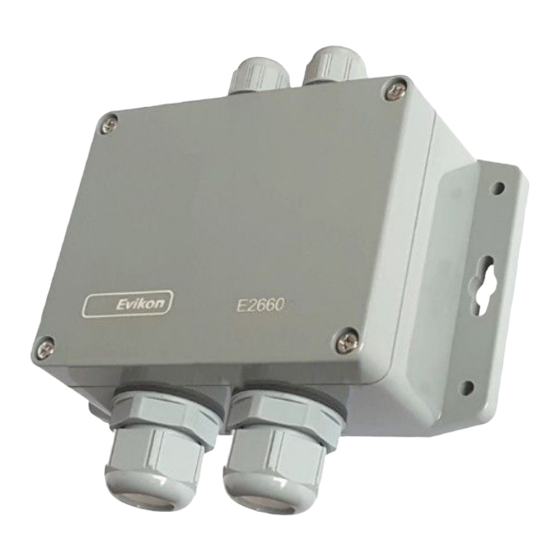

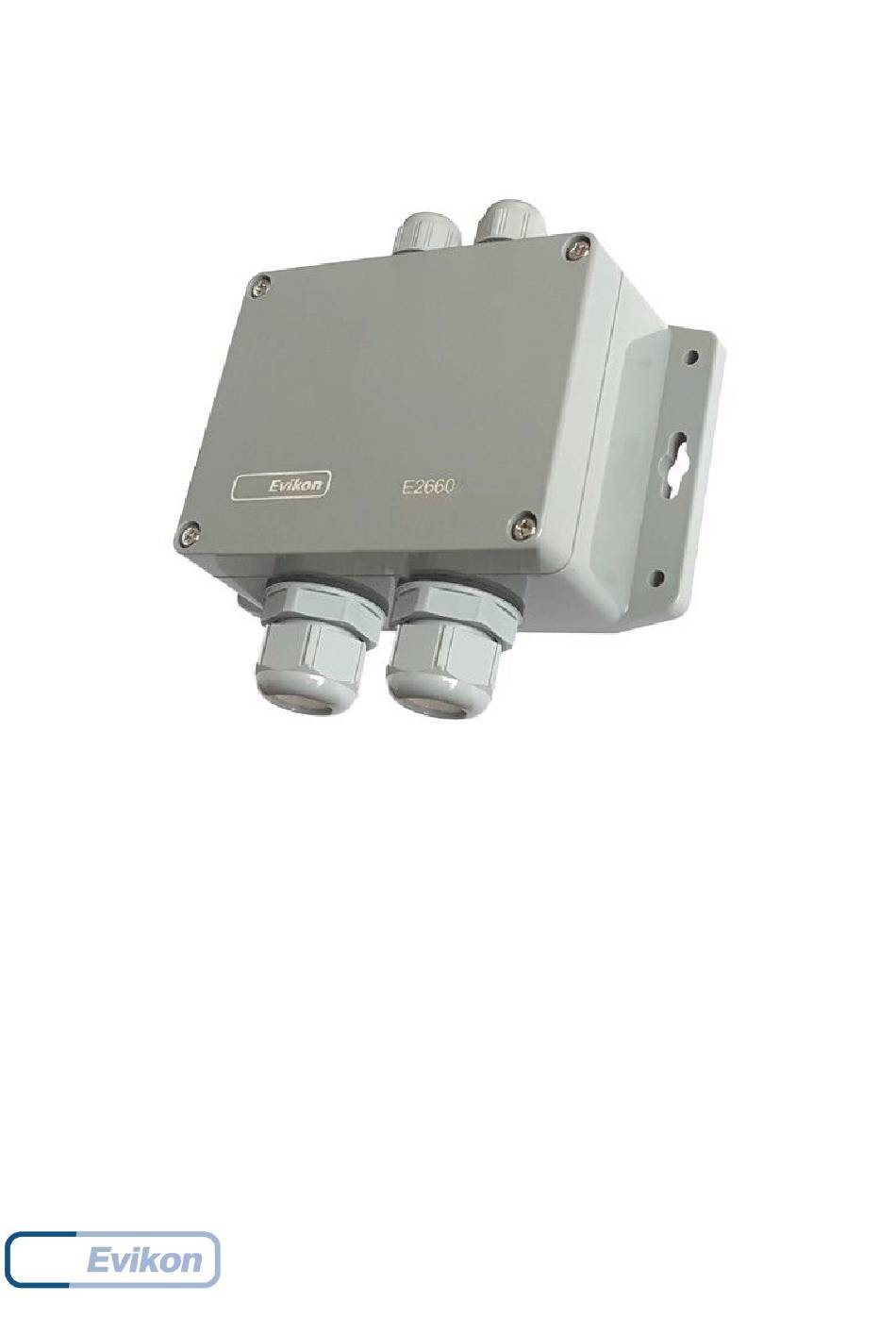

- Page 1 PluraSens ® Dual Gas Transmitter E2660-CO-CO2 User Manual ...
-
Page 2: Table Of Contents
E2660-CO-CO2 Rev 14.12.2020 Table of contents Carbon Monoxide 3 Carbon Dioxide 4 Specifications 5 Product description 7 Safety requirements 7 Operating conditions 8 Installation guidelines 8 Mounting dimensions 9 Sensor probe handling 10 Gas sensor replacement procedures 10 Electrical connections 11 ... -
Page 3: Carbon Monoxide
E2660-CO-CO2 Rev 14.12.2020 Carbon Monoxide Carbon Monoxide is a colorless, odorless, and tasteless gas that is highly toxic. Synonyms: Carbonous oxide, Carbon (II) oxide, Flue gas, Monoxide. Chemical formula CO Molar weight 28 Relative gas density (to air) 0.97 Conversion 1 ppm = 1.15 mg/m... -
Page 4: Carbon Dioxide
E2660-CO-CO2 Rev 14.12.2020 Carbon Dioxide Carbon dioxide is a colorless, odorless, non-toxic, and non-flammable gas that is present in the Earth's atmosphere at a low concentration. Chemical formula ... -
Page 5: Specifications
E2660-CO-CO2 Rev 14.12.2020 Specifications Sampling method Diffusion Detected gas CO CO Sensor type Electrochemical cell Optical (NDIR) Typical detection range 0...300 ppm 0...10 000 ppm Resolution / digital unit 1 ppm 1 ppm Response time T90 < 30s 2-3 minutes Sensor lifetime ... - Page 6 E2660-CO-CO2 Rev 14.12.2020 Other options Protection IP65, default cable length 3.0 m; Remote probe max height 80 mm, max diameter 65 mm 6 ...
-
Page 7: Product Description
E2660-CO-CO2 Rev 14.12.2020 Product description Dual Gas Detector-Transmitter E2660R-CO-CO2 belongs to the PluraSens® family of multifunctional measurement instruments. The device is intended for simultaneous ... -
Page 8: Operating Conditions
E2660-CO-CO2 Rev 14.12.2020 Operating conditions The device should be used both in a non-hazardous area, at the pressure 0,9...1,1 atm and relative humidity in the range 15...90%, and in a basic electromagnetic environment, where ... -
Page 9: Mounting Dimensions
E2660-CO-CO2 Rev 14.12.2020 Mounting dimensions 9 ... -
Page 10: Sensor Probe Handling
E2660-CO-CO2 Rev 14.12.2020 Sensor probe handling The E2660 series devices are available with a remote probe. The remote probe is connected to the main unit with a shielded cable. The default connection cable length is 3 ... -
Page 11: Electrical Connections
E2660-CO-CO2 Rev 14.12.2020 Electrical connections Unscrew four lid screws and detach the lid from the device. Use the M16 cable gland to let ... - Page 12 E2660-CO-CO2 Rev 14.12.2020 The screwless quick connect spring terminals on the E2660 series devices are suitable for 2 a wide range of wires with a cross-section of 0.2...1.5 mm ...
-
Page 13: Operation
E2660-CO-CO2 Rev 14.12.2020 Operation Turn on the power. The instrument warm-up time takes about 1 minute after switching on and the final sensor stabilization time to maximum accuracy takes about 5 minutes. The ... -
Page 14: Delivery Set
E2660-CO-CO2 Rev 14.12.2020 Delivery set Detector-transmitter E2660-CO-CO2 ● ● Mounting accessories: ○ 4 screws with plastic dowels ○ Fixing clamp for remote probe versions Order code for E2660-CO-CO2 options E2660 options Order code Remote probe, 3 m cable E2660-CO-CO2-RP33-3 ... -
Page 15: Configuring
E2660-CO-CO2 Rev 14.12.2020 Configuring A standard configuration kit includes a USB-RS485 converter, fixed flow regulator, gas tubing with applicators, and a software pack. Please contact your Seller for more ... -
Page 16: Modbus Rtu Communication
E2660-CO-CO2 Rev 14.12.2020 Modbus RTU Communication RS485 communication interface Databits: 8 Supported Modbus functions: Parity: none / odd / even 03 – Read multiple registers Stop bits: 1 or 2 06 – Write a single register Protocol: Modbus RTU ... - Page 17 E2660-CO-CO2 Rev 14.12.2020 0x0006 6 / 40007 RW Response delay, ms 1...255 10 1 – No parity bit, 1 stop bit (default after factory reset) 2 – No parity bit, 2 stop bits 3 – Odd parity, 1 stop bit 0x0007 ...
- Page 18 E2660-CO-CO2 Rev 14.12.2020 state set in MHR / 40214 0 – none 2 – gas concentration Parameter tied to relay 0x00D4 212 / 40213 RW 9- – control by Modbus 2 RE2 control, state set in MHR / 40215 Forced state for relay 0x00D5 ...
- Page 19 E2660-CO-CO2 Rev 14.12.2020 HIGH 222 / see 0x00DE RW 0...65535 (gas units) setpoint for Specifications 40223 relay RE1 LOW 223 / see 0x00DF RW 0...65535 (gas units) setpoint for 40224 Specifications relay RE2 HIGH 224 / see 0x00E0 RW setpoint for 0...65535 (gas units) ...
- Page 20 E2660-CO-CO2 Rev 14.12.2020 syncing off/on with RE2 257 / Raw 1st gas sensor 0x0101 R 0...4095, ADC units 40258 data 259 / signed integer, -32000...+32000 0x0103 R 1st gas concentration 40260 (gas units) 261 / 0% value ...
-
Page 21: Warranty
unauthorized modification. Manufacturer contacts Evikon MCI OÜ Teaduspargi 7/9, Tartu 50411 Estonia info@evikon.eu www.evikon.eu 21 ...
