Honeywell Home TUXEDOW Quick Installation Manual

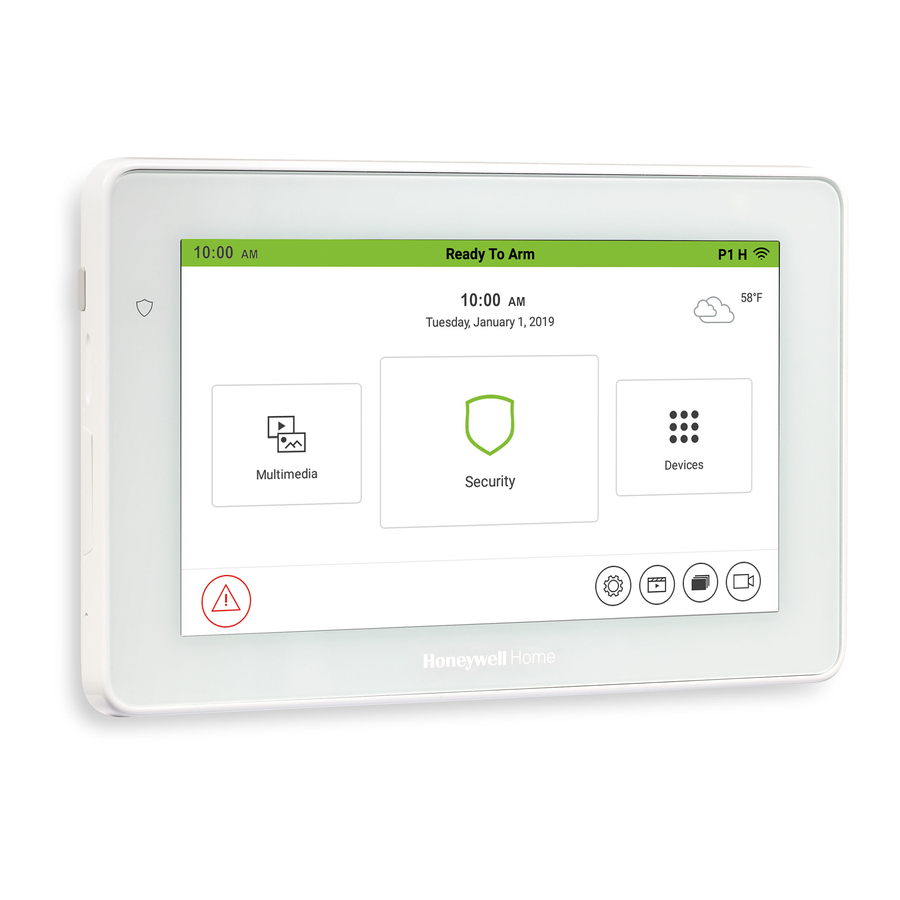

TUXEDOW Home Automation and Security System
Full Installation Guide [Part Number 800-25176] available online at: https://mywebtech.honeywellhome.com
To reset the Touchscreen, press and hold the side Power Button for 3 seconds and then press on the "Press here to Reset" message on the screen to start the reset function. The Touchscreen can also be
reset by pressing and holding the reset button for approximately 15 seconds until the touchscreen resets automatically.
TOUCHSCREEN INITIALIZATION
When initially powered, the boot sequence starts and is followed by six setup steps.
1. Operation Mode Selection: Select Normal Mode, Safe Mode, Demo Mode, or Automation
Mode to turn the option on or off.
2. Set ECP Address/RIS Automation Address: If using one Touchscreen, leave the address set to 1
and select Apply. If using more than one, power-up each Touchscreen one at a time, and set each
Touchscreen address to one of the addresses enabled in the control panel. If using Remote
Services, set the RIS Automation Address to the appropriate RIS address used for Total Connect
2.0.
3. Honeywell Home End User License Agreement: Review and accept the agreement.
4. Network (Wi-Fi) Setup: Select the Wi-Fi network and enter the passphrase/shared key or touch
Skip Setup and Remind in 2 hrs.
5. Important Operation Information: Enter the User's Name, Tuxedo Name, Region, Mobile No., Zip
Code and Email Id.
6. Remote Login: enter the User name and password for local access through a web browser.
SYSTEM INFORMATION & UPGRADES
To view the current software version installed, Interface name and MAC Address, select
Setup → System Info .
Software upgrades may be available. Check the box that says "Enable Remote Upgrade" for over the
air (OTA) updates (requires network connection).
OTA is initiated by AlarmNet 360. When the OTA screen appears on the TUXEDOW, the user can
accept, reject or postpone the download process. If accepted, the download process starts, and a
message is shown in the upper left corner of the screen. If rejected the process never starts. If
postponed a dialog box will show in the upper left showing the user to click the box to start the
download process.
After download is completed the user must then accept, reject or postpone the download from being
installed. Reject and postpone are the same as above. If accept is pressed the TUXEDOW starts the
updating process; once done the TUXEDOW resets.
ECP ADDRESS
If the screen is displaying "ECP Error," the address is not valid for the control it is connected to, the
ECP address in the Touchscreen is not valid for the panel that it is connected to. In this case, to
change the ECP Address, enter the default code of "4140" to advance to the next screen.
Note: Default code "4140" is the TUXEDOW default installer code before connecting to a control panel.
Once connected to a control panel, use that panel's installer code.
1. Select Setup →System Setup
2. Enter an Authorized Code, if required.
3. Select ECP Address ; enter an ECP Address. Available ECP Addresses are:
1-2, 5-6 .............. for residential controls
1-30 ................... for commercial controls; supports 6 AUIs.
4. Select the Back arrow to return to the previous screen. Select
DISARMING THE SYSTEM AND SILENCING ALARMS
To silence Alarms or Trouble conditions: enter your 4-digit user code, select the Clear button,
then enter your 4-digit user code again.
To test the Alarm, select the Security
- Select Console Mode and refer to the Control Panel User Guide for procedure.
DISPLAY & AUDIO SETUP
1. Select Setup ; slide the Brightness / Volume bar to adjust settings.
2. Select Setup → Disp & Audio Setup
- To adjust the screen timeouts, select a time interval from the drop-down list for each option
(Backlight Off After, To Homepage After, Auto Slideshow After, and Temperature Unit.)
- Select Chime, Voice or Voice Chime operating mode.
- To clean the Touchscreen screen, select the Clean Screen icon; select Continue, or select
Cancel to exit.
- Select to save changes. Select the Back arrow to return to the previous screen.
USER SETUP
1. Select Setup → System Setup
2. Select and enter a User name and enter an Authorized Code for this user. Select each field
and enter the appropriate information.
3. Select to save the user information or select Back
For available user numbers, see control panel instructions.
TIME & DATE
1. Select Setup → System Setup
2. Enter an "Authorized Code".
a) If Get Time is selected, the Touchscreen downloads the time/date from the control panel and
exits the "Set Time" screen. (The Get Time icon appears with residential panels and may not
appear with all commercial panels.)
b) Or, set the time/date from the Set Time/Date screen. Use the slide bar to scroll and select each
value.
3. Select to save: A message displays "Time Setting Confirmation", select Yes or No.
SCREEN SECURITY
See the full Installation Guide for user Authority Levels.
1. Select Setup → System Setup
2. Enter an Authorized Code; select the Screen Security
- To make changes, select the line to change and the level of user to have access, and then
select to save changes.
CODE AUTHORITY
1. Select Setup → System Setup → CS Setup.
2. Select Code Authority .
3. Enter the 4-digit Code for the user you want to obtain authority level information about.
PANEL CONFIGURATION
1. Select Setup → System Setup → CS Setup.
2. Enter an Authorized Code and select Panel Config
and reload the panel configuration into the Touchscreen.
NIGHT SETUP (If the control panel supports if)
The NIGHT function can be set to arm the system in one of five arming modes. To change the arming
mode;
1. Select Setup →System Setup → Advanced Setup.
2. Enter an Authorized Code.
3. Select Night Setup; select desired mode:
Away - Stay - Instant (default) - Night (Residential Panel Only) – Maximum.
4. Select to save changes.
EMERGENCY MESSAGES
1. Select the PANIC Icon. Press and hold (for at least 2 seconds) the associated alarm icon (FIRE,
POLICE or MEDICAL).
→ CS Setup .
to save changes.
and More Choices icons.
; enter an Authorized Code.
→ User Setup .
arrow to return to the previous screen.
→ Time/Date Setup .
→ CS Setup .
icon.
. Select to clear the Touchscreen
Quick Installation Guide
Select the
MULTIMEDIA
NOTE: Micro SD card max size is 64GB and must be FAT32, SDXC format. Recommended is Kingston or
Samsung.
Picture Setup: Insert media card (Micro SD/SDHC) with stored (.bmp, jpg, png or .jpeg) photos.
1. Select the Multimedia
2. Select a photo and select Play
3. To set a picture as wallpaper, select the Default/Wallpaper folder to activate.
4. Select the Picture Info icon
Video Setup: Insert media card (Micro SD/SDHC) with stored video files. Supported video playback
formats are (avi, .ts, .mpg, .mp4, .mov, .mkv, or .flv).
1. Select the Multimedia
2. Select Play to start the selected video file.
3. Select the Video Info
Camera Setup: See the full installation Guide for further information.
• If using existing (mounted) cameras; go to Step 4.
• For first time setup, scan/configure the cameras prior to mounting, and do the following:
1. Connect an Ethernet cable to the back of the camera (LAN); connect the opposite end to the Ethernet
Port on the router. Follow the camera's installation instructions.
2. Apply power to the camera; wait for initial power-up.
3. Select Camera .
4. Select Camera Discovery to locate the camera. The screen displays: "Discovering Cameras..."
5. Select the Add icon if the camera information is not automatically located, to enter information manually.
6. To edit camera information, highlight the camera name and select the Edit icon. Enter required information
and then select the Save icon.
a) To retrieve camera settings and connect to the camera, select the Connect icon.
b) Select TOTALCONN icon to reset the camera for remote viewing and activate a Total Connect account.
c) Select Reset to reset the camera to factory default. Select Yes or No.
7. When all cameras have been added, select Wireless Settings and enter the wireless information from
the router.
8. Select Apply to All to set cameras to wireless operation and control the Security System, local Z-Wave
devices and view local cameras from your browser. If the camera does not have wireless capability,
leave the camera connected to the router.
Use the icons to: Delete → Play → Stop → Refresh → Auto Pan → Full View → Pan/Tilt → Back.
Wi-Fi SETUP & WEB BROWSER
The TUXEDOW Keypads IP Address is used on a standard web browser to control user functions such as
Security, Z-Wave operation, and camera viewing. See Full Installation Guide for supported browsers.
NOTE: Supports 2.4GHz and 5GHz frequencies
1. To connect to a Wi-Fi network, select Setup
the list to connect to. Or, select
SSID No. and Security type; then select Connect.
2. Select the Setup
Screen. Enter the IP Address on the keypad into a PC, Smart Phone or Tablet Browser.
3. For Remote Access, select the Account
higher security) when viewing from a web enabled device or PC on a different sub-net. Enter the
required information for each field.
AUTOMATION - DEVICES
If using two keypads, see Full installation Guide section "Secondary Keypad" (Controller).
Include a Z-Wave Light, Switch, or Outlet Module:
1. Install device according to the manufacturer's instructions.
2. Select Devices
3. Select the Function Key on the device; follow the keypad's on-screen messages until "Device added
successfully".
Include a Door Lock:
1. Assemble the Z-Wave door lock according to the manufacturer's instructions.
Be sure the door lock orientation/handedness is correct.
2. Refer to Door Lock's Instruction Guide and connect necessary cables, then install batteries.
3. Add the door lock within 5 feet of the keypad; refer to the Door Lock's Instruction Guide for procedure.
NOTE: Program a 4-digit user code in the control panel prior to programming that user code into the door
lock.
4. Select Devices
5. Program the selected user code from the panel.
Include a Resideo Z-Wave Thermostat:
1. Install thermostat according to the manufacturer's instructions. Inclusion procedure may vary. Refer to
the Thermostat instructions.
2. On the Honeywell thermostat select Thermostat; set the "Time/Date" and follow the instructions in the
thermostat Installation Guide for including into the network.
3. To complete, select Done.
4. Select Exit to return to normal operation.
5. To verify activation: on the TUXEDOW Keypad, select Back; wait 30 seconds. Select Refresh; the new
device is displayed. See Installation Guide to Exclude/Edit/Abort Z-Wave devices.
Include a Resideo Wi-Fi Thermostat
1. Select Devices
2. Enter the Total Connect Comfort Account User Name, and Password.
Defaulting the Z-Wave Controller
1. Select Devices
2. Press Yes to default the Z-Wave controller or No to cancel.
NOTE: Please use this procedure only when the network primary controller is missing or otherwise
inoperable.
SCENE SETUP
The Scene feature is used to control a single device, or multiple devices based on pre-set "Conditions,"
"Triggers," and "Actions." When a trigger/condition occurs, the defined action is executed.
1. Select Devices → Scene
2. Select Users Scene; enter a SCENE NAME and select OK.
3. Add the "Condition," "Trigger," and "Action" that you want to occur for this Scene.
4. After each selection select Save !!
Note: Determine if you need a Condition. The Condition is a 'condition' set to occur prior to a trigger event.
See example below.
Example: Turn the lights on when the system disarms, but only at night.
(Condition) ... "only at Night" ....Set the TIME Condition (enter the Start/Stop Time and Days).
(Trigger) ... when the "system Disarms" ...Set the Trigger to SECURITY: System Disarm
(Action) ...Turn the "lights ON"
Scene Rules
• Triggers & Conditions include: Time, Security, Thermostat, Door, Garage Door, Water Valve.
• Actions include: Security, Lights On/Off, Thermostat, Door, Garage Door and Water Valve.
• Each Trigger event can have up to 3 Actions.
• A Trigger event and Condition cannot be the same (i.e., if setting a Trigger event for SECURITY, you
cannot set a SECURITY Condition).
icon to access the Introduction and Training Videos.
and Picture icons and then select a Picture folder to view.
to view pictures in a slide show format.
to view picture information.
and Video icons and then select the Video folder to view.
icon to view video information.
→System WIFI
to add a new Network connection. Enter the new Network name
and System Info icons; the IP Address is displayed on the System Information
icon to create a browser log-on page for each user (for
→ Setup → ADD DEVICE.
→ Setup ADD DEVICE.
→ Thermostat .
→ Setup → MORE → Z-WAVE DEFAULT
→ Add.
... Set the Action to LIGHT: ON.
and select a Wi-Fi network from
