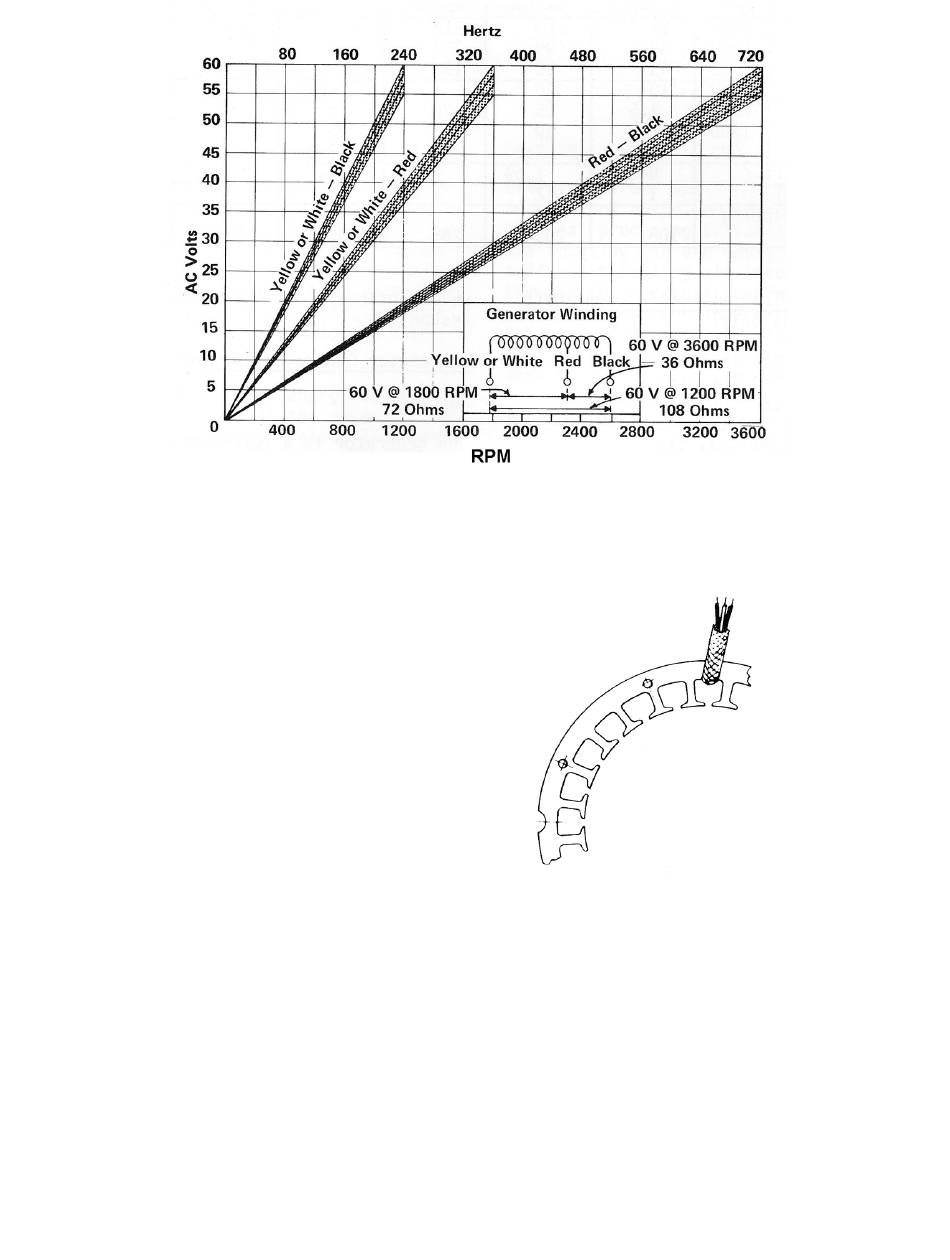

G-2 Generator Specifications Figure 2-2
the magnet be necessary for remagnetization or
repairs, the entire operator assembly should be
returned to the factory.
Description
The generator if used, is a separately mounted type
generator that is contained within its own housing
and is driven by appropriate pulleys and belts from
the shaft.
A specific volts per RPM is not essential. Correct
adjustment of the controller (see your operating
instructions) Alnico Stator will compensate for wide
variance in generator output.
Alnico Stator Lamination Assy. Figure 2-3
