DSI Dynamatic AS-703 Instruction Manual page 25

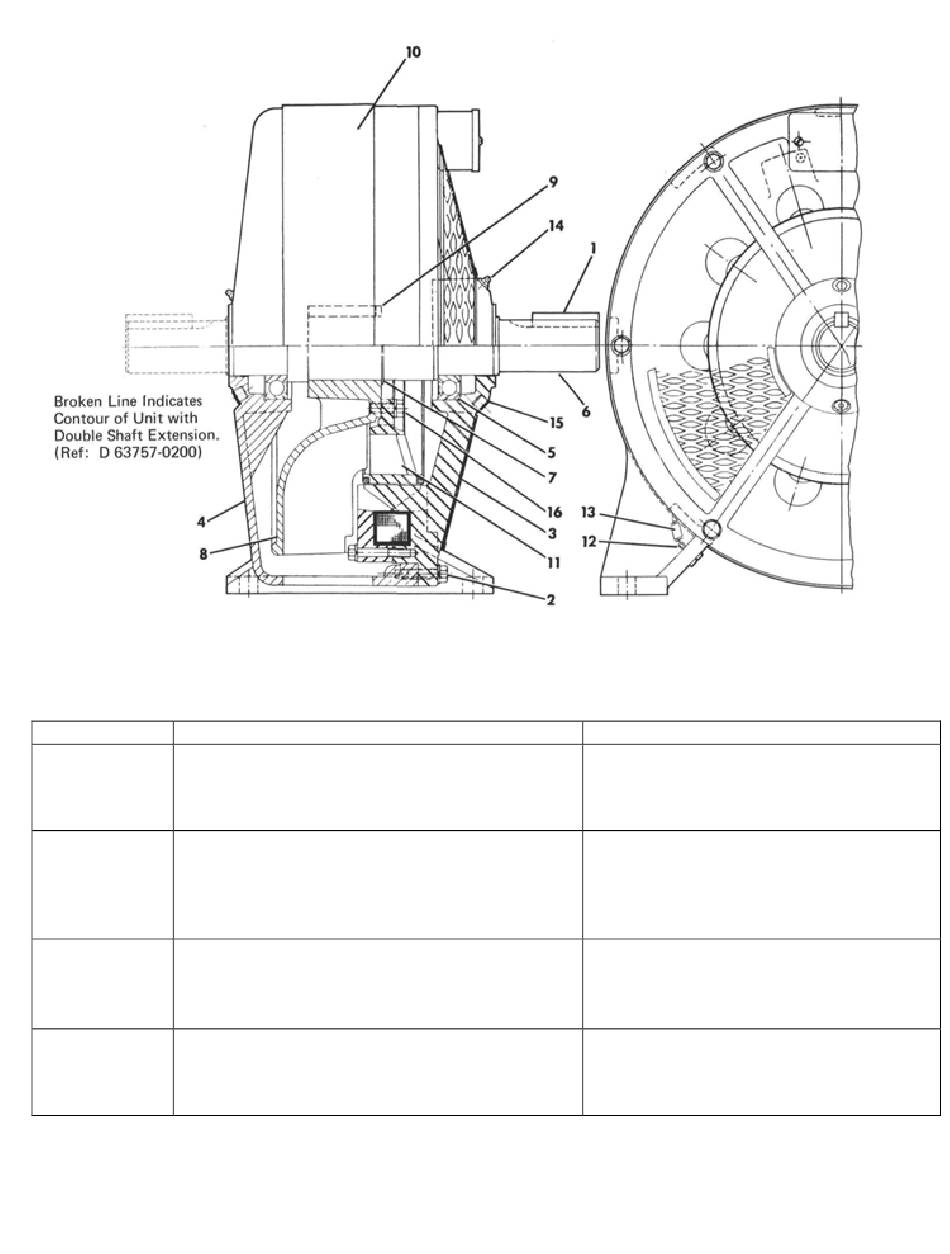

Typical Cross Section Drawing – AS-705
Model AS-705 Parts List
Item No.
1 Key
2 Cap Screw, Lockwasher
3 Field Assembly
4 Housing
5 Bearing
6 Shaft (double shaft extension)
7 Retaining Ring
8
Fan
9 Key
10 Screen
11 Rotor
12 Cotter Pin
13 Spring
14 Grease Fitting
15 Pipe Plug
16 Cap screw, Lockwasher
25
Description
(single shaft extension)
Figure 5-3
DY-216
DY-187, DY-4771
C-63755-(See Master Bill)
D-63756-0100
DY-196
C-32284
C-34902
DY-6297
D-32283
DY-272
A-32309-0300
D-27379-0100
DY-340
A-18973
DY-1336
DY-4525
DY-17, DY-18
Table 5-3
Part Number
Ref.: D-63757
