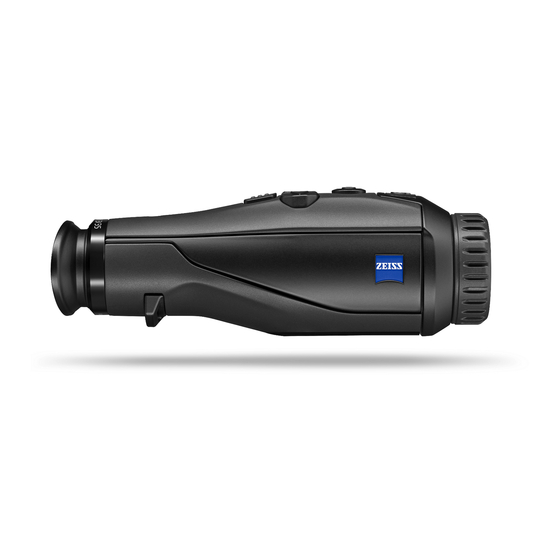

Zeiss DTI 3/35 Instructions For Use Manual
Hide thumbs
Also See for DTI 3/35:
- Instructions for use manual (200 pages) ,
- User manual ,
- User manual (201 pages)
Table of Contents
Related Manuals for Zeiss DTI 3/35
Summary of Contents for Zeiss DTI 3/35
- Page 1 ZEISS DTI 3/35 Instructions for use For United States patents which may cover this product see our website. Patents: www.zeiss.com/cop/patents DE EN FR ES IT NL CZ DK EE FI HR HU LT LV PL PT RO SK SL SV GR BG RU JP CN | 08.2020...
- Page 2 Installing/removing the battery • If the device has been damaged or the battery is defective, send the device to our The ZEISS thermal imaging camera DTI 3/35 is equipped with a battery. It cannot be after-sales service for repair. removed.
-
Page 3: Attaching The Carrying Strap
TECHNICAL DATA DTI 3/35 Attaching the carrying strap Optics Focal length 35 mm/F1.0 Lens type Germanium Detection range 1,235 (1,350) m (yd) (object size) 1.8 x 0.6 (2 x 0.7) Subjective angle of view ° (diagonal) Field of view at 100m... -
Page 4: Power On/Off
(12) (13) (14) (15) (11) (11) (10) (10) Power on/off Observation mode Press the on/off button (5) for a longer time to switch on the device. The LED (9) is Look through the viewfinder (10) to observe the scene. Turn the diopter adjustment (11) green. -
Page 5: Auto Calibration
Shooting mode The arrow buttons (7) and the menu button (8) are used to navigate in the main menu. You have the possibility to take photos and videos. Press and hold the Shutter Press the right arrow button (7) to scroll down. Press the left arrow button (7) button (6) to switch between the two shooting modes. -
Page 6: Language Settings
Reset the date and time so that your images and videos get a correct timestamp. Firmware update A firmware update can be carried out using the ZEISS Hunting App. Follow Factory reset the instructions for this in the ZEISS Hunting App. -
Page 7: Troubleshooting
Note: To use the ZEISS Hunting App and its functions, ensure that your smartphone is connected to the ZEISS DTI 3/35 WLAN network. Note: Every time you connect to the ZEISS Hunting App, the current date and time are automatically transferred from your smartphone to the device. -
Page 8: Legal And Regulatory Information
Daping Community, Guanlan Street Longhua District Shenzhen P.R. China ZEISS is a byword for reliability and a high level of quality. Therefore, quite independently Model identifier: SK22G-0500200Z of the seller‘s warranty obligations to the customer, we the manufacturer offer a two year warranty on this ZEISS product, which can be extended for a further year upon...
