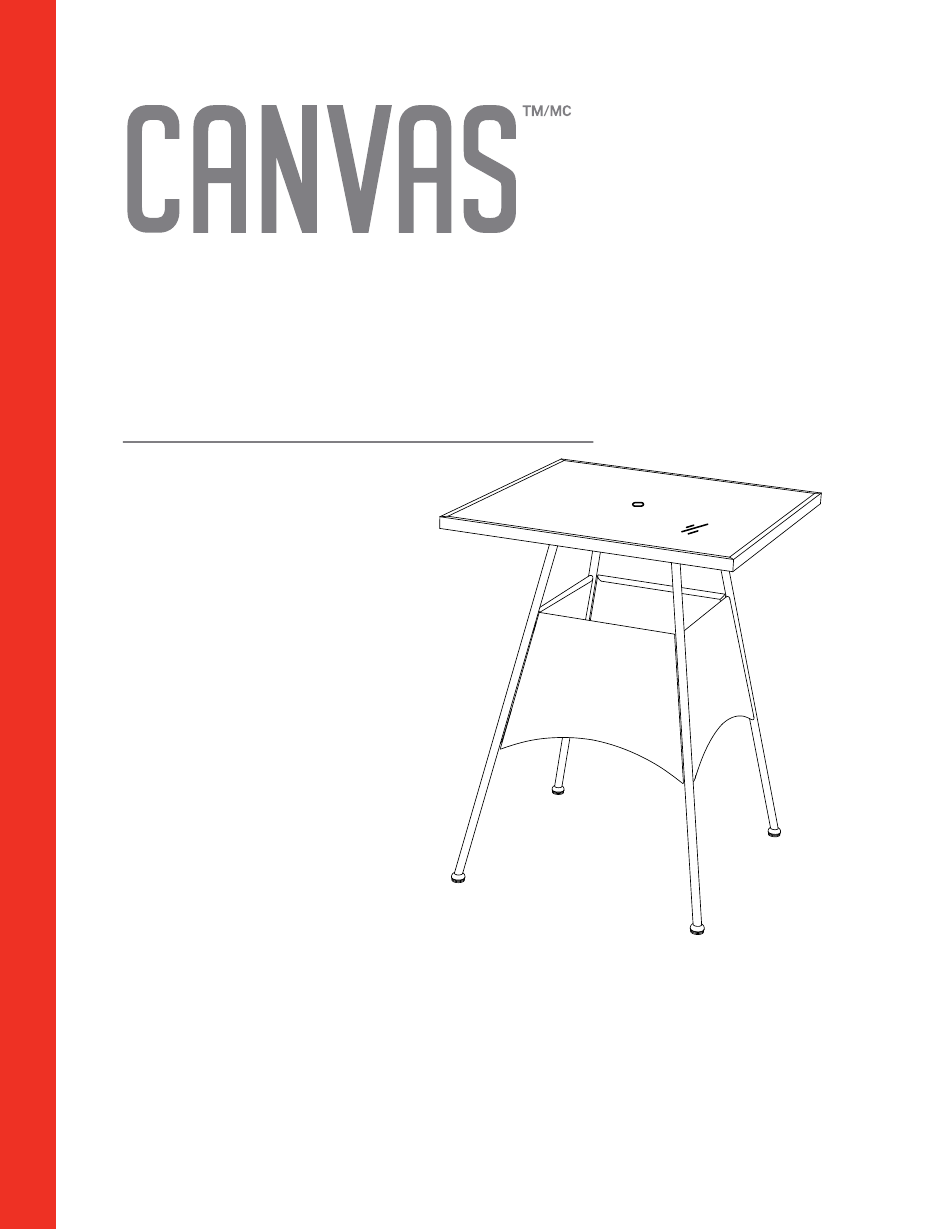

PLAYA COLLECTION
HIGH DINING TABLE
PRODUCT NO. 088-1772-8
ASSEMBLY INSTRUCTIONS
Toll-free: 1-888-670-6684
IMPORTANT: Please read and understand this manual before any assembly. Before beginning assembly
of product, make sure all parts are present. Compare parts with packaging contents list. If any part is
missing, or if you have any questions, contact the customer service department at 1-888-670-6684.

Advertisement

loading
Need help?

Need help?

Do you have a question about the PLAYA 088-1772-8 and is the answer not in the manual?

Questions and answers

Related Manuals for Canvas PLAYA 088-1772-8

Summary of Contents for Canvas PLAYA 088-1772-8

  • Page 1 PLAYA COLLECTION HIGH DINING TABLE PRODUCT NO. 088-1772-8 ASSEMBLY INSTRUCTIONS Toll-free: 1-888-670-6684 IMPORTANT: Please read and understand this manual before any assembly. Before beginning assembly of product, make sure all parts are present. Compare parts with packaging contents list. If any part is missing, or if you have any questions, contact the customer service department at 1-888-670-6684.
  • Page 2 IMPORTED FOR TRILEAF DISTRIBUTION TRIFEUIL TORONTO, CANADA M4S 2B8...
  • Page 3 Table of Contents Important Safety Instructions Parts List Assembly Cleaning and Maintenance Technical Data Warranty Warning! To reduce the risk of serious injury, read the following safety instructions before assembling and using the table. Caution! Always keep children under close supervision while they are using or around this product.
  • Page 4 PRODUCT NO. 088-1772-8 Table frame - 1 Screw with washer M6X20 - 20 Leg frame - 4 Hex key - 1 Leg side panel - 4 Glass table top - 1...
  • Page 5 CAUTION! The maximum load of this product is 44 lb (20 kg). • Do not stand or sit on the product. Keep children away during assembly. • This product contains small parts which can be swallowed by children. Keep fingers away from the places where they can be pinched or trapped. •...
  • Page 6 PRODUCT NO. 088-1772-8 Note: Do not tighten screws all the way until you have assembled the table. Once assembly is complete, go back and tighten each screw. Step 1 Requires part 1, 2, A, B Attached each leg frame (2) to the table frame (1), using the M6X20 screws (A) with washers, then tighten the screws with Hex Key (B).
  • Page 7 Step 3 Requires parts 4 Turn the table to upright position and put on the glass table top (4). When using an umbrella, insert the pole of the umbrella through the opening on the table frame. Make sure the protection ring is in place in the central hole of the table frame.

  • Page 8: Product Weight

    PRODUCT NO. 046-3456-8 | MODEL NO. 088-163 PRODUCT NO. 088-1772-8 CAUTION! Check all screws and nuts periodically for tightness, tightening them • again as required. Disassemble the table in the reverse order of the assembly steps. • Always disassemble the table completely. Clean the product with a slightly damp cloth and a little detergent.
  • Page 9 This CANVAS product carries a one (1) year warranty against defects in workmanship and materials. Trileaf Distribution agrees to replace the defective product free of charge within the stated warranty period, when returned by the original purchaser with proof of purchase. This product is not guaranteed against wear or...
