PARKDALE LOVESEAT
AND OTTOMAN
PRODUCT NO. 088-2077-8
ASSEMBLY INSTRUCTIONS
Toll free: 1-888-670-6684
IMPORTANT: Please read and understand this manual before any assembly. Before beginning assembly
of product, make sure all parts are present. Compare parts with packaging contents list. If any part is
missing, or if you have any questions, contact the customer service department at 1-888-670-6684.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Canvas PARKDALE 088-2077-8
Summary of Contents for Canvas PARKDALE 088-2077-8

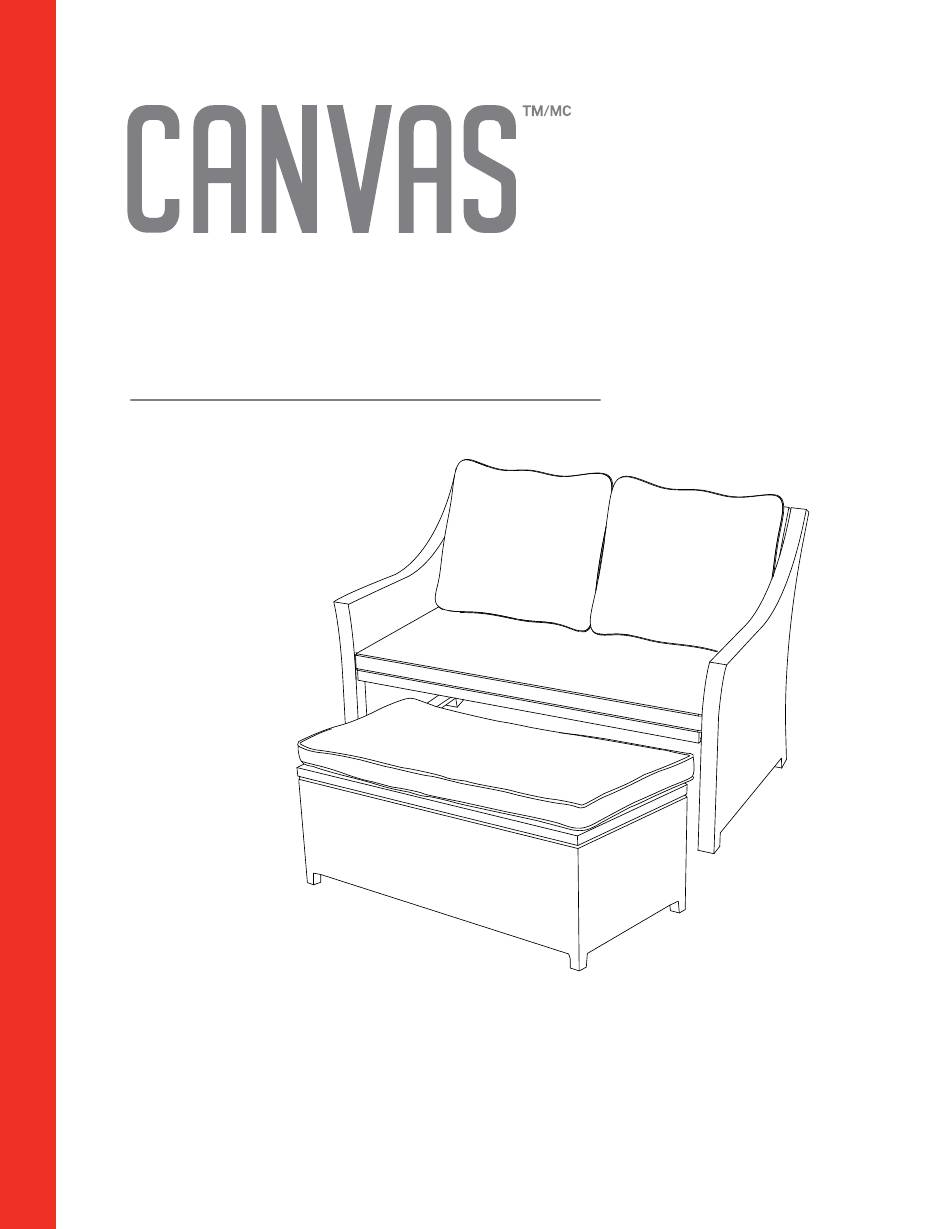

- Page 1 PARKDALE LOVESEAT AND OTTOMAN PRODUCT NO. 088-2077-8 ASSEMBLY INSTRUCTIONS Toll free: 1-888-670-6684 IMPORTANT: Please read and understand this manual before any assembly. Before beginning assembly of product, make sure all parts are present. Compare parts with packaging contents list. If any part is missing, or if you have any questions, contact the customer service department at 1-888-670-6684.
- Page 2 Made in China IMPORTED BY TRILEAF DISTRIBUTION TRIFEUIL TORONTO, CANADA M4S 2B8...
- Page 3 Table of Contents Important Safety Instructions Parts List Assembly Cleaning and Maintenance Technical Data Warranty Warning! To reduce the risk of serious injury, read the following safety instructions before assembling and using the loveseat. Caution! Always keep children under close supervision while they are using or around this product.
- Page 4 PRODUCT NO. 088-2077-8 Right arm - 1 Screw with washer M6X40 - 6 Left arm - 1 Screw with washer M6X50 - 7 Seat panel - 1 Hex key - 1 Back Panel - 1 Seat cushion - 1 Back cushion - 2...
- Page 5 CAUTION! The maximum weight capaicty of the loveseat is 250 lb (113.39 kg) per seat; • for ottoman 200 lb (90.7 kg) Do not stand on the product. Keep children away during assembly. • This product contains small parts which can be swallowed by children. Keep fingers away from the places where they can be pinched or trapped.
- Page 6 PRODUCT NO. 088-2077-8 Note: Do not tighten screws all the way until you have assembled the loveseat. Once assembly is complete, tighten each screw. Step 1 Requires part 1, 3, B, C Attach the seat panel (3) to the right arm (1), using the M6X50 screws (B) with washers, aligning the holes.
- Page 7 Step 3 Requires parts 2, A, B, C Connect the left arm (2) to the back panel (4), using the M6X40MM screws (A) with washers, and then using the M6X50MM screws (B) with washers to connect the seat panel (3), aligning the holes. When assembled, tighten the screws with Hex Key (C). Step 4 Requires parts 5, 6 Put seat cushion (5) and back cushions (6) on the seat.
-
Page 8: Product Weight
PRODUCT NO. 046-3456-8 | MODEL NO. 088-163 PRODUCT NO. 088-2077-8 CAUTION! Check all screws and nuts periodically for tightness, tightening them • again as required. Clean the product with a slightly damp cloth and a little detergent. Let it dry thoroughly. •... - Page 9 This CANVAS product carries a one (1) year warranty against defects in workmanship and materials. Trileaf Distribution agrees to replace the defective product free of charge within the stated warranty period, when returned by the original purchaser with proof of purchase. This product is not guaranteed against wear or...
