OnCell 5004/5104 Series
Quick Installation Guide
First Edition, March 2009
1. Overview
The OnCell 5004 and OnCell 5104 are high-performance industrial grade
cellular routers that allow up to 4 Ethernet-based devices to
simultaneously use a single cellular data account for primary or backup
network connectivity to remote sites and devices. Both products provide
the functionality of a cellular router, firewall, and switch in one single
device. The difference between the OnCell 5004 and OnCell 5104 is that
the OnCell 5104 comes with a built-in relay output that can be configured
to indicate the priority of events to notify and warn engineers in the field,
and the two digital inputs allow you to connect basic I/O devices, such as
sensors, to the cellular router. In addition, the OnCell 5104 has an IA
design and can be attached to a DIN-rail, whereas the OnCell 5004 can be
placed on a desktop or be wall-mounted. Both products use 12 to 48 VDC
power inputs with a screw-on connector for greater reliability, and the
Ethernet port comes with 1.5 KV magnetic isolation protection to keep
your system safe from unexpected electrical discharges.
2. Package Checklist
Before Installing the OnCell 5004/5104 Cellular Router, verify that the
package contains the following items:
Standard Accessories
Rubber SMA antenna
Rubber stand (OnCell 5004 series only)
Wallmount Kit (OnCell 5004 series only)
Din-Rail Kit (OnCell 5104 series only)
Terminal block (screw type)
Document and Software CD
Product warranty statement
Quick Installation Guide
Note: Please notify your sales representative if any of the above items are
missing or damaged.
Optional Accessories
DC Power Supply (screw-on)
DC Power Supply (standard)
Power Jack to Terminal Block Cable
P/N: 1802050040010
— 1 —
Antennas (impedance = 50 ohms):
ANT-CQB-AHSM-00-3m: Omni 0dBi/10cm, magnetic SMA quad-band
antenna, 3 m
ANT-CQB-AHSM-03-3m: Omni 3dBi/25cm, magnetic SMA quad-band
antenna, 3 m
ANT-CQB-AHSM-05-3m: Omni 5dBi/37cm, magnetic SMA quad-band
antenna, 3 m

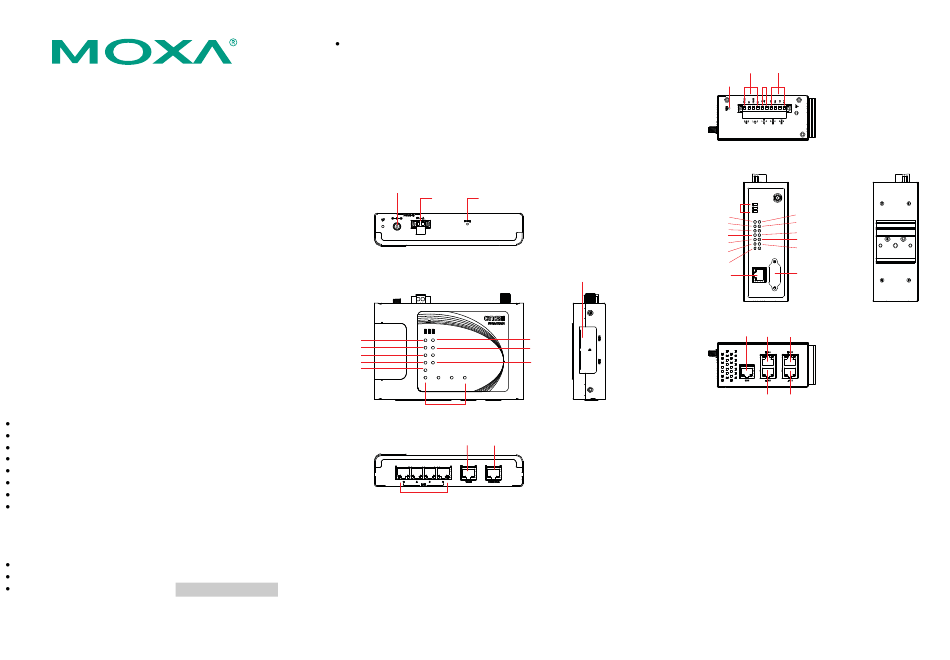

3. Hardware Introduction
OnCell 5004
Power Jack
Power TB
Reset
Top View
PWR1
READY
2G
SIM 1
WAN
LAN 1-4
Front View
WAN Port Console Port
LAN 1-4
Rear View
— 2 —
OnCell 5104
PWR 1
READY
SIM 1
LAN 3
LAN 1
WAN
Console Port
SIM Card Cover
PWR2
FAULT
SIM 2
Side View
Reset Button
Press the Reset Button continuously for 5 sec to load factory defaults:
Use a pointed object, such as a straightened paper clip or toothpick, to
press the reset button. This will cause the Ready LED to blink on and off.
The factory defaults will be loaded once the Ready LED stops blinking
(default LAN IP: 192.168.127.254).
DI 1/ DI 2
PWR 1/ PWR 2
Reset
Relay
Top View
Signal
PWR 2
FAULT
2G
SIM 2
LAN 4
LAN 2
SIM Card Cover
Front View
Back View
WAN Port LAN 4 LAN 2
LAN 3
LAN 1
Bottom View
— 3 —
