Location For Installation - Gree GMV-ND30PLS/C-T Owner's Manual

Multi Variable Air Conditioners Ducted Type Indoor Unit
No. Name
6 M10 Nut (M10×8.4 Nut)
M10 Washer (Spring
7
Washer M10×2.6)
8 Insulation
9 Insulation
10 Sponge
Sponge for the fresh air
11
port
12 Fastener
Packing collet (installation
13
cardboard)

3.2 Location for Installation

(1) The appliance shall not be installed in the laundry.
(2) The top holder must be strong enough to support unit's weight.
(3) Drain pipe can drain water out easily.
(4) There is no obstacle at inlet or outlet. Please ensure good air circulation.
(5) In order to make sure the space for maintenance, please install the indoor unit according to the
dimension described below.
(6) Keep the unit away from heating source, inflammable gas or smoke.
(7) This is a concealed ceiling type unit.
(8) Indoor unit, outdoor unit, power cord and electric wire should stay at least 1m (39-3/8inch) from
the TV set and radio. Otherwise, these electrical appliances may have image interference and
noise. (Even if the distance is 1m (39-3/8inch), when there is strong electric wave, noise may
still occur.)
Appearance

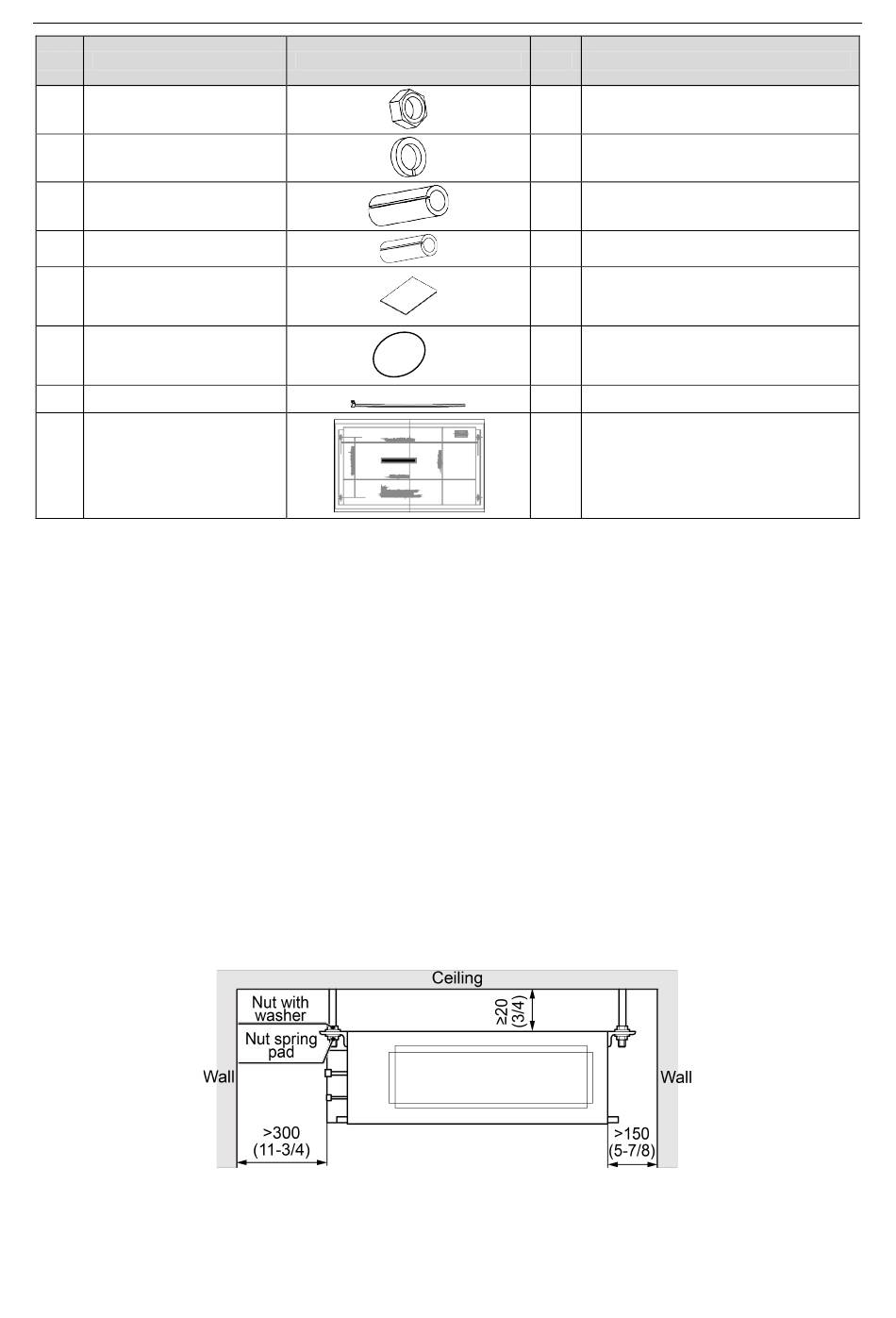

Fig.3.2.1
3
Q'ty Usage
To be used together with the hanger
4
bolt for installing the unit.
To be used together with the hanger
4
bolt for installing the unit.
1 To insulate the gas pipe
1 To insulate the liquid pipe
2 To insulate the drain pipe
Thermal insulation for the fresh air
1
port
8 To fasten the sponge
1 To drill hole on the ceiling
Unit: mm(inch)
