Veris Industries AG01E Installation Manual

Installation Guide
Accessories
NOTICE
• This product is not intended for life or safety applications.
• Do not install this product in hazardous or classi ed locations.
• Read and understand the instructions before installing this product.
• Turn o all power supplying equipment before working on it.
• The installer is responsible for conformance to all applicable codes.
No responsibility is assumed by Veris Industries for any consequences arising out of the
use of this material.
Z207061-0A Page 1 of 2
Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Aerospond, Veris, and the Veris 'V' logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.

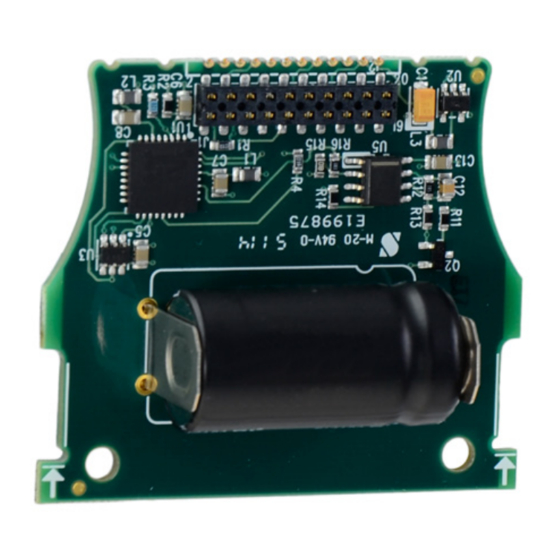

Carbon Monoxide Sensing Element

Product Overview

The AG01E carbon monoxide (CO) sensing element is designed to work with the Veris GWN Series gas platform unit
to provide monitoring of CO levels. Common sources of CO include automobile exhaust from gasoline engines,
gasoline powered furnaces, gasoline powered water heaters, and gasoline generators. The sensor is calibrated at
the factory, so no field calibration is needed. The AG01E is warranted to meet accuracy specifications for one year
after the date of manufacture.

Specifications

Measurement Range
Analog Output Scaling
Sensor Warranty
Low Level Setpoint
High Level Setpoint
Operating Temperature Range
Operating Humidity Range
The AGxx sensors work only with Veris GWN Series gas platform devices.
©2015 Veris Industries USA 800.354.8556 or +1.503.598.4564 / support@veris.com
Other companies' trademarks are hereby acknowledged to belong to their respective owners.
AG01E
Sensor Type Electrochemical
0-500 ppm
Accuracy ±5% of range
0-200 ppm
Resolution 1 ppm
1 year from manufacture date
25 or 35 ppm (switch selectable)
180 ppm (fixed)
-20° to 50°C (-4° to 122°F)
0-90% RH non-condensing
TM
0415
