Veris Industries AG06 Installation Manual

Installation Guide

Accessories

NOTICE
• This product is not intended for life or safety applications.
• Do not install this product in hazardous or classi ed locations.
• Read and understand the instructions before installing this product.
• Turn o all power supplying equipment before working on it.
• The installer is responsible for conformance to all applicable codes.
If this product is used in a manner not speci ed by the manufacturer, the protection
provided by the product may be impaired. No responsibility is assumed by the
manufacturer for any consequences arising out of the use of this material.
Z207873-0A Page 1 of 2
Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Aerospond, Veris, and the Veris 'V' logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.

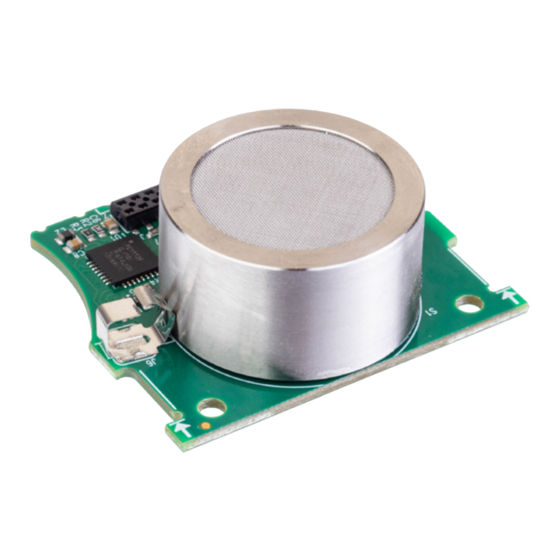

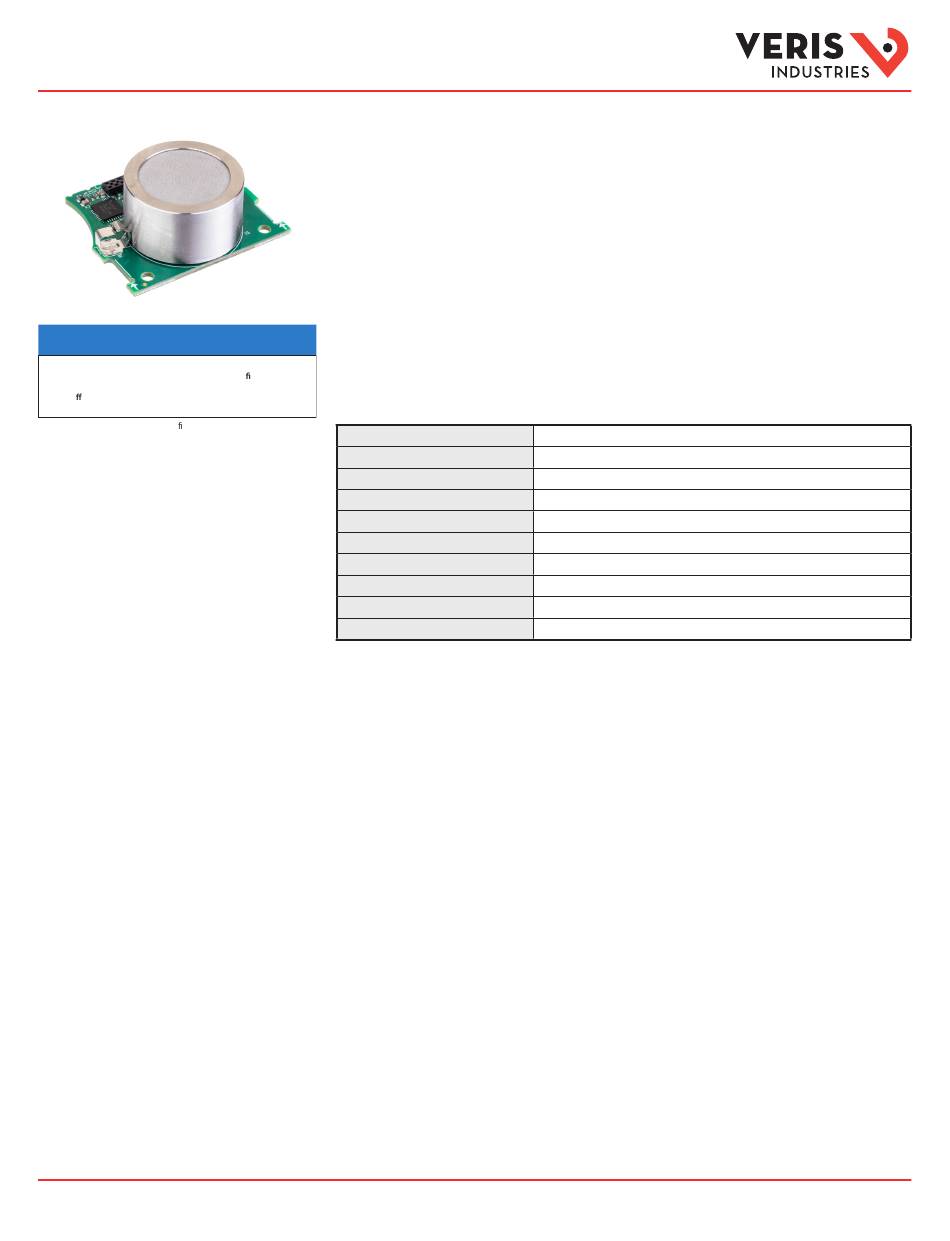

R410a Refrigerant Sensing Element

Product Overview

The AG06 R410a refrigerant sensing element is designed to work with the Veris GWN Series gas platform unit
to provide accurate monitoring of R410a refrigerant levels. R410a is a common refrigerant used in commercial,
residential and automotive HVAC applications. The AG06 is intended to be mounted in a fixed location and will
measure the air in that fixed location. The sensor is calibrated at the factory, so no field calibration is needed. The
AG06 is warranted to meet accuracy specifications for two years after the date of manufacture.

Specifications

Measurement Range
Analog Output Scaling
Sensor Warranty
Low Level Setpoint
High Level Setpoint
Operating Temperature Range
Operating Humidity Range
Note: The AGxx sensors work only with Veris GWN Series gas platform devices.
*Low and high level setpoints can be adjusted between 0 and 2000 ppm if AG06 is used with a GWNP (protocol output) gas
platform.
