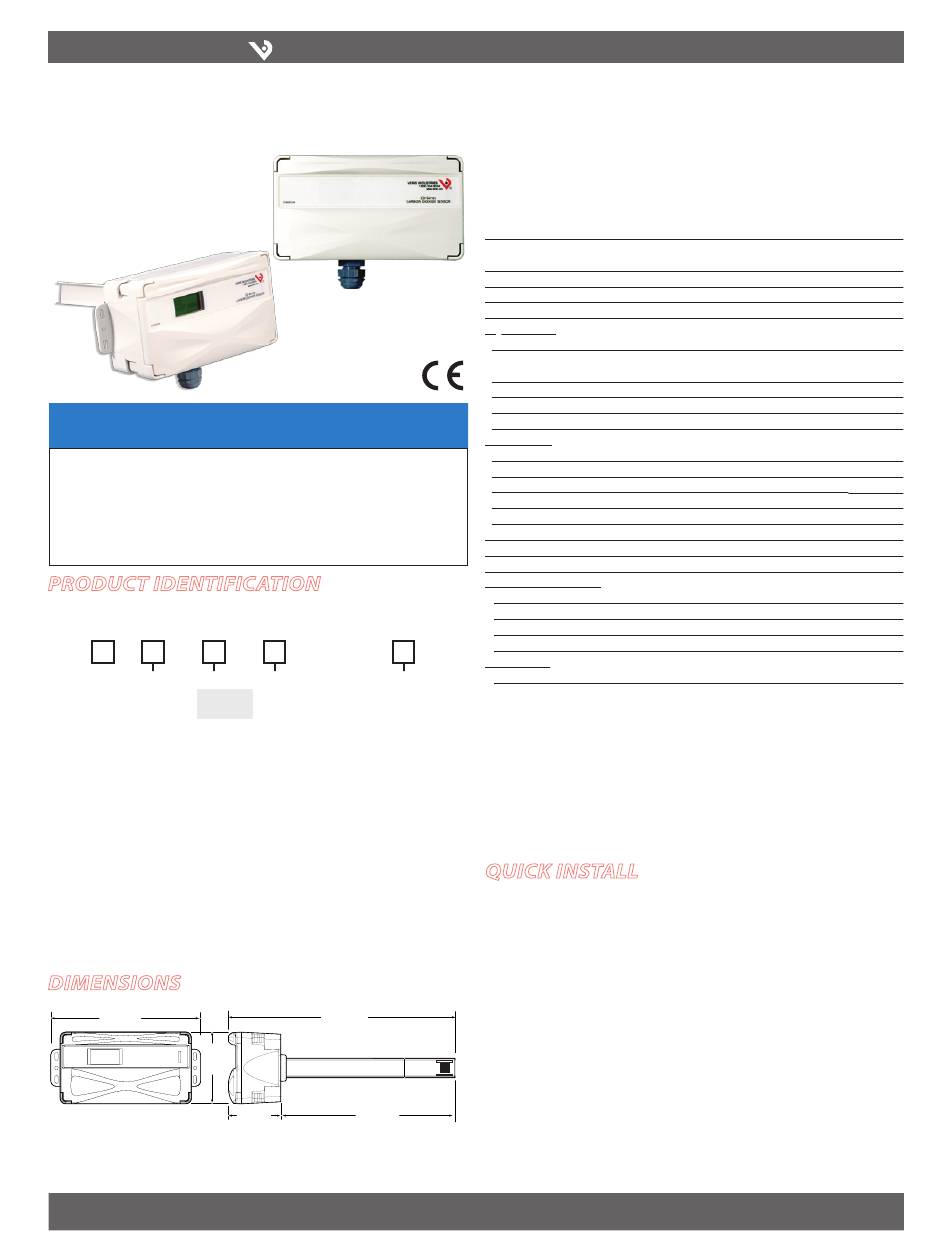

Veris Industries CD Series Installation Manual

VERIS INDUSTRIES
CD SerieS
NOTICE
• This product is not intended for life or safety applications.
• Do not install this product in hazardous or classified locations.
• Read and understand the instructions before installing
this product.
• Turn off all power supplying equipment before working on it.
• The installer is responsible for conformance to all applicable codes.
Product identification
DELUXE MODEL:
RH Option Temp
CDL S
H = RH2% T = Temp
X = NO RH X = No Temp
(Stop Here)
ECONOMY MODEL:
CDE
(no options)

dimensions

6.7"
(170 mm)
3.1"
(78 mm)
Z204900-0G PAGE 1
Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Veris, and the Veris 'V' logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.
environmental SenSorS
™
CDE
CDL
Sensor Type Optional Cal Cert.
A = Transmitter Blank = None
B = 100R Platinum, RTD 1 = 1 pt Temp Cert
C = 1k Platinum, RTD 2 = 2 pt Temp Cert
D = 10k T2, RTD, Thermistor
E = 2.2k, Thermistor
F = 3k, Thermistor
G = 10k CPC, Thermistor
H = 10k T3, Thermistor
J = 10k Dale, Thermistor
K = 10k w/11k shunt, Thermistor
M = 20k NTC, Thermistor
N = 1800 ohm, Thermistor
R = 10k US, Thermistor
S = 10k 3A221, Thermistor
T = 100k, Thermistor
U = 20k "D", Thermistor
10.2"
(258 mm)
7.8"
2.4"
(97 mm)
(61 mm)
©2009 Veris Industries USA 800.354.8556 or +1(0)503.598.4564 / support@veris.com
Installation GUiDe
CD SerieS
Duct Mounted Environmental CO
Installer's Specifications
Input Voltage
Analog Output 4-20mA, (clipped & capped)/0-10VDC (selectable)- CDE models
4-20mA, (clipped & capped)/0-5VDC/0-10VDC (selectable)- CDL models
Sensor Current Draw
Operating Temperature Range
Housing Material
CO 2 Transmitter:
Sensor Type
Measurement Range 0-2000 ppm or 0-5000 ppm, user selectable on CDL models,
Accuracy
Repeatability
Response Time
RH Transmitter:
HS Sensor Digitally profiled thin-film capacitive (32-bit mathematics); U.S. Patent 5,844,138
Accuracy ±2% from 10 to 80% RH @ 25°C; Multi-point calibration NIST
Hysteresis
Linearity
Stability
Operating Humidity Range
Operating Temperature Range
Temperature Coefficient
Temperature (Transmitter):
Sensor Type
Accuracy
Resolution
Range
Relay Contacts:
1 Form C
Note: Specified accuracy with 24VDC supplied power with rising humidity. RTD/Thermistors in wall
packages are not compensated for internal heating of product.
EMC Conformance: EN 61000-6-3:2001 (Amended by A11:2004) Class B, EN 61000-6-1:2001
EMC Test Methods: CISPR 22:2006, IEC 61000-4-2:2001, IEC 61000-4-3:2006, IEC 61000-4-4:2004,
IEC 61000-4-6:2006, IEC 61000-4-8:2001, IEC 61000-4-11:2004
EMC Special Note: Connect this product to a DC distribution network or an AC/DC power adaptor
with proper Surge protection (EN 61000-6-1:2001 specification requirements).
* Measured at NTP

quick install

1. Mark and drill the three holes for the duct probe as shown. The centerline must be
parallel to the air flow through the duct.
2. Rotate the duct probe so that its widest surface is perpendicular to the air flow in
the duct.
3. Insert the probe and secure the sensor to the duct with sheet metal screws,
making sure that the provided gasket material is compressed between the sensor
housing and the air duct.
4. Wiring. See wiring diagrams on next page.
Sensors
2
20 to 30VDC, 24AC
100mA Maximum
0° to 50°C (32° to 122°F)
High impact ABS plastic
Non-dispersive infrared (NDIR), diffusion sampling
0-2000 ppm on CDE models
±30 ppm ±2% of measured value*
±20 ppm ±1% of measured value
<60 seconds for 90% step change
1.5% typical
Included in Accuracy spec.
±1% @ 20°C (68°F) annually, for two years
0 to 100% RH
10° to 35°C (50° to 95°F)
±0.1% RH/°C above or below 25°C (typical)
Solid-state, integrated circuit
±0.5°C (±1°F) typical
0.1°C (0.2°F)
10° to 35°C (50° to 95°F)
1A@30VDC, resistive; 30W max.
