MDM SEQUENCE ALPHA PRIMER Installation And Service Manual

Model
INLET
DISCHARGE
MAX FLOW (GPH)
MAX HEAD (FEET)
MAX POWER (WATTS)
MAX CURRENT (AMPS)
VOLTS
MOTOR HP
MOTOR TYPE
MOTOR ENCLOSURE
Read this manual completely before you install or operate your new pump. This is an external "out-of-pond" pump.
PROUDLY MADE
IN THE USA
INSTALLATION AND SERVICE MANUAL
6800PRM19
2"
2"
6800
19'
369
3.93 @115V
115/230
1/2, 1/3
56Y
TEFC
It is not submersible. Do not allow this pump to become submerged. Never run dry.
Reliable. Efficient.

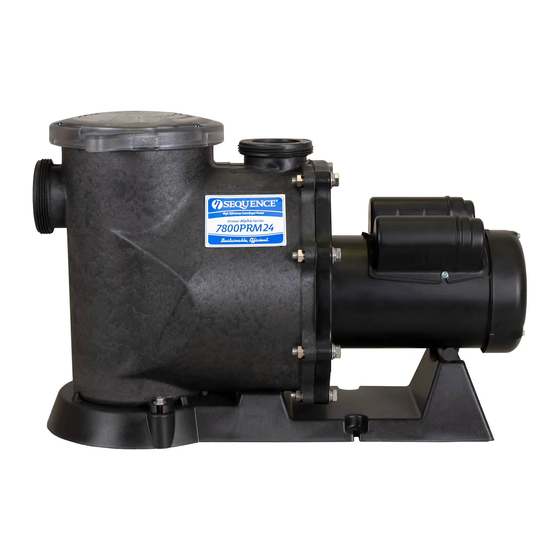

ALPHA PRIMER
®
HORSEPOWER: 1/3, 1/2 (1750 RPM)
®
XXXXPRMXX
S/N: XXXX-XXXXXX
FILL IN FOR FUTURE REFERENCE:
MODEL: ______________________________
SERIAL NUMBER: _______________________
DATE PURCHASED: ______________________
COMPLETE AND MAIL YOUR WARRANTY REGISTRATION
CARD INCLUDED WITH THIS PRODUCT OR FILE ONLINE AT:
WWW.MDMINC.COM/PUMP-REGISTRATION
TYPE: STRAIGHT CENTRIFUGAL
MOTOR: NEMA 56Y
INLET: 2" FNPT WITH 2" SLIP ADAPTERS
DISCHARGE: 2" & 2 1/2" SLIP ADAPTERS
MATERIAL: GLASS-FILLED POLYPROPYLENE
HARDWARE: STAINLESS STEEL
OPTIONS: SALTWATER SERVICE
ACCESSORIES: SWING CHECK VALVES (1.5", 2", 3")
*MOTORS ARE SUBJECT TO CHANGE DUE TO
AVAILABILITY OR SPECIFICATION REQUIREMENTS.
7800PRM24
2"
2"
7800
24'
504
5.02 @115V
115/230
1/2, 1/3
56Y
TEFC
© MDM INCORPORATED
WWW.MDMINC.COM
P.1
