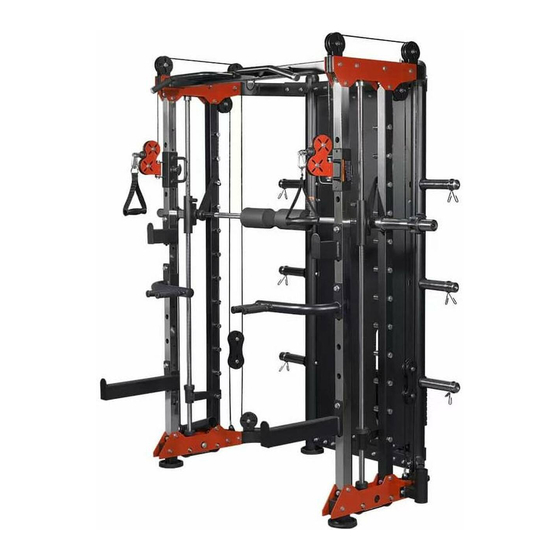

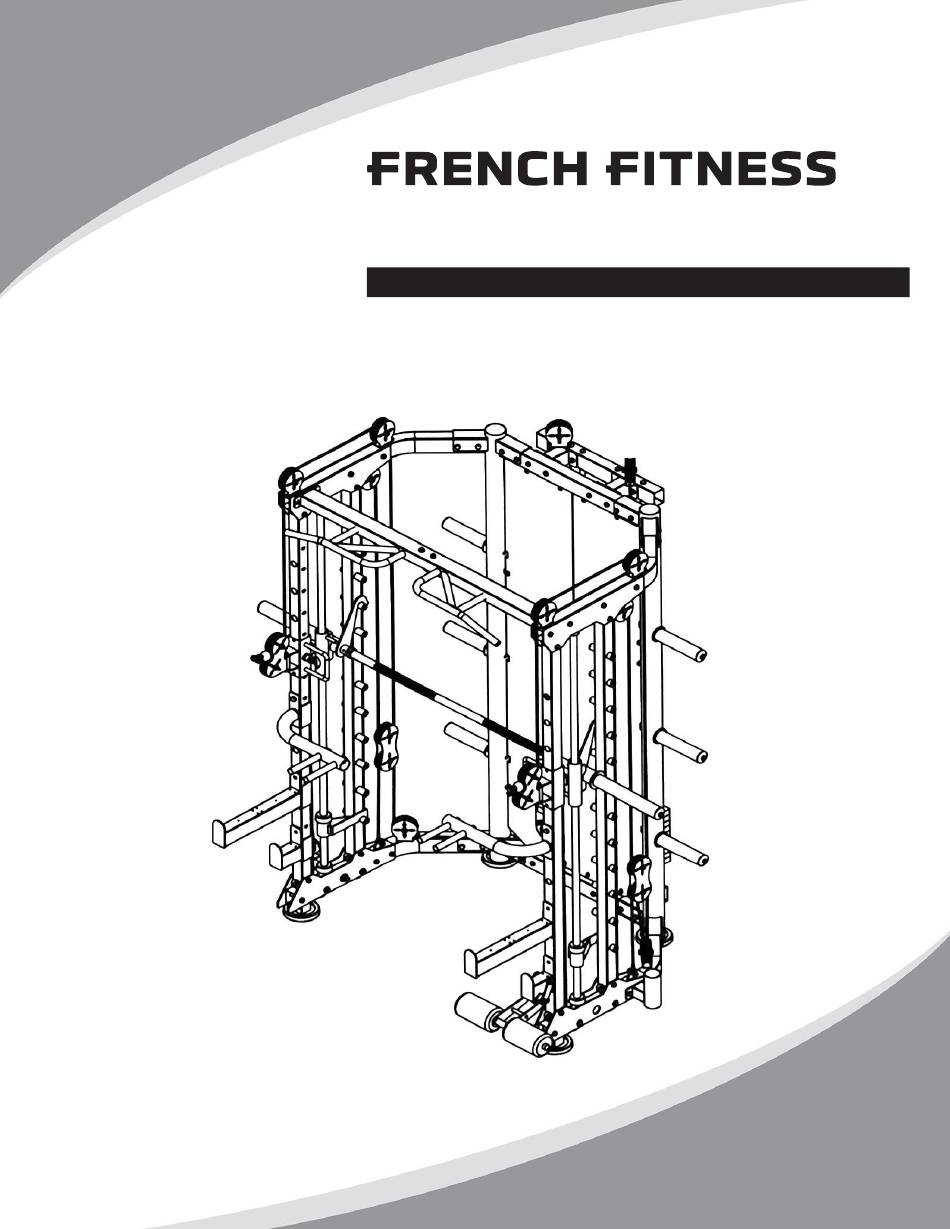

- Page 1 FF-FSR80 FUNCTIONAL TRAINER SMITH & RACK GYM SYSTEM ASSEMBLY MANUAL...
- Page 2 FEATURES • Sealed bearing pulleys Smith Machine • Multi-grip chin up bar with • 79" Olympic Smith Bar comfortable knurling • Straight up and Down Motion • 6 weight storage post • 12 adjustable heights • High tensile 2000 lbs cables •...
- Page 3 O verview The Multi-Functional Smith is a strength training equipment newly developed by our company combining the international and domestic markets. It has a smooth structure, beautiful appearance, firm connection and small footprint. The various configured functions can achieve the effect of the whole body being exercised through comprehensive use of training.
- Page 5 Installation Instructions 1. Use M10*70 hex head cap bolts to penetrate the gaskets and separately connect the left and right sides of the rear risers. Use M10 locking nuts to fasten them. 2. Use M10*70 hex head cap bolts to penetrate the gaskets and fasten the two sides of the upper beam tubes.
- Page 7 Installation Instructions 1. Use M10*70 hex head cap bolts to penetrate the gaskets and connect the left and right sides of the rear base connecting pipes. Use M10 locking nuts to fasten them. 2. Use M10*70 hex head cap bolts to penetrate the gaskets and separately connect the rear connecting pipes.
- Page 9 Installation Instructions 1. Put the hooks for Olympic barbell bars on both sides of the Olympic barbell bars. Fasten them with hex keys. 2. Successively apply fixing bearing steel sleeves, linear bearing sleeves, cushions, end hooks and cushions to bearing steel. Do the same on both sides. 3.
- Page 11 Installation Instructions 1. Uninstall the round heads and U-shaped clips of the steel wire rope at Dot H. 2. Connect the bolt side of the steel wire rope and Dot A of the adjusting casing. And successively penetrate Dot B, C, E, F, G on the other side. 3.
- Page 13 Installation Instructions 1. Connect one side of the counterweight steel rope bolts with Dot I lifting rods. 2. Successively penetrate Dot J, K, L and M with the other side. 3.Fix M10*20 hex head cap bolts with Dot N.
- Page 15 Installation Instructions 1. Separately install barbell sleeves on both sides of the rear risers. Use M10*20 hex head cap bolts to penetrate the gaskets to fasten them. 2. Use M8*20 hex head cap bolts to separately install the left and right sides of the casings on the connecting horizontal tubes.
- Page 17 Installation Instructions 1. Separately install the left and right sides of the parallel bar tubes on the stainless steel adjusting tubes on both sides. 2. Separately install the left and right sides of the small protection frames for the Olympic barbell bars on the stainless steel adjusting tubes on both sides.
