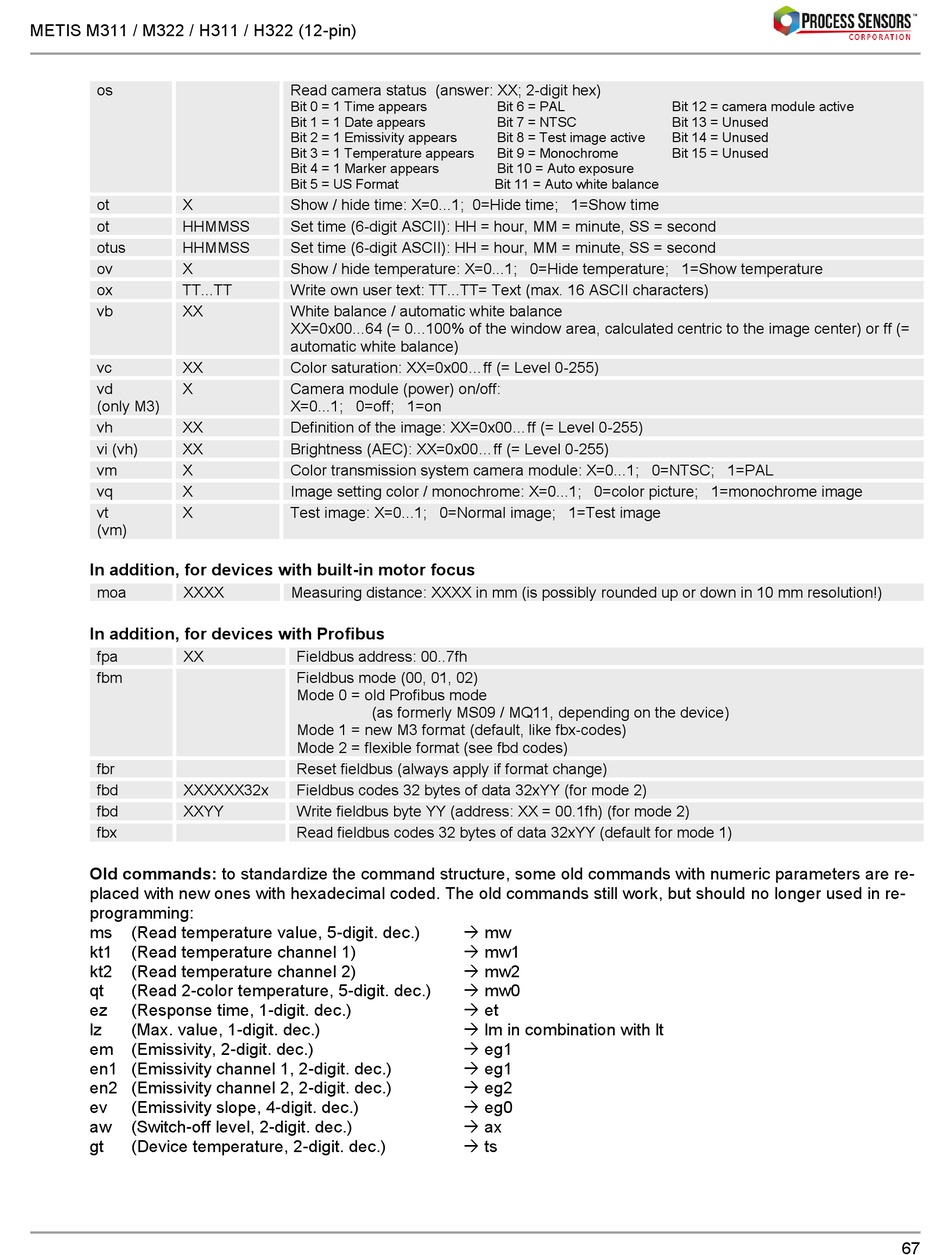

METIS M311 / M322 / H311 / H322 (12-pin)
os
ot X
ot HHMMSS
otus HHMMSS
ov X
ox TT...TT
vb XX
vc XX
vd X
(only M3)
vh XX
vi (vh) XX
vm X
vq X
vt X
(vm)
In addition, for devices with built-in motor focus
moa XXXX
In addition, for devices with Profibus
fpa XX
fbm
fbr
fbd XXXXXX32x
fbd XXYY
fbx
Old commands: to standardize the command structure, some old commands with numeric parameters are re-
placed with new ones with hexadecimal coded. The old commands still work, but should no longer used in re-
programming:
ms (Read temperature value, 5-digit. dec.)
kt1 (Read temperature channel 1)
kt2 (Read temperature channel 2)
qt (Read 2-color temperature, 5-digit. dec.)
ez (Response time, 1-digit. dec.)
lz (Max. value, 1-digit. dec.)
em (Emissivity, 2-digit. dec.)
en1 (Emissivity channel 1, 2-digit. dec.)
en2 (Emissivity channel 2, 2-digit. dec.)
ev (Emissivity slope, 4-digit. dec.)
aw (Switch-off level, 2-digit. dec.)
gt (Device temperature, 2-digit. dec.)
Read camera status (answer: XX; 2-digit hex)
Bit 0 = 1 Time appears
Bit 1 = 1 Date appears
Bit 2 = 1 Emissivity appears
Bit 3 = 1 Temperature appears
Bit 4 = 1 Marker appears
Bit 5 = US Format
Show / hide time: X=0...1; 0=Hide time; 1=Show time
Set time (6-digit ASCII): HH = hour, MM = minute, SS = second
Set time (6-digit ASCII): HH = hour, MM = minute, SS = second
Show / hide temperature: X=0...1; 0=Hide temperature; 1=Show temperature
Write own user text: TT...TT= Text (max. 16 ASCII characters)
White balance / automatic white balance
XX=0x00...64 (= 0...100% of the window area, calculated centric to the image center) or ff (=
automatic white balance)
Color saturation: XX=0x00...ff (= Level 0-255)
Camera module (power) on/off:
X=0...1; 0=off; 1=on
Definition of the image: XX=0x00...ff (= Level 0-255)
Brightness (AEC): XX=0x00...ff (= Level 0-255)
Color transmission system camera module: X=0...1; 0=NTSC; 1=PAL
Image setting color / monochrome: X=0...1; 0=color picture; 1=monochrome image
Test image: X=0...1; 0=Normal image; 1=Test image
Measuring distance: XXXX in mm (is possibly rounded up or down in 10 mm resolution!)
Fieldbus address: 00..7fh
Fieldbus mode (00, 01, 02)
Mode 0 = old Profibus mode
(as formerly MS09 / MQ11, depending on the device)
Mode 1 = new M3 format (default, like fbx-codes)
Mode 2 = flexible format (see fbd codes)
Reset fieldbus (always apply if format change)
Fieldbus codes 32 bytes of data 32xYY (for mode 2)
Write fieldbus byte YY (address: XX = 00.1fh) (for mode 2)
Read fieldbus codes 32 bytes of data 32xYY (default for mode 1)
 mw
 mw1
 mw2
 mw0
 et
 lm in combination with lt
 eg1
 eg1
 eg2
 eg0
 ax
 ts
Bit 6 = PAL Bit 12 = camera module active
Bit 7 = NTSC Bit 13 = Unused
Bit 8 = Test image active Bit 14 = Unused
Bit 9 = Monochrome Bit 15 = Unused
Bit 10 = Auto exposure
Bit 11 = Auto white balance
