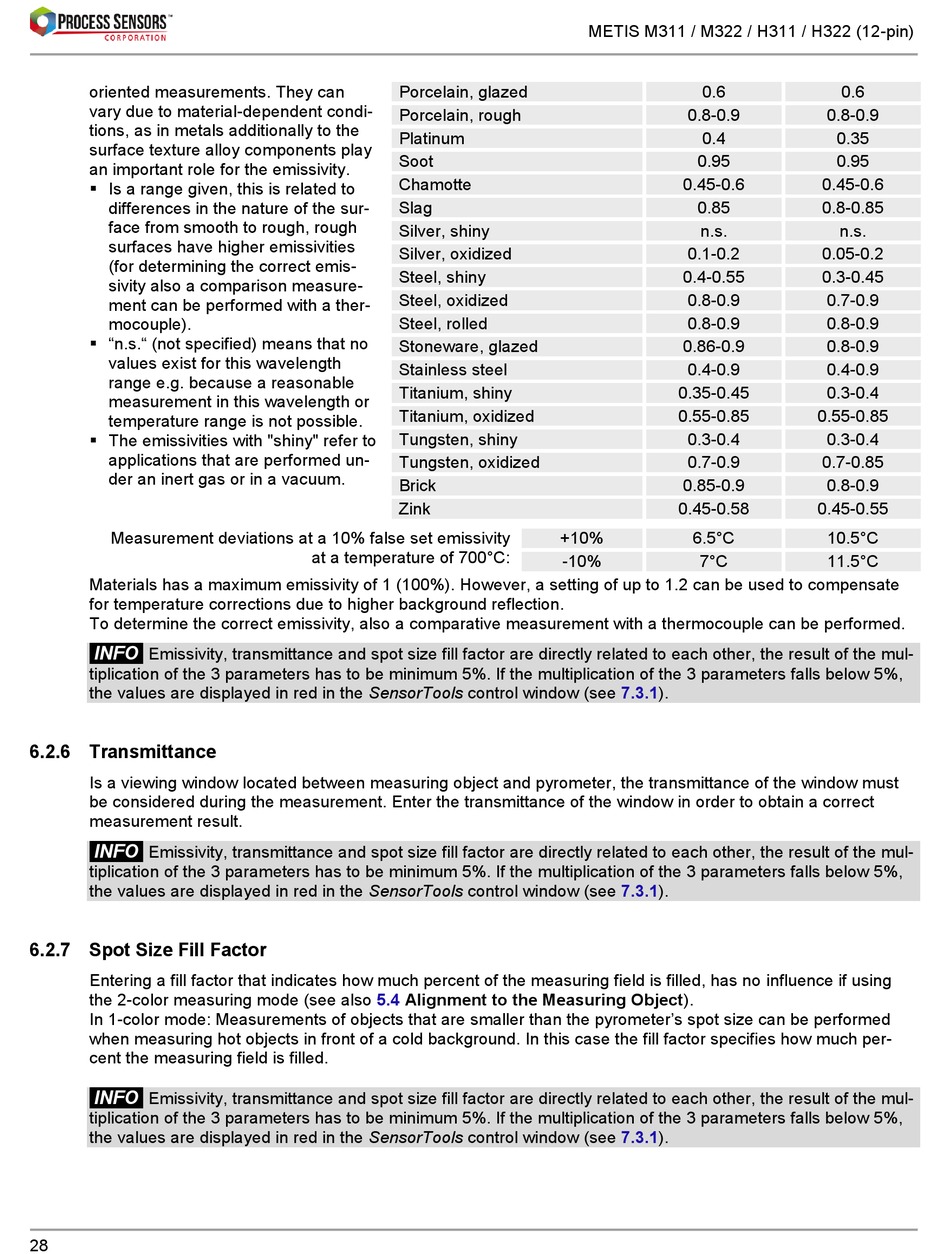

Process Sensors Sensor Therm METIS M311 Operating Manual page 28

oriented measurements. They can
vary due to material-dependent condi-
tions, as in metals additionally to the
surface texture alloy components play
an important role for the emissivity.
 Is a range given, this is related to
differences in the nature of the sur-
face from smooth to rough, rough
surfaces have higher emissivities
(for determining the correct emis-
sivity also a comparison measure-
ment can be performed with a ther-
mocouple).
 "n.s." (not specified) means that no
values exist for this wavelength
range e.g. because a reasonable
measurement in this wavelength or
temperature range is not possible.
 The emissivities with "shiny" refer to
applications that are performed un-
der an inert gas or in a vacuum.
Measurement deviations at a 10% false set emissivity
Materials has a maximum emissivity of 1 (100%). However, a setting of up to 1.2 can be used to compensate
for temperature corrections due to higher background reflection.
To determine the correct emissivity, also a comparative measurement with a thermocouple can be performed.
|INFO|
Emissivity, transmittance and spot size fill factor are directly related to each other, the result of the mul-
tiplication of the 3 parameters has to be minimum 5%. If the multiplication of the 3 parameters falls below 5%,
the values are displayed in red in the SensorTools control window (see 7.3.1).
6.2.6 Transmittance
Is a viewing window located between measuring object and pyrometer, the transmittance of the window must
be considered during the measurement. Enter the transmittance of the window in order to obtain a correct
measurement result.
|INFO|
Emissivity, transmittance and spot size fill factor are directly related to each other, the result of the mul-
tiplication of the 3 parameters has to be minimum 5%. If the multiplication of the 3 parameters falls below 5%,
the values are displayed in red in the SensorTools control window (see 7.3.1).
6.2.7 Spot Size Fill Factor
Entering a fill factor that indicates how much percent of the measuring field is filled, has no influence if using
the 2-color measuring mode (see also
In 1-color mode: Measurements of objects that are smaller than the pyrometer's spot size can be performed
when measuring hot objects in front of a cold background. In this case the fill factor specifies how much per-
cent the measuring field is filled.
|INFO|
Emissivity, transmittance and spot size fill factor are directly related to each other, the result of the mul-
tiplication of the 3 parameters has to be minimum 5%. If the multiplication of the 3 parameters falls below 5%,
the values are displayed in red in the SensorTools control window (see 7.3.1).
28
