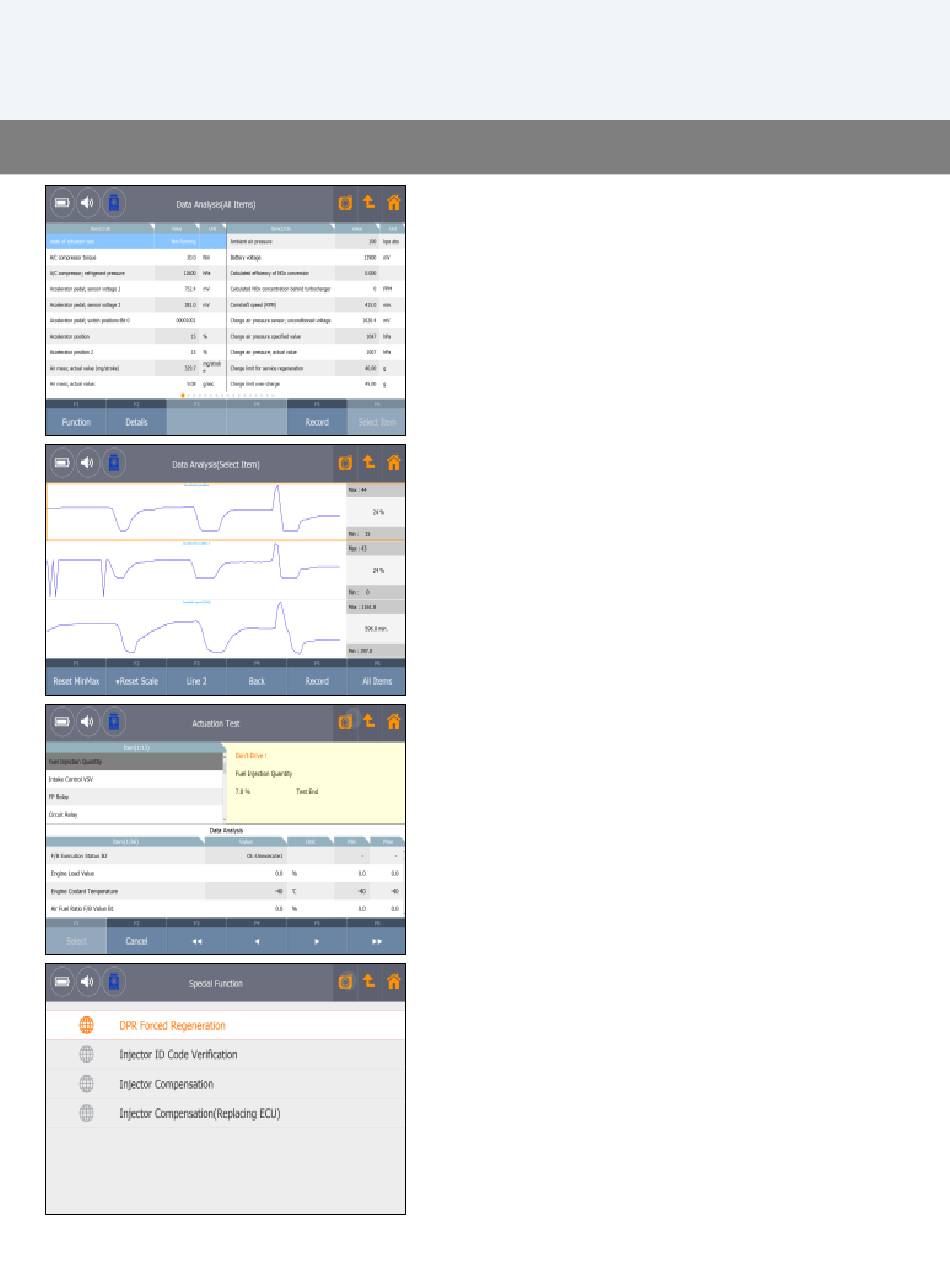

6. Diagnostic Functions
Diagnostic Functions
Data Analysis
As one of the basic diagnostic functions, G-
scan Tab provides live data enabling users to
monitor the system control unit's input and
output side.
Data Graphing with Auto scale
Alpha-numerical value of live data can be
switched to fast and responsive graph mode by
a simple click. It instantly self-adjusts max and
min scale helping users more accurately observe
and compare the parameters.
Actuation Test
Actuation test is another basic diagnostic
functions that G-scan Tab provides. Users can
check the control unit's operation by activating or
deactivating the operation of an active
component under control unit's command.
Special Functions
In addition to the basic functions of DTC
read/erase, Live Data, Actuation Test and ECU
info, G-scan Tab provides various coding,
learning, reset and Initializing functions.
