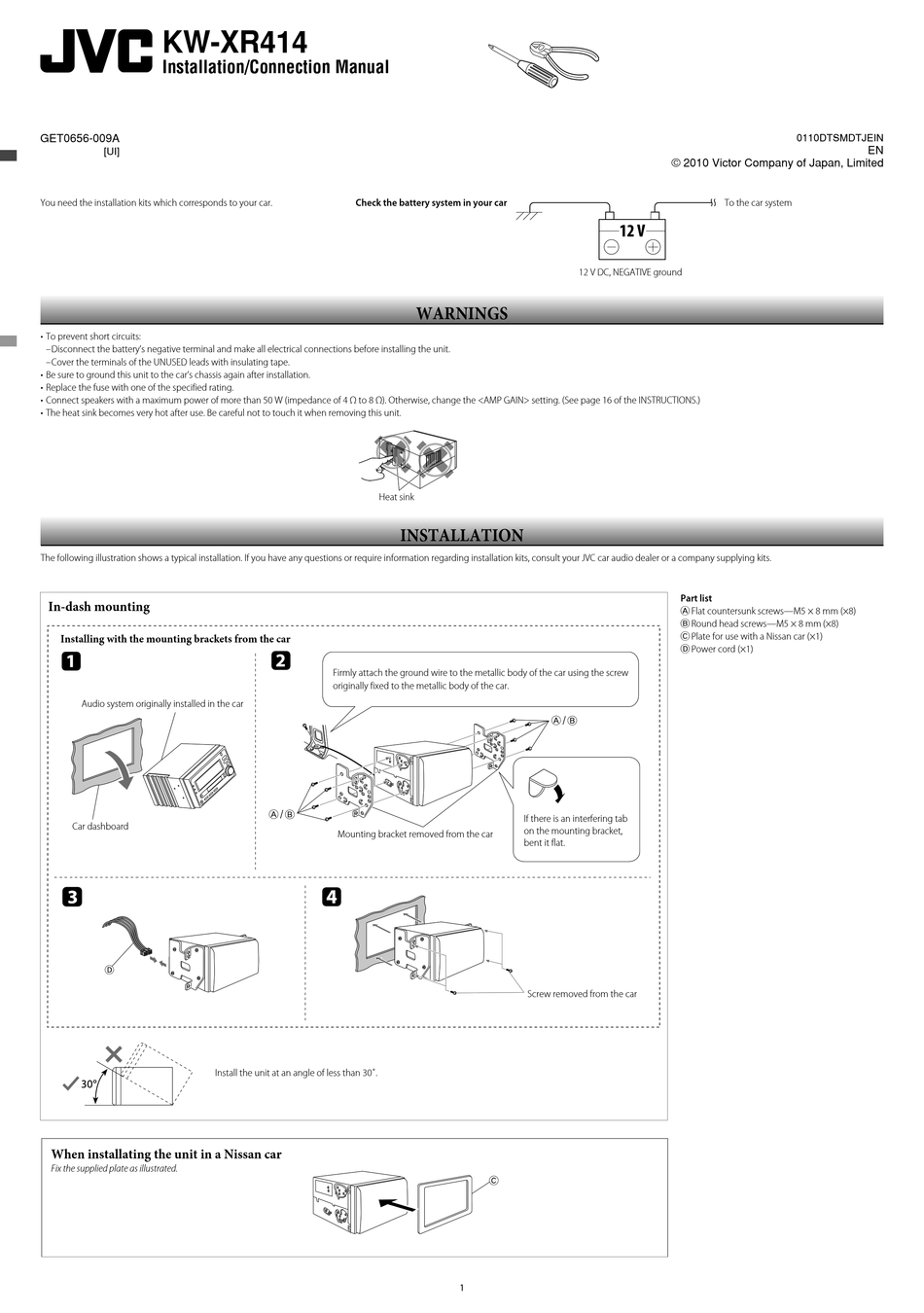

JVC KW-XR414 Installation & Connection Manual

KW-XR414
Installation/Connection Manual
GET0656-009A
[UI]
You need the installation kits which corresponds to your car.
• To prevent short circuits:
– Disconnect the battery's negative terminal and make all electrical connections before installing the unit.
– Cover the terminals of the UNUSED leads with insulating tape.
• Be sure to ground this unit to the car's chassis again after installation.
• Replace the fuse with one of the specified rating.
• Connect speakers with a maximum power of more than 50 W (impedance of 4 Ω to 8 Ω). Otherwise, change the <AMP GAIN> setting. (See page 16 of the INSTRUCTIONS.)
• The heat sink becomes very hot after use. Be careful not to touch it when removing this unit.
The following illustration shows a typical installation. If you have any questions or require information regarding installation kits, consult your JVC car audio dealer or a company supplying kits.
In-dash mounting
Installing with the mounting brackets from the car
Audio system originally installed in the car
Car dashboard
When installating the unit in a Nissan car
Fix the supplied plate as illustrated.
Check the battery system in your car
Heat sink
Firmly attach the ground wire to the metallic body of the car using the screw
originally fixed to the metallic body of the car.
Mounting bracket removed from the car
Install the unit at an angle of less than 30˚.
WARNINGS
INSTALLATION
If there is an interfering tab
on the mounting bracket,
bent it flat.
Screw removed from the car
1
© 2010 Victor Company of Japan, Limited
To the car system
12 V DC, NEGATIVE ground
Part list
A Flat countersunk screws—M5 × 8 mm (×8)
B Round head screws—M5 × 8 mm (×8)
C Plate for use with a Nissan car (×1)
D Power cord (×1)
0110DTSMDTJEIN
EN
