Interlogix NS3552-16P-2T-2S Quick Installation Manual page 3

Display of the current IP Address
1. At the "#" prompt, enter "show ip interface brief".
2. The screen displays the current IP address shown in
Figure 4.

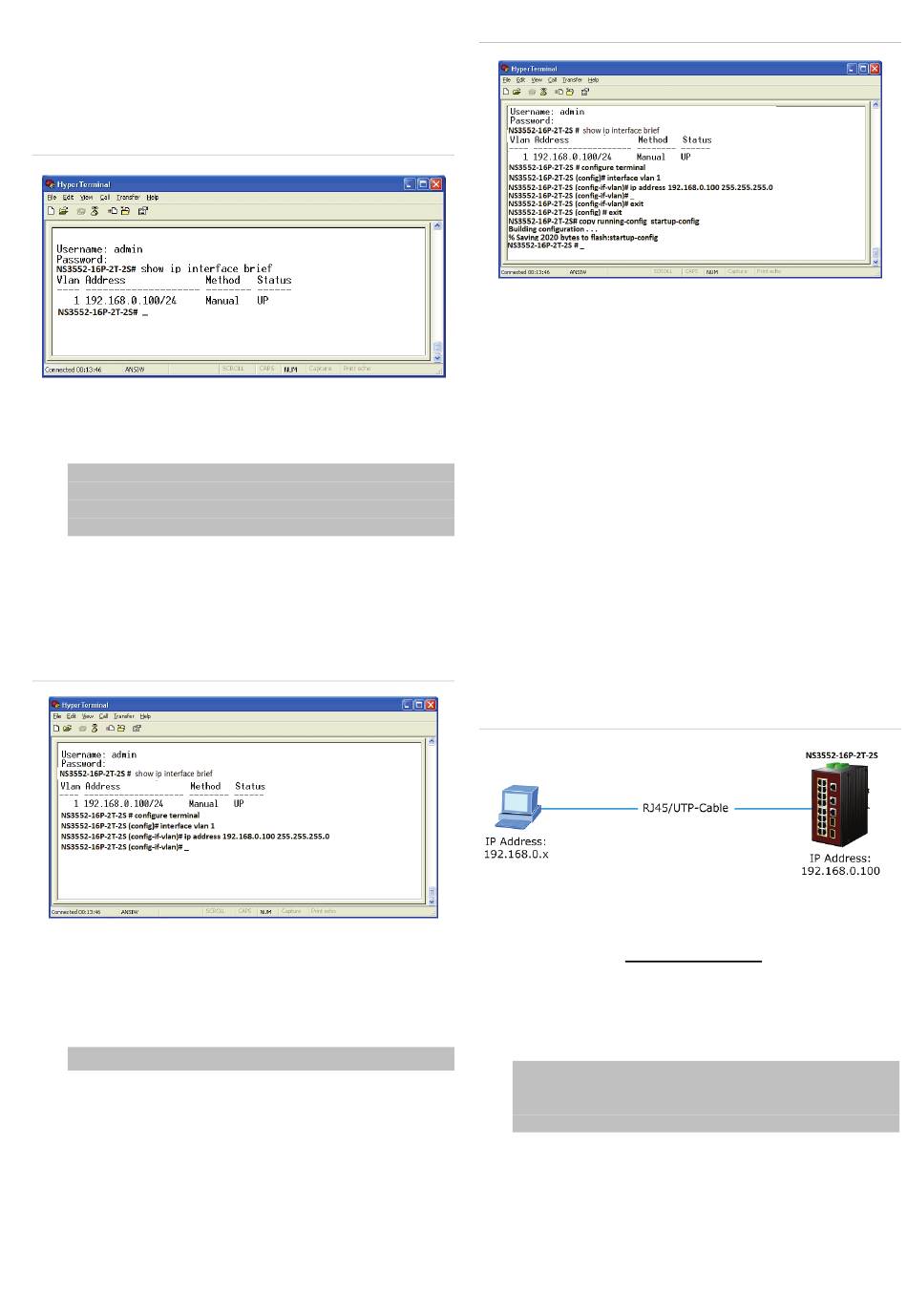

Figure 4: IP Information Screen
Configuration of the IP Address
3. At the "#" prompt, enter the following command and press
<Enter> as shown in Figure 5.
NS3552-16P-2T-2S# configure terminal
NS3552-16P-2T-2S (config)# interface vlan 1
NS3552-16P-2T-2S (config-if-vlan)# ip address 192.168.1.100
255.255.255.0
The previous command would apply the following settings
for the Industrial Managed Switch.
IP Address: 192.168.1.100
Subnet Mask: 255.255.255.0
Figure 5: Configuring IP Address Screen
4. Repeat step 1 to check if the IP address has changed.
Store the current switch configuration
5. At the "#" prompt, enter the following command and press
<Enter>.
# copy running-config startup-config
P/N 1073222-EN • REV A • ISS 21SEP16
Figure 6: Saving Current Configuration Command Screen
If the IP is successfully configured, the Industrial Managed
Switch will apply the new IP address setting immediately. You
can access the Web interface of the Industrial Managed Switch
through the new IP address.
Note: If you are not familiar with the console command or the
related parameter, enter "help" anytime in console to get the
help description.
7. Starting Web Management
The following shows how to start up the Web Management of
the Industrial Managed Switch. Note the Industrial Managed
Switch is configured through an Ethernet connection. Please
make sure the manager PC must be set to the same IP subnet
address.
For example, the default IP address of the Industrial Managed
Switch is 192.168.0.100, then the manager PC should be set
to 192.168.0.x (where x is a number between 1 and 254,
except 100), and the default subnet mask is 255.255.255.0.
Figure 7: IP Management Diagram
Logging in to the NS3552-16P Switch
1. Use Internet Explorer 8.0 or above for Web browser and
enter IP address http://192.168.0.100 (the factory-default
IP address) to access the Web interface.
2. When the following dialog box appears, please enter the
default user name "admin" and password "admin" (or the
password you have changed before) as shown in Figure 8.
Default IP Address: 192.168.0.100
Default User Name: admin
Default Password: admin
3 / 4
