Karmann-Mobil Dexter 580 2020 Operating Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Dexter 580
Operating Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dexter 580 2020 and is the answer not in the manual?

Questions and answers

Related Manuals for Karmann-Mobil Dexter 580 2020

Summary of Contents for Karmann-Mobil Dexter 580 2020

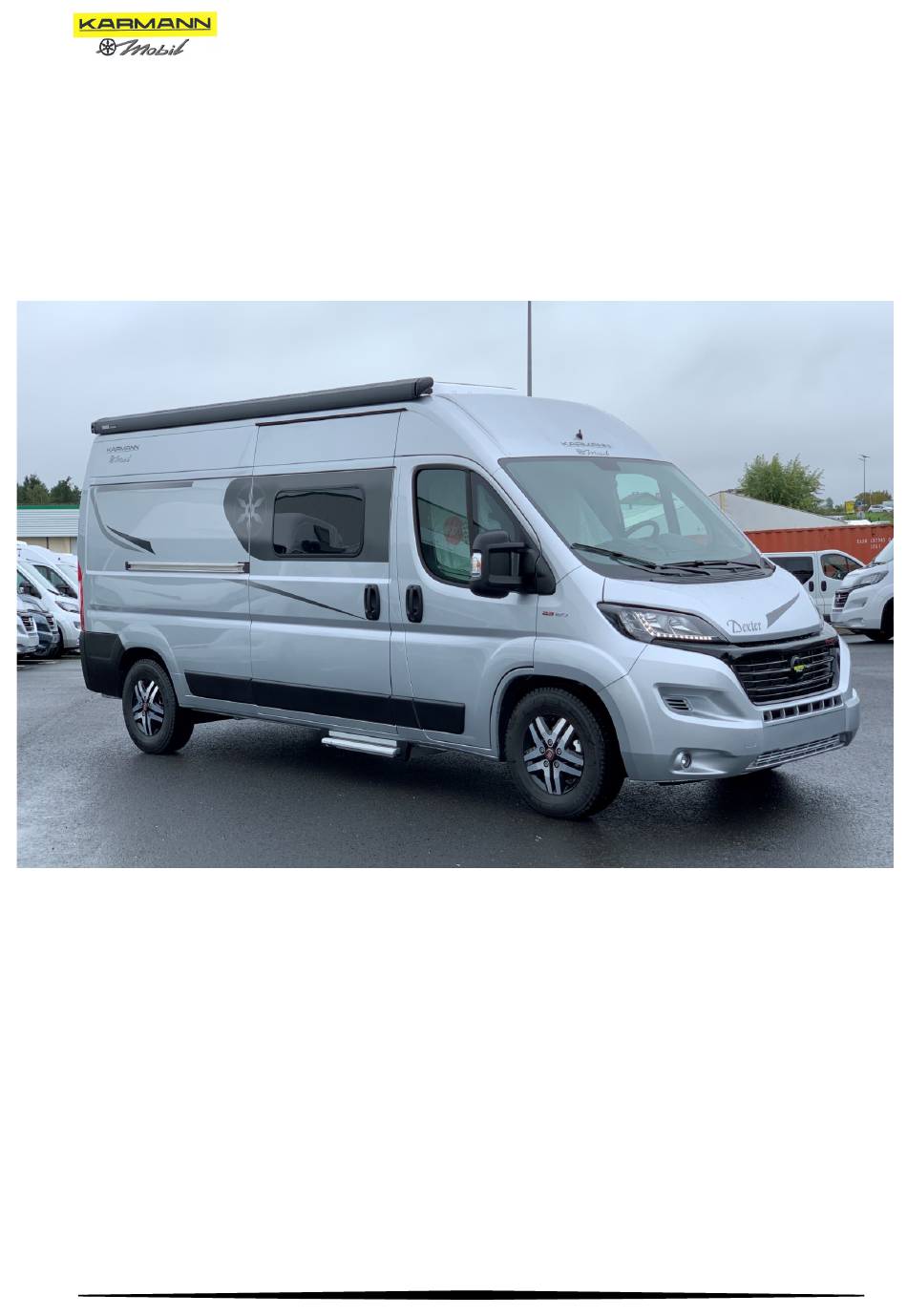

  • Page 1 Dexter 580 Operating Manual...
  • Page 2 Page |...

  • Page 3: Table Of Contents

    CONTENTS Introduction Page 5 Passenger transport Page 9 Rights and duties Page 11 Water system Page 13 Gas system Page 21 Electric system Page 25 Heating system Page 33 Toilet Page 37 Electrical appliances Page 43 Openings Page 49 Shut-down in winter Page 55 Maintenance Page 61...
  • Page 4 Page |...

  • Page 5: Introduction

    INTRODUCTION Page |...
  • Page 6 Dear customer, We would like to thank you for your trust in the Karmann-Mobil brand, which you have demonstrated by buying your recreational vehicle. Many years of experience and know-how form the basis of this unique concept of a vehicle, which is positioned between an everyday vehicle and a motorcaravan.
  • Page 7 With the delivery of your vehicle from Karmann-Mobil you also received a package. In this package you will find instructions for all parts of the electric appliances from the respective manufacturer. Make sure to read these instructions prior to use of your vehicle.
  • Page 8 Page |...

  • Page 9: Passenger Transport

    PASSENGER TRANSPORT 1 – Seatbelt usage Your vehicle is equipped with a certain number of seats for travelling. This number of seats is specified in the vehicle registration card. These seats are identified by icons on each bench. The passengers must use the identified seats during travelling. The seatbelts must be placed and fastened on both the seats facing the direction of travel and facing away from the direction of travel.
  • Page 10 Seat facing the direction of travel and facing away from the direction of travel, equipped with three-point seat belt. OBLIGATORY USE OF SEAT BELTS The equipment and appliances in the living room of the motorcaravan may only be used while the vehicle is standing still. Their use during travel could violate the applicable road traffic regulations and poses risks the user must be aware of.

  • Page 11: Rights And Duties

    RIGHTS AND DUTIES Waste water can only be drained at dedicated locations like roadside service areas, waste disposal stations or public and private sanitary facilities. Attention: Public storm sewers must not be used for drainage as they are not designed to clean waste water.

  • Page 12: Water System

    WATER SYSTEM Page |...
  • Page 13 1 – Water circuit Fresh water Hot water Fresh water Waste water Kitchen sink Pump Hot water heater Shower cubicle Wash basin Toilet Draining fresh Draining the Draining waste boiler water Cassette waste water holding tank Waste water must only be drained at locations which are fully equipped for this purpose (caravan parks, waste disposal stations, etc.).
  • Page 14 In winter, this tank remains free of ice as long as the motorcaravan is heated. It can be drained via a manual drain valve. The fresh water level sensor measures the amount of water inside the tank. The control panel shows the filling level in percent. The fresh water tank is filled by a hose without a connection piece via the plug on the front left side of the vehicle.
  • Page 15 4 – Draining the fresh water Turn off the power at the control panel. Open the fresh water drain valve. The drain valve is located in the front storage space that can be accessed through the flap under the table. Open all taps to ensure complete drainage.
  • Page 16 • Filling the boiler The entire water supply system must be rinsed with clean water before first use. Check whether the rotary knob of the drain valve (Frost Control), which is located in the rear left-hand box, is in the “Operation” position, i.e.
  • Page 17 The water from the boiler is now drained outside via the drain valve. Place a container under the outlet to ensure that the boiler has been completely emptied (about 10 litres). If the temperatures drop below 3°C, the Frost Control safety/drain valve opens automatically and empties the boiler.
  • Page 18 Waste water can only be drained at dedicated locations like roadside service areas, waste disposal stations or public and private sanitary facilities. For safety reasons and to maintain the warranty, changes of the water system must only be made by authorised dealers with the written consent of Karmann-Mobil. Page |...
  • Page 19 Page |...

  • Page 20: Gas System

    GAS SYSTEM Page |...
  • Page 21 1 – Gas circuit Gas pressure regulator Supply line to the cooking hob Propane gas cylinder (6 kg) 2 Commissioning Your vehicle can hold two butane gas cylinders weighing 6 kg each (not included in the scope of delivery). The cylinders can be placed in the left-side box in the rear storage room.
  • Page 22 It is absolutely necessary to carry out an annual inspection of the entire system by an expert specialist. For this purpose please consult your authorised Karmann-Mobil dealer. For safety reasons and to maintain warranty, changes to the gas system must only be made by authorised dealers with the written consent of Karmann-Mobil.
  • Page 23 Page |...

  • Page 24: Electric System

    ELECTRICAL SYSTEM Page |...
  • Page 25 1 – Electric circuit INT. Battery charger Thermal RCD circuit breaker Fuse box Automatic circuit- Automatic circuit-breaker breaker Safety fuse (50 A) Fuses (50 A) Fresh water tank Engine battery B2 Waste water Engine battery B1 fill level sensor fill level sensor 2 –...
  • Page 26 3 – Electric power supply 230 V In order to supply your vehicle with 230 V, the vehicle must be connected via a standardised CEE-coupling on the left side of the vehicle. It is recommended to use a three-core supply line with sufficient cross-section (3 x 2.5 mm ) and a length of max.
  • Page 27 These batteries supply all the appliances in the living room which are powered with 12 V voltage (lighting system, water pump, etc.). • Battery charger The battery charger is located in the rear box on the right side. It is used for charging the batteries. It runs permanently and converts the 230 V voltage to 12 V.
  • Page 28 This results in a considerable decline in battery power and has a negative effect on the electric components, especially the distribution module. The Karmann-Mobil warranty does not apply in cases of exhaustive/total discharge. Page |...
  • Page 29 5 – Fuses 12 V Open the plastic cover to gain access to the fuses. Close the cover again after the procedure. Distribution module Fuse holder F1 - Free slot Refrigerator F2 – Refrigerator resistor (not in use) Heating F3 – Heating (not in use) Slot for TV (optional) F4 –...
  • Page 30 Do not smoke when working on the living room battery. Switch off all appliances and all lights. For safety reasons and to maintain the warranty, changes of the electrical system must only be made by authorised dealers with the written consent of Karmann-Mobil. Page |...
  • Page 31 Page |...
  • Page 32 HEATING Page |...
  • Page 33 1 – Ventilation circuit Exhaust air Silencer COMBI TRUMA D6 heater (can be used without upgrade up to an altitude of 1,500 m) Warm air output Diesel tank Cold air intake 2 – Operation The heater is installed in the rear box on the left side and is powered with diesel fuel. The heater takes the fuel directly from the fuel tank and warms the cold air drawn from the living room.

  • Page 34: Heating System

    Make sure that the air vents and intake grilles remain unobstructed. At least one of the air intake grilles of the vehicle should be without a flap. The heating system is controlled by the control panel, which is located above the kitchen block. •...
  • Page 35 • Faults In the event of a fault, the Truma CP+ controller immediately switches to the “Fault” menu and shows the error code of the fault. Refer to the manual of the Truma CP+ controller for information about troubleshooting and instructions for correction. After the problem has been detected and corrected, reset the system by keeping the rotary/pressure switch pressed for at least four seconds to switch off the unit.

  • Page 36: Toilet

    Toilet Page |...
  • Page 37 1 – Toilet installation Fresh water Pump + Filter Toilet Cassette waste holding tank 2 – Use The toilet system in your vehicle consists of a toilet bowl with flushing and an emptying tank (cassette). • Toilet bowl The toilet bowl can be swivelled and is equipped with a folding seat and lid. There is a latch underneath the seat that lets you open a slider in order to empty the toilet bowl.
  • Page 38 The toilet bowl can be flushed after use by activating the flush button above the control panel behind the seat. The fill level of the cassette can be checked using the control light on the left side behind the toiler bowl. Button for toilet flushing Indicator for the cassette fill level Swivel the toilet bowl into a comfortable position before use.
  • Page 39 The cassette is accessible via a flap on the rear left side of vehicle. The cassette becomes visible when opening the rear door. - Before you remove the cassette, make sure that the slider of the toilet bowl is firmly closed, then open the door by pressing both buttons.
  • Page 40 - Pick up the cassette in such a way that you can press the ventilation button with your thumb while emptying the cassette. This will avoid splashing of the cassette content. - Tilt the cassette over a suitable container. Rinse with clear water. - After the cassette is emptied, reinsert the cassette into its enclosure.
  • Page 41 Page |...
  • Page 42 ELECTRICAL HOUSEHOLD APPLIANCES Page |...
  • Page 43 1 – Cooking hob • Using the cooking hob - In order to start and operate the cooking hob, open the main stopcock of the gas cylinder. - Fold up the cover of the cooking hob before turning on the hob. The folded up cover can be secured with a hook on the side of the refrigerator.
  • Page 44 2 – Refrigerator Your vehicle is equipped with a compressor refrigerator made by Thetford. The refrigerator is designed to operate with 12 V DC. The refrigerator allows you to store fresh food. You may also store frozen food in the freezer compartment. Temperature selection button Night mode button On/Off button...
  • Page 45 • Defrosting the cooling compartment Over time, frost builds up on the cooling fins. Once the ice layer has a thickness of approx. 3 mm, the refrigerator needs to be defrosted. Condensation water is collected into a container. The container is located on the rear side of the refrigerator.
  • Page 46 • Care The refrigerator can be cleaned with a commercial domestic cleaning agent. Avoid scouring agents. • Tips on saving energy - At an average outside temperature of 25 °C, it is sufficient to set the temperature controller to an intermediate position.
  • Page 47 Page |...

  • Page 48: Openings

    OPENINGS Page |...
  • Page 49 1 – Windows • Window adjustment devices The side windows of your vehicle are all equipped with adjustment devices that allow opening in two different positions. To open the window, unlock the lever by turning it a quarter turn toward the left to the vertical position.
  • Page 50 • Window activation switch The rear left window is fitted with an activation switch. If the window is open, the heater is switched off to make sure that the burnt gas—which is discharged through a grille below the window— does not enter the vehicle.
  • Page 51 3 – Blinds and insect screens • Blinds and insect screens on the window To close the blind, pull it up until it engages in the top lock. The insect screen is rolled and fixed in the reverse direction. Insect screen Blinds •...
  • Page 52 First, unlatch the handles on each side by pressing into the notches and pull the handles towards the centre. Then connect the blinds in the middle of the windscreen. Both handles are equipped with magnets and can be connected to each other. •...
  • Page 53 To open a door, press the push button until it clicks. The door lock opens when you release the push button. The push button pops out and can now be used as a handle for opening the door. To close the door, press the push button again until you can hear a click, and then release it. The upper storage compartments in the living room can be opened with a handle.

  • Page 54: Shut-Down In Winter

    SHUT-DOWN IN WINTER Page |...
  • Page 55 1 – Water The water system must be drained completely to avoid the risk of mould formation or frost. • Draining fresh water Turn off the power at the control panel. Open the fresh water drain valve. Open all taps to ensure complete drainage. To finish the draining process, start the pump and let it run for some time, keeping the taps open during this time.
  • Page 56 2 – Gas Before the shut-down for a longer period of time, it is highly recommended to disconnect the gas cylinders and to store them in a well ventilated place. Close the gas supply on the cylinder, disconnect the main stopcock and undo the fastening of the cylinders, so that you can take them out of their compartment.
  • Page 57 Central locking system Ground terminal 4 – Toilet • Toilet bowl Use mild soap or washing-up liquid to clean the toilet bowl, the seat and the lid as well as the outside of the toilet. Never use cleaning agents containing chlorine, solvents or other corrosive components. •...
  • Page 58 Lubricate joints and hinges. Never use abrasive means (sand paper, scouring pads, etc.) or alcohol-based cleaning agents. Close the window and the skylights properly (do not close the blinds). Take up cushions and mattresses and store them in a dry place. Open all cabinet doors to vent all cabinets.
  • Page 59 Page |...
  • Page 60 CARE Page |...
  • Page 61 1 – Wash room All sanitary facilities must be cleaned regularly in order to avoid any risk of mould formation. Use a damp sponge and washing-up liquid or soapy water for the wash basin, the shower cubicle and the toilet bowl. Use a sponge and a stainless steel detergent for the kitchen sink.
  • Page 62 3 – Openings • Window panes Clean the windows and skylights with a commercially available washing-up liquid. Never use abrasive means (sand paper, scouring pads, etc.) or alcohol-based cleaning agents. • Seals and gaskets Clean seals and gaskets with a moist sponge and conventional washing up liquid. Thoroughly rinse and dry after cleaning.
  • Page 63 5 – Furnishings Clean furniture with a dry, soft, antistatic dust cloth. The hard-fibre table must be cleaned with a moist sponge and conventional detergent. Dry the hard- fibre table well after cleaning with a damp cloth. Never use abrasive means (sand paper, knife, etc.). Use a clean sponge to avoid the formation of streaks.

  • Page 64: Miscellaneous And Accessories

    MISCELLANEOUS AND ACCESSORIES Page |...
  • Page 65 1 – Bed in the living room The front living room of your vehicle can be converted into a third sleeping area. Fold the foot of the table by pressing the push button so that the table top is at the same height as the seat bench.
  • Page 66 2 – Table in living area The table in the living room is removable and the support base allows incremental height adjustment. The table can be extended by adding a foldable element. The support at the rear of the kitchen block allows the table from the living area to be set up outdoors.
  • Page 67 4 – Awning (optional) To extend the awning, operate the hand crank. Extend the two support legs and adjust the desired height of the awning using the locking mechanism in the respective detent. Do not use the awning in a strong wind. Do not forget to retract the awning before moving the vehicle.
  • Page 68 6 – TV set (optional) The flat screen TV set can be operated independently with 12 V or 230 V. Please follow the manufacturer’s instructions regarding the connection. By an articulated arm which is attached to the side of the wardrobe the TV set can be set up to watch television from any location in the living room.
  • Page 69 13 – Notes on safety Optional accessories are not included in the empty weight of your vehicle. Therefore, accessories must be taken into account when loading and calculating the total weight of your vehicle. Basic information: - Awning: 30 kg - Bicycle carriers (unloaded): 7.2 kg All accessories may only be used for their intended purpose, otherwise there is a risk of an accident to occur.

  • Page 70: Troubleshooting

    Troubleshooting Page |...
  • Page 71 The following list of possible faults which may potentially occur on different appliances in your vehicle and their causes is by no means complete. If everything seems to be normal but the problem still persists, please contact the customer service of your authorised dealership.
  • Page 72 - The fresh water tank drain valve is open. - The waste water tank is full. - The waste water tank drain valve is open. - The drain valve of the boiler is open. 2 – Gas system • One or several gas-powered appliances do not work. - The gas supply of the cylinder is closed or separated.
  • Page 73 5 – Toilet • The slider does not work. - The cassette is full. - The cassette is not correctly locked. • The toilet cannot be flushed. - The fresh water tank is empty. - Pump is idling because air has accumulated in the system. - The cassette is not correctly locked.
  • Page 75 Model year 2020...
