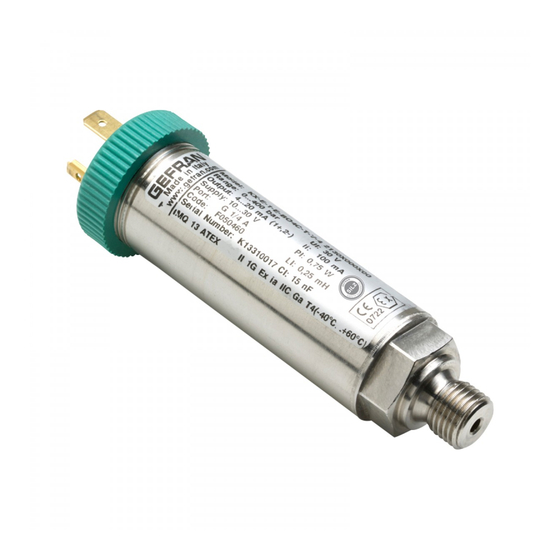

This manual is related to KX Series pressure transmitter, SIL2 certified according to the
standard IEC/EN62061 with Report No. FS 28713306 from TÜV Rheinland.
85196B_MAN_Installazione_Elettrica_Sonde_di_Pressione_Serie KX-SIL2_09-2020_ENG
Manual of Electrical Installation
for Pressure Probes KX-SIL2 Series
Code
85196B
Edition 09/2020
pag 2
pag 2
pag 2
pag 3
pag 3
pag 4
pag 5
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KX-SIL2 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for gefran KX-SIL2 Series

Summary of Contents for gefran KX-SIL2 Series

  • Page 1: Table Of Contents

    Manual of Electrical Installation for Pressure Probes KX-SIL2 Series Code 85196B Edition 09/2020 Contents 1. General precautions pag 2 2. Transmitters with analog output 4-20 mA pag 2 pag 2 Standard installation pag 3 Electrical connections pag 3 Interfaces with SRP/CS and current devices 3.

  • Page 2: General Precautions

    1. General Precautions The system must be used only in accordance with the required protection level. The sensor must be protected against accidental knocks and used in accordance with the instrument’s ambient characteristics and per- formance levels. The sensors must be installed in accordance with the electrical characteristics and the safety and installation instructions as specified in the document 80534 “SAFETY NOTE KX”...

  • Page 3: Electrical Connections

    Electrical connections AMPLIFIED CURRENT OUTPUT - mod. E cod. V cod. P cod. F cod. E/M cod. Z CONTROLLER POWER SUPPLY Yellow or Black SIGNAL AMPL/CONV Interfaces with SRP/CS and current devices The interface with SRP/CS (Safety Related Part of a Control System) is made by mean of multipolar connectors showed on pictures below, where the connections are specified for amplified current output with 2 wire system.

  • Page 4: Technical Specifications

    3. Technical Specifications Output signal Current 4-20 mA (2 wire system) Accuracy (1) ± 0.15% FS typical; ± 0.2% FS max Non Linearity <± 0.1% FS BFSL Hysteresis <± 0.1% FS Repeatability <± 0.05% FS Pressure ranges from ±1 bar to 1000 bar (see table) Resolution Infinite Overpressure (without degrading performance)

  • Page 5: Safety (Content According To Iec/En 62061 Paragraph 7)

    4. Safety (content according to IEC/EN 62061 paragraph 7) Restrictions on use The device in order to remain compliant with the designated category should be used only as indicated in these instruc- tions and as required in the operating manual concerning mechanical installation, electrical connection, environmental conditions and usage limits.
  • Page 6 Installation and maintenance must be held in accordance with International installation and maintenance guidelines for explosive gas atmospheres, such as: • IEC/EN 60079-14 • IEC/EN 60079-17 • Other national guidelines/standard GEFRAN spa via Sebina, 74 25050 PROVAGLIO D’ISEO (BS) - ITALIA tel. 0309888.1 - fax. 0309839063 Internet: http://www.gefran.com...
