QE-1008_Instruction Manual_02-2014_ENG
QE1008
MAGNET MOUNT STRAIN SENSOR
INSTRUCTION MANUAL
Edition 02/2014
page 2
page 3
page 4
page 5
page 5
page 6
page 6
1
1
Advertisement
Related Manuals for gefran SENSOR MATE QE1008
Summary of Contents for gefran SENSOR MATE QE1008
- Page 1 QE1008 MAGNET MOUNT STRAIN SENSOR INSTRUCTION MANUAL Edition 02/2014 Index 1. Description page 2 2. Technical data page 3 3. Instructions page 4 4. Measuring of load distribution page 5 5. Measuring the tie bar bending for early tie bar fraction diagnosis page 5 6.

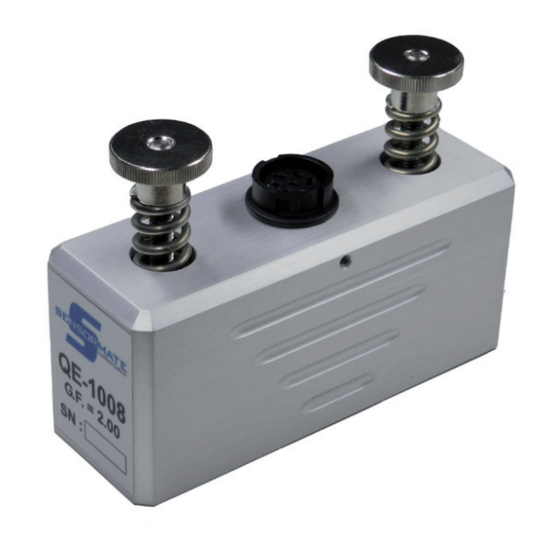

- Page 2 1. Description 1.1 Introduction The magnet-strain sensors type QE-1008 are latest generation extensometers with two integrated super magnets to measure the bending compensated tie-bar elongation and/or load ( load: if two extensometers are used on one tie bar). The improved design does not only make the sensor shorter, but also increases the absolute accuracy. Therefore all the sensors are interchangeable.
-
Page 3: Technical Data
2. Technical data 2.1 Sensor Strain gauge type Foil (GF = 2.0) Bridge resistance 350Ω Measuring range ± 800 με Sensitivity tolerance ± 0.2% Transverse sensitivity 0.9 ± 0.2 % Accuracy < ±0.5% FS Linearity < ± 0.5% FS Hysteresis <... - Page 4 3. Instructions IMPORTANT: These sensors are sensitive measuring instruments with a resolution of 0.001 mm (i.e.0.000004 mm respective to the gauge length). Please handle this instruments with the respective care. These instructions have to be read carefully by any user prior to application.
- Page 5 4. Measuring of load distribution (= load on each single tie bar) 4.1 Connect the sensors with the ‚Y’-cables to the digital monitor DU-4/D. The tie bar cable 1 should be connected to input 1 etc., switch on the monitor and push ‘RESET’. 4.2 Open and close the machine 2...4 times and press ‘RESET’...
-
Page 6: General Hints
6. General hints Do not close the machine with highest speed, as this may cause offset because of the strong vibration. If the display does consistently not display zero after releasing the reset button, (e.g. if it displays values between approx. ... - Page 7 Thank you very much that you have chosen our products and services. We are improving our products conti- nuously. If you have any hints for further improvements of our products, please contact us. Check also our homepage for further information QE-1008_Instruction Manual_02-2014_ENG...
- Page 8 Steigweg 8, - CH-8355 Aadorf, Switzerland ph: +41(0)52-2421818 - fax: +41(0)52-3661884 - Internet: http://www.sensormate.ch GEFRAN spa via Sebina, 74 - 25050 PROVAGLIO D’ISEO (BS) - ITALY ph. +39 030 9888.1 - fax. +39 030 9839063 - Internet: http://www.gefran.com QE-1008_Instruction Manual_02-2014_ENG...
