Appendix - Conel FLOW Series Operating Instructions Manual

FLOWTP30 with locked float switch (control panel always-on operation)
GC-P-FLOW-30-12-1101-JH1.indd 21

10. Appendix

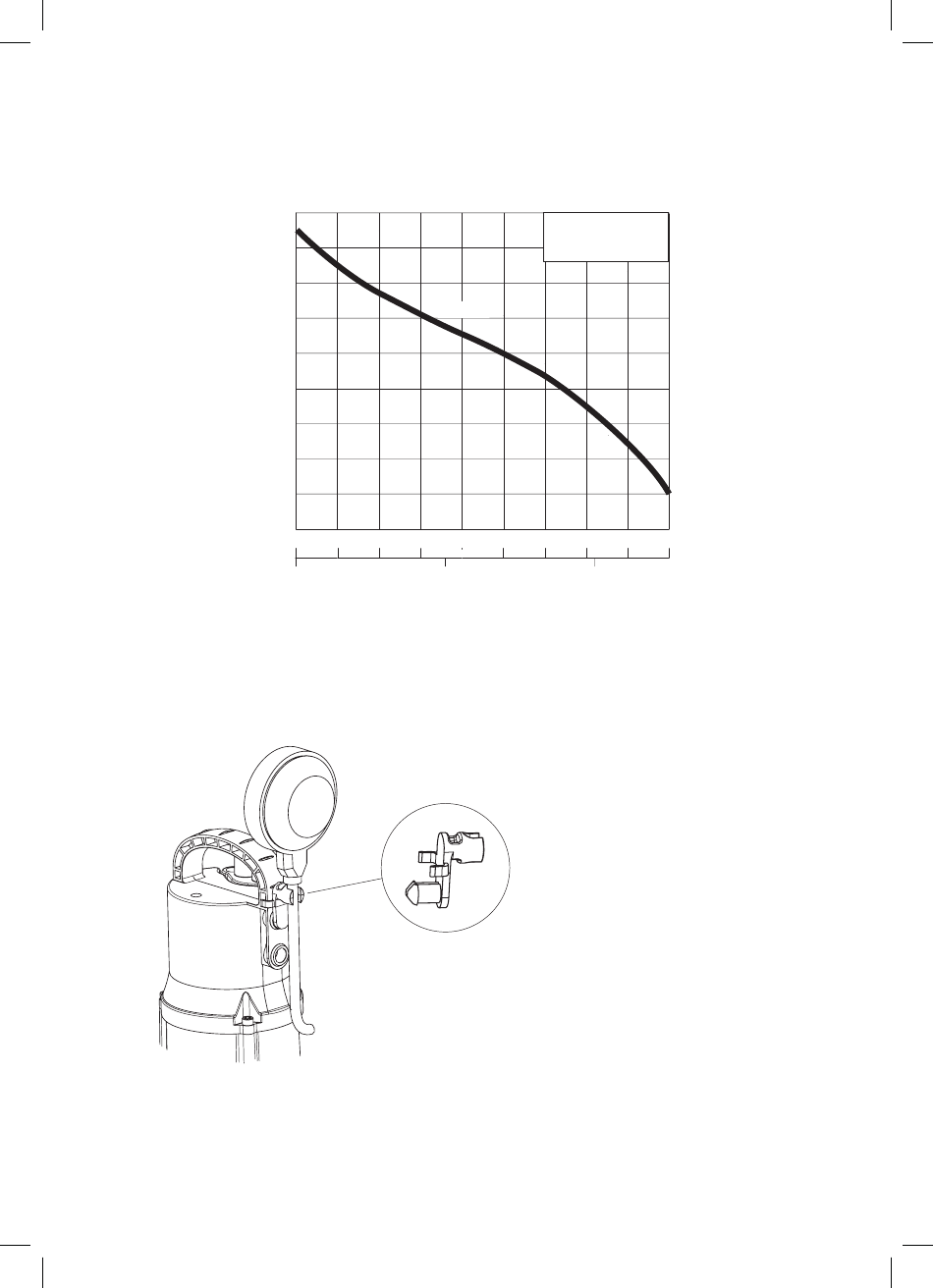

Pump Curve 50 Hz
9
H
(m)
8
7
G1¼" 6
5
4
3
G1½"
2
1
Q
0 2 4 6
(m /h)
3
(l/s)
0
199 mm
H = total head
Q = discharge volume
Curve to ISO 9906
TP 30
8 10 1 2 1 4
2 4
Figure 1
Control panel always-on:
>
Float switch mounting for
always-on operation.
> Can be easily fitted when
required.
> "Always-on" clip supplied
as standard.
