SINK ASSEMBLY ILLUSTRATIONS
ZURN LIGHT COMMERCIAL PLUMBING PRODUCTS 2855 GIRTS ROAD, JAMESTOWN, NY 14701
PHONE: 716-665-1131 FAX: 716-665-3126 World Wide Web: www.zurn.com
MS-2620

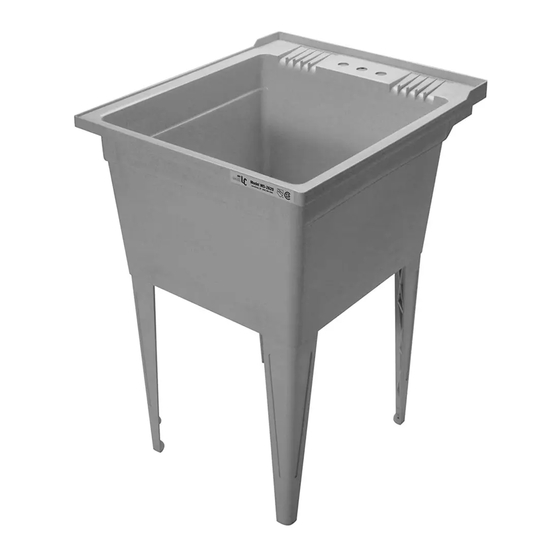

MULTI-PURPOSE SINK
Instructions:
Set laundry tub upside down on a
clean, smooth surface, this will help
prevent any damage to the tub rim.
Insert legs into corner sockets as
shown above. A wood block can be
used if needed. Turn tub right-side
up and adjust the provided leveling
stubs to desired height. Tub can now
be put in place, leveled, and water
supply connections added in accor-
dance with local water code require-
ments.
No.
Suffix
1
-F
Floor Mounted Multi Purpose Sink
2
-PL
Polyethylene Legs with leveling devices
3
-DF1
Dual Handle Deck Faucet
4
-AP
Accessory Package*
REV.
DWG. NO. JS54
* (-AP) Accessory
Package consists of the
following:
(1) Drying Rack
(2) Towel Bars
(1) Bottle Holder
(1) P-trap kit.
Description
DATE: 4/3/02
C.N. NO. 89103
PRODUCT NO. MS-
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ZURN MS-2620
Summary of Contents for ZURN MS-2620
- Page 1 Polyethylene Legs with leveling devices -DF1 Dual Handle Deck Faucet Accessory Package* REV. DATE: 4/3/02 C.N. NO. 89103 DWG. NO. JS54 PRODUCT NO. MS- ZURN LIGHT COMMERCIAL PLUMBING PRODUCTS 2855 GIRTS ROAD, JAMESTOWN, NY 14701 PHONE: 716-665-1131 FAX: 716-665-3126 World Wide Web: www.zurn.com...
- Page 2 Warranty No warranty is implied or given. Zurn Light Commercial shall not be responsible for any labor charges or any loss, injury or damages whatsoever, including incidental or consequential damages. Zurn Light Commercial agrees to repair or replace any part or parts which examination, by an authorized Zurn Light Commercial representative, proves to be defective in workmanship or material, within one year from date of purchase.
