NOTICE: READ ENTIRE MANUAL PRIOR TO INSTALLING PRODUCT.
AquaSense

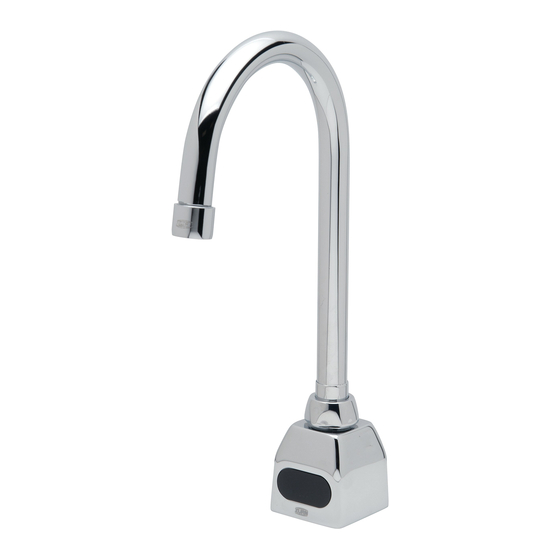

Z6920-XL and Z6922-XL Series
Sensor-Operated Lavatory Faucets for Battery,
Plug-In, or Hardwire Installations, Connected
Installation, Operation, Maintenance,
and Parts Manual
Patented and Patents Pending
LIMITED WARRANTY
®
Z6922-XL

Advertisement

loading
Need help?

Need help?

Do you have a question about the plumbsmart AquaSense Z6920-XL Series and is the answer not in the manual?

Questions and answers

Summary of Contents for ZURN plumbsmart AquaSense Z6920-XL Series

  • Page 1 AquaSense ® Z6920-XL and Z6922-XL Series Sensor-Operated Lavatory Faucets for Battery, Plug-In, or Hardwire Installations, Connected Installation, Operation, Maintenance, and Parts Manual Patented and Patents Pending Z6920-XL Z6922-XL WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov ADVERTENCIA: Cáncer y daño reproductivo - www.P65Warnings.ca.gov AVERTISSEMENT: Cancer et effets néfastes sur la reproduction - www.P65Warnings.ca.gov LIMITED WARRANTY All goods sold hereunder are warranted to be free from defects in material and factory workmanship for a period of three years from the...
  • Page 2 This Page Intentionally Left Blank...
  • Page 3 Aqua Sense Faucets Package Contents ® Z6920-XL-W1 (As Shown) Z6922-XL-W1 (As Shown) Spout Assembly Spout Assembly Aerator and Key Aerator and Key O-Ring for Base Base Gasket Shank Mounting Kit Electronics Box with Ceramic Valve Electronics Box with Ceramic Filter Valve Filter DC Adapter...
  • Page 4: Required Tools

    Z6920-XL-W2 (As Shown) Z6922-XL-W2 (As Shown) Spout Assembly Spout Assembly Aerator and Key Aerator and Key O-Ring for Base Batteries Batteries Base Gasket Hydrogenerator Shank Sensor Inline Mounting Kit Connector Electronics Box with Solenoid Hydrogenerator Filter Monitor (-W2 Only) Sensor Inline Connector Electronics Box with Solenoid...
  • Page 5 (2) this device must accept any interference received, including interference that may cause undesired operation. The following information refers to Zurn Smart Connected Products, types: -W1 and -W2. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference intended for use in non-residential/non-domestic environments.
  • Page 6 • Installer is responsible for ensuring the product is installed and conforms to all plumbing codes and ordinances. • Do not convert or modify this Zurn product yourself. All warranties will be voided. • Water supply lines must be sized according to building designer in order to provide adequate water supply for each fixture.
  • Page 7 Cover Plate Installation Instructions (Z6920 Only) 1. (For faucets with -CP4 or -CP8 suffix). Pass sensor connector wire and shank through gasket. Align gasket with faucet bottom and press firmly together. Pass sensor connector and shank through cover plate and fasten to the faucet with the provided screws.
  • Page 8 Endpoint & Electronic Module Installation Instructions (-ACA/-CWB) 2. Tighten electronics module assembly to shank and connect Remove the electronics module from box water line(s). Connect Sensor. 3b. Optional HW6 (Hardwired 6V) version: Connect supplied inline 3a. Optional ACA version: Connect supplied inline connector and connector and hardwire adapter.
  • Page 9 Optional MJ unit (sold separately) Note: Do not connect more than 3 boxes to a single transformer -HW6 F F A A U U C C E E T T F F A A U U C C E E T T B B L L A A C C K K /W /WH H IT ITE E S S T T R R I I P P E E...
  • Page 10 Electronics Module Installation Instructions (-HYD) Connect hydrogenerator(A) downstream of electronics 2. Connect sensor inline connector to electronics module and module(B) and filter(C) to bottom of electronics module. hydrogenerator. 3. Open battery module using supplied Allen wrench and install 4. Tighten electronics module assembly with hydrogenerator to supplied alkaline batteries in the electronics module.
  • Page 11 Endpoint & Electronic Module Installation Instructions (-W1) 1.a. Install endpoint on wall surface within 2 feet radius of faucet 2. Connect endpoint and DC power cable. with dry wall anchors & screws or doubled sided VHB tape 1.b. For concealed wiring installation, drill 3/16” hole in wall surface for DC power cable , route wire-end through hole to HW6 unit.
  • Page 12 5.c. Optional MJ unit (sold separately) Note: Do not connect more than 3 boxes to a single transformer -HW6 F F A A U U C C E E T T F F A A U U C C E E T T B B L L A A C C K K /W /WH H IT ITE E S S T T R R I I P P E E...
  • Page 13 Monitor & Electronic Module Installation Instructions (-W2) Connect hydrogenerator(A) downstream of electronics Connect sensor inline connector to electronics module and to module(B); connect the electronics module(B) downstream of the hydrogenerator. filter(C). Do not connect the electronic module to spout. Loosen lid screw with supplied 3mm Allen wrench. Open lid and install supplied lithium batteries.
  • Page 14 Tighten electronics module assembly with the hydrogenerator 8. Ensure that sink is clear of tools/debris and is in normal to shank and connect water line(s). operating condition. Remove protective film from sensor lens if one is present. 9. Turn on water supply(ies). 10.
  • Page 15 Install Zurn Gateway per the Gateway Instructions Manual Request plumbSMART Administrator Account at 844-987-6737 Zurn creates your Enterprise Account for you! (You will be required to identify your building location, number of floors, and number of rooms.) Log in to plumbsmart.zurn.com Register each Connected Product in plumbSMART (Watch How-To Videos to Get Started.
  • Page 16 Adjustable modes and features selection (-W2/-HYD) To adjust features from default configuration, you must remove the battery tray. Once battery tray is removed you will see the switches. Switch Position: Purge (Hours) Disable: Time (Seconds) Less Time-out Mode Select Sensing Mode: Metering Mode: All switches shown in default mode.
  • Page 17 Check to en- sembles to the faucet shank. sure the gasket is installed and not damaged. If not installed, install gasket. If gasket is dam- aged, replace with new For further assistance with troubleshooting visit http://www.zurn.com FV808 Rev. A 09/07/21 Page 17...
  • Page 18 If not installed, install to the faucet shank. gasket. If gasket is damaged, replace with new For further assistance with troubleshooting visit http://www.zurn.com FV808 Rev. A 09/07/21 Page 18...
  • Page 19 Charts Verify gateway is powered and LoRa Status LED is ON. If not, apply power per Zurn Gateway Installation Guide or see Gateway Troubleshooting section in this guide for other steps. Step 2 If problem still present, verify plumbSMART subscription status on product page’s Details tab listed as “Activated”...
  • Page 20 If LORA LED does not turn ON solid and ethernet cable connected, contact facility IT administrator to modify port rules to allow Zurn gateway to access the internet via local router. If gateway model is ETH/LTE, visually verify SIM card is installed in designated slot on the side of gateway.
  • Page 21 Filter and Mixing Valve Installation (All Configurations) Control Box Attach adapter or Braided Hose (-SSH) here with -MV and TMV-1 options P6900-120BC, Filter in standard faucet installation P6900-12BC Filter P6900-12BC Filter P6900-MV-ADAP [Supplied Adapter] for -MV & -TMV-1 Options -SSH Option Need to hold at pointed area by suitable To Control Box wrench or by hand while applying torque...
  • Page 22 Accessing the Solenoid (-W2/-HYD) To service solenoid use Phillips head screw driver to remove the With screws removed, the electronics box can slide off and allow screws on both sides of the electronics box. access to the solenoid for service. FV808 Rev.
  • Page 23 Z6920-XL-ACA/CWB & Z6922-XL-ACA/CWB Parts List Description Product No. Description Product No. Item 1: 5 3/8” Gooseneck Spout with Nut P6900-GB Item 7: Filter Screen P6900-MV-7 Item 2A: Z6920 No Lead Spout Base with Item 8: Mixing Valve with Filter P6900-MV-XL P6920-XL-2 Sensor Assembly Item 9: Composite Mixing Valve Adapter...
  • Page 24 Z6920-XL-HYD & Z6922-XL-HYD Parts List Description Product No. Description Product No. Item 1: 5 3/8” Gooseneck Spout with Nut P6900-GB Item 8: Shank Connection Gasket P6900-SG Item 2A: Z6920 No Lead Spout Base with Item 9: Solenoid Rebuilt Kit (Diaphragm and P6920-XL-2 P6950-SRK-V2 Sensor Assembly...
  • Page 25 Z6920-XL-W1 & Z6922-XL-W1 Parts List Description Product No. Description Product No. Item 1: 5 3/8” Gooseneck Spout with Nut P6900-GB Item 9: Filter Screen P6900-MV-7 Item 2A: Z6920 No Lead Spout Base with Item 10: Mixing Valve with Filter P6900-MV-XL P6920-XL-2 Sensor Assembly Item 11: Composite Mixing Valve Adapter...
  • Page 26 Z6920-XL-W2 & Z6922-XL-W2 Parts List Description Product No. Description Product No. Item 1: 5 3/8” Gooseneck Spout with Nut P6900-GB Item 8: Composite Mixing Valve Adapter P6900-MV-ADAP Item 2A: Z6920 No Lead Spout Base with Item 9: Shank Connection Gasket P6900-SG P6920-XL-2 Sensor Assembly...
  • Page 27 This Page Intentionally Left Blank...
  • Page 28 ZURN INDUSTRIES, LLC W. Freshwater Way, Milwaukee, WI U.S.A. 53204 · Ph. 1-855-ONE-ZURN, Fax 919-775-3541 In Canada: ZURN INDUSTRIES LIMITED 7900 Goreway Drive, Unit 10, Brampton, Ontario L6T 5W6, Ph. 905-405-8272, Fax 905-405-1292 ZURN.COM Rev. A Date: 09/07/21 C.N. No. 143900 Prod.
