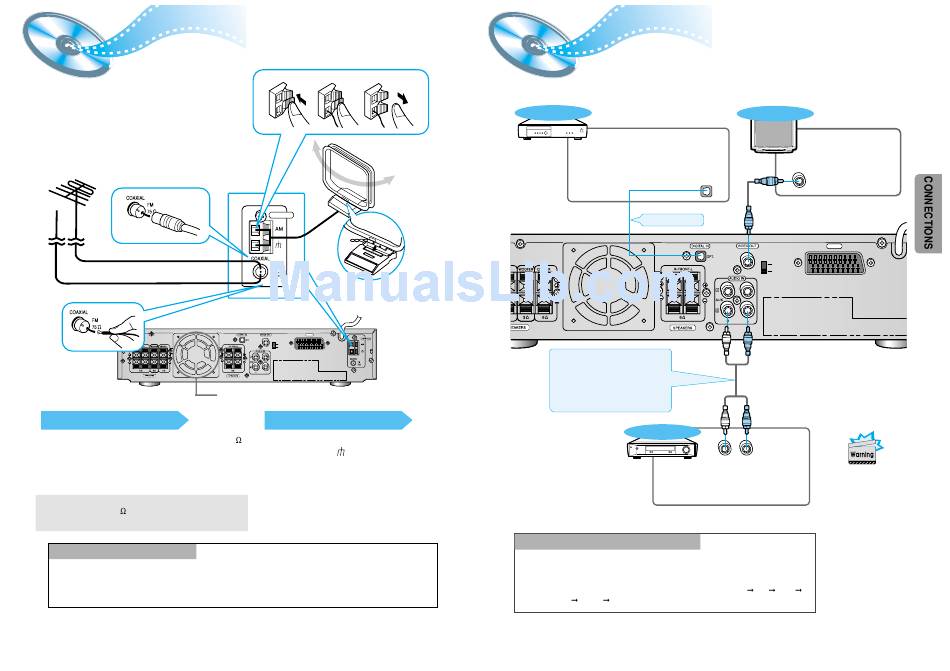

Connecting the FM and AM
If AM reception is poor, connect an
outdoor AM antenna(not supplied).
If FM reception is poor, connect an
outdoor FM antenna (not supplied).
FM Antenna (supplied)
FM antenna connection
1. Connect the FM antenna supplied to the FM 75
COAXIAL terminal.
2. Slowly move the antenna wire around until you
find a location where reception is good, then
fasten it to a wall or other rigid surface.
• If reception is poor, connect an outdoor antenna.
Before attaching a 75 coaxial cable (with a standard
type connector), disconnect the supplied FM antenna.
(About the cooling fan)
A cooling fan is mounted on the rear panel of the center unit to
prevent abnormal temperature inside the center unit, thus assuring
normal operation. The cooling fan automatically starts rotating to
supply external cool air to the inside of the center unit when the
internal temperature exceeds the specified limit.
11
Antennas
( MW/LW )
1
2
3
AM Loop Antenna
(supplied)
ANTENNA
Snap the tabs on the loop into the slots of the
base to assemble the AM loop antenna.
AV OUT
RGB
COMPOSITE
Cooling fan (See "About Cooling Fan" below.)
AM
antenna connection
(MW/LW)
1. Connect the AM loop antenna supplied
to the AM and
terminals.
2. If reception is poor, connect an outdoor
single vinyl-covered wire to the AM
terminal. (Keep the AM loop antenna
connected).
For safety, observe the following carefully.
• Make sure there is good ventilation around the center unit.
Poor ventilation could overheat and cause damage.
• DO NOT block the cooling fan and the ventilation openings or
holes. (If they are blocked by a newspaper or cloth, etc., the heat
may not be able to escape.)

AUX Connections

External Digital
Components
For connection to external
equipment with digital output.
Example: CD recorders, MD (Mini Disc) D/A
converters or other components equipped
with digital output jacks
DIGITAL OUT
(not supplied)
Optical Cable
Audio Cable (Red/White)
If the external analog
component has only one
output jack, you may connect
either L or R.
External Analog
Components
Connect to external equipment with
analog output.
Example: VCR, TV, etc.
To Play External Digital/Analog Equipment
Press AUX on the remote control to select DIGITAL IN, AUX1, or AUX2.
Press Function on the main unit to select DIGITAL IN, AUX1, or AUX2.
Each time the button is pressed the mode switches as follows: FM
DIGITAL IN
AUX 1
AUX 2.
TV
To view pictures from
external input, first
connect the VIDEO IN
VIDEO IN
jack and then connect the
VIDEO OUT jack.
AV OUT
RGB
COMPOSITE
R
L
Always connect the video and
audio connection cables to the
equivalent colored jack.
AM
DVD
12
