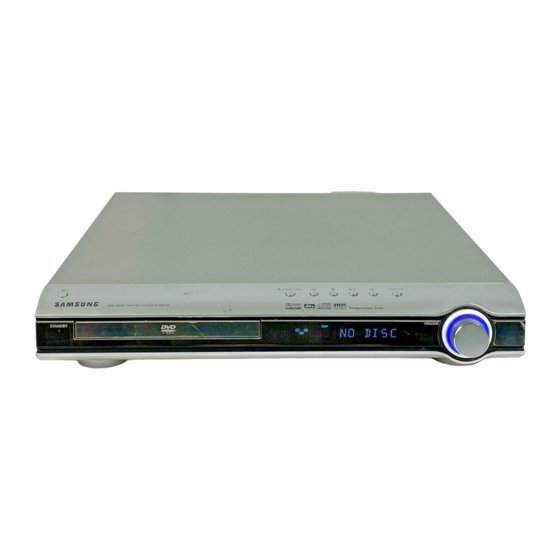

SAMSUNG ELECTRONICS AMERICA, INC. SERVICE DIVISION 400 Valley Road, Suite 201 Mount Arlington, NJ 07856 1-800-SAMSUNG (1-800-726-7864) www.samsungusa.com Instruction Manual AH68-01339K DIGITAL HOME THEATER SYSTEM HT-DB120 OPEN/CLOSE DIMMER REMAIN TUNER BAND EZ VIEW SLOW SUB TITLE MO/ST STEP DSP/EQ REPEAT...
(furniture), with enough space around it for ventilation (3~4inches). Make sure the ventilation slots are not covered. Do not stack anything on top of the player. Do not place the player on amplifiers or other equipment which may become hot.
The openings should never be blocked to the appliance. by placing the video product on a bed, sofa, rug, or Use only with a cart, stand, tripod, bracket, other similar surface. This video product...
TV Broadcast System • This device is designed to work with the NTSC video format. • For normal playback, the video format a DVD disc is recorded in must coincide with your TV's video format. Contents PREPARATION Safety Warnings...1 Precautions ...2 Safety Instructions ...3...
MP3 file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +). • If the name of a file is in Korean, the name will be displayed on the TV screen in Korean and * will be shown in the display of the main unit.
Connect the TV's video input jacks player's S-Video output jack. (VIDEO IN) to the VIDEO OUT connector. External Digital Component Input Connector Use this to connect external equipment capable of digital output. COMPONENT VIDEO OUTPUT jacks 5.1 Channel Speaker Connect a TV with component video inputs to these jacks.
Follow these precautions to avoid leaking or cracking cells: • Place batteries in the remote control so they match the polarity:(+) to (+)and (–)to (–). • Use the correct type of batteries.Batteries that look similar may differ in voltage.
Connecting the Speakers Before moving or installing the product, be sure to turn off the power and disconnect the power cord. Position of the DVD Player Selecting the Listening Position • Place it on a stand or cabinet shelf, or under The listening position should be located about 2.5 to 3 times...
Component Video (Best Quality) If your television is equipped with Component Video inputs, connect a component video cable (not supplied) from the Pr, Pb and Y jacks on the back panel of the system to the corresponding jacks on your television.
Connect the Digital Input (OPTICAL) to the Digital Output on the external digital component. Press AUX on the remote control to select ‘DIGITAL IN’. Each time the button is pressed, the selection changes as follows: DIGITAL IN ➝ AUX. • •...
• Do not obstruct the cooling fan or ventilation holes. (If the cooling fan or ventilation holes are covered with a newspaper or cloth, heat may build up inside the unit and fire may result.) terminals.
Note • Depending on the recording mode, some MP3-CDs cannot be played. • Table of contents of a MP3-CD varies depending on the MP3 track format recorded on the disc. Checking the Remaining Time Press the REMAIN button. • For checking the total and remaining time of a title or chapter being played.
Note • During fast playback of a CD or MP3-CD, sound is heard only at 2x speed, and not at 4x, 8x, and 32x speeds. • No sound is heard during slow playback and step motion playback.
Repeat Playback Repeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 file). JPEG Press REPEAT button. • Each time the button is pressed during playback, the repeat playback mode changes as follows: JPEG To Select a Repeat Playback Mode in the Disc Information Screen Press INFO button twice.
This function will not work if the DVD is recorded with multi-camera angle format. • Black bars may not disappear because some DVD discs have a built-in horizontal to vertical ratio. Zoom Function This function allows you to enlarge a particular area of the displayed image.
You can press control to move directly to the desired title, chapter, or track. • Depending on the disc, you may not be able to move to the selected title or time. to move a folder. (Stop) and Press Cursor , buttons to move to Chapter display.
JPEG File Playback Images captured with a digital camera or camcorder, or JPEG files on a PC can be stored on a CD and then played back with this DVD player. Slide Mode Place the JPEG disc on the disc tray.
Using the Title Menu For DVDs containing multiple titles, you can view the title of each movie. Depending on the disc, this function may either not work at all or may work differently. Press Cursor , Press MENU button to move to button.
