Curve D-DF Series Instruction, Operation And Maintenance Manual page 22

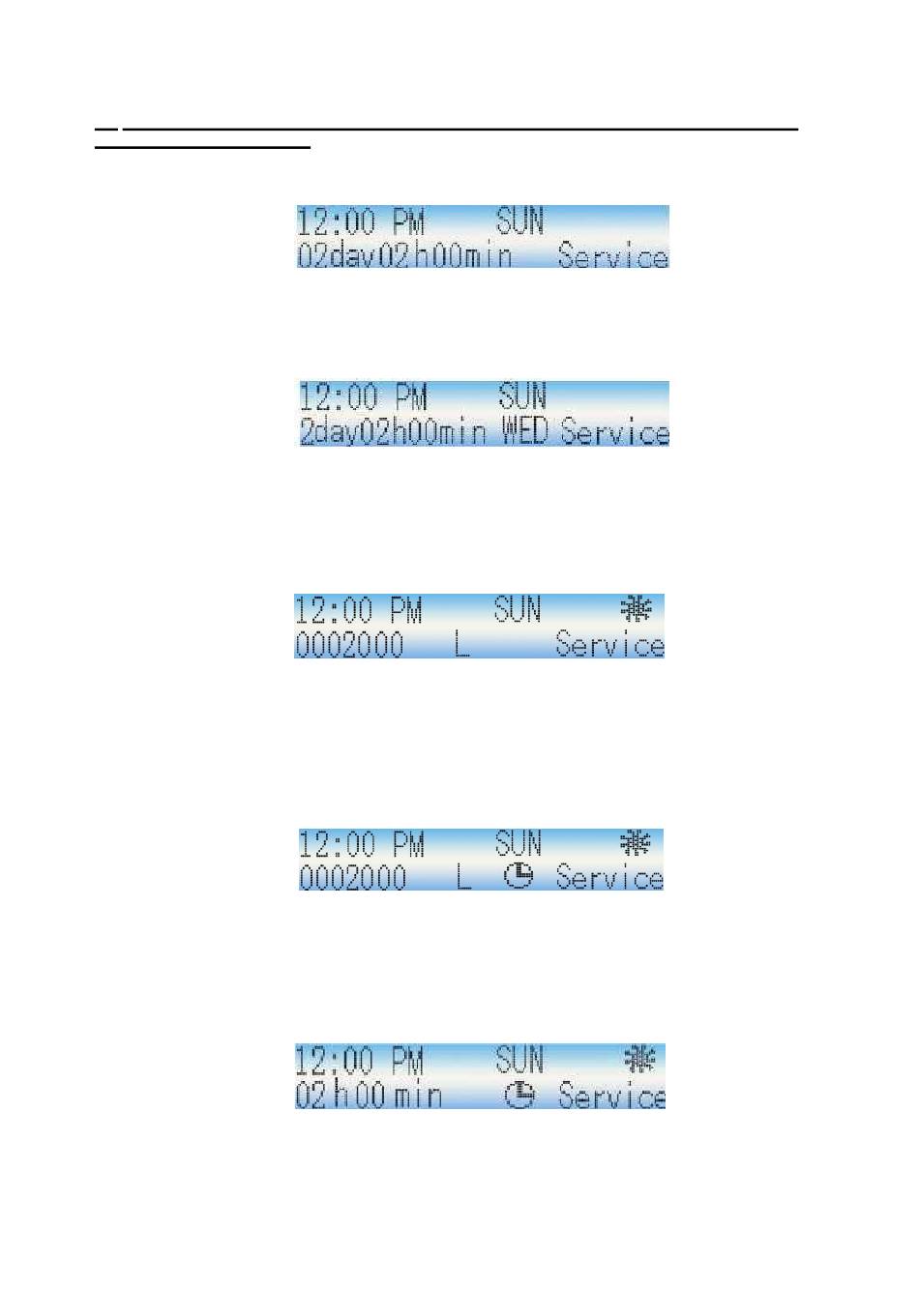

8. - INFORMATION DISPLAYED ON THE SCREEN DURING SERVICE PHASE, DEPENDING ON THE
CONFIGURATION SELECTED.
8.1. - CONFIGURATION: TIMED: Delayed clockwork.
8.2. - CONFIGURATION: WEEK: weekly clockwork.
8.3. - CONFIGURATION: METER IMM: Immediate Volumetric.
8.4. - CONFIGURATION: METER DELAY: Delayed volumetric.
When the meter reaches zero the display will show the following.
TIME OF DAY
TIME UNTIL THE
NEXT REGENERATION
TIME OF DAY
TIME & DAY UNTIL
THE NEXT
REGENERATION
TIME
OF DAY
AVAILABLE
VOLUME
TIME
OF DAY
AVAILABLE
VOLUME
TIME OF DAY
TIME AND DAY
UNTIL THE NEXT
REGENERATION
ref: MA-ED-0008-EN-V16.0-MIÑO DESCALCIFICADOR D-DF-M3 & D-UF-M3.pdf
DAY OF THE WEEK
STATE
DAY OF THE WEEK
STATE
DAY OF VOLUMETRIC
THE WEEK CONTOL
STATE
DAY OF VOLUMETRIC
THE WEEK CONTOL
DELAYED STATE
REG.
DAY OF THE VOLUMETRIC
WEEK CONTROL
STATE
22
