5.2. - WORK MODE CONFIGURATION
Valve D allows configuration of 4 different working modes:
MODE 1: TIMED - Chronometrical regeneration Work Mode.
The system will regenerate with the frequency of the days selected and the time established
(01-99 days)

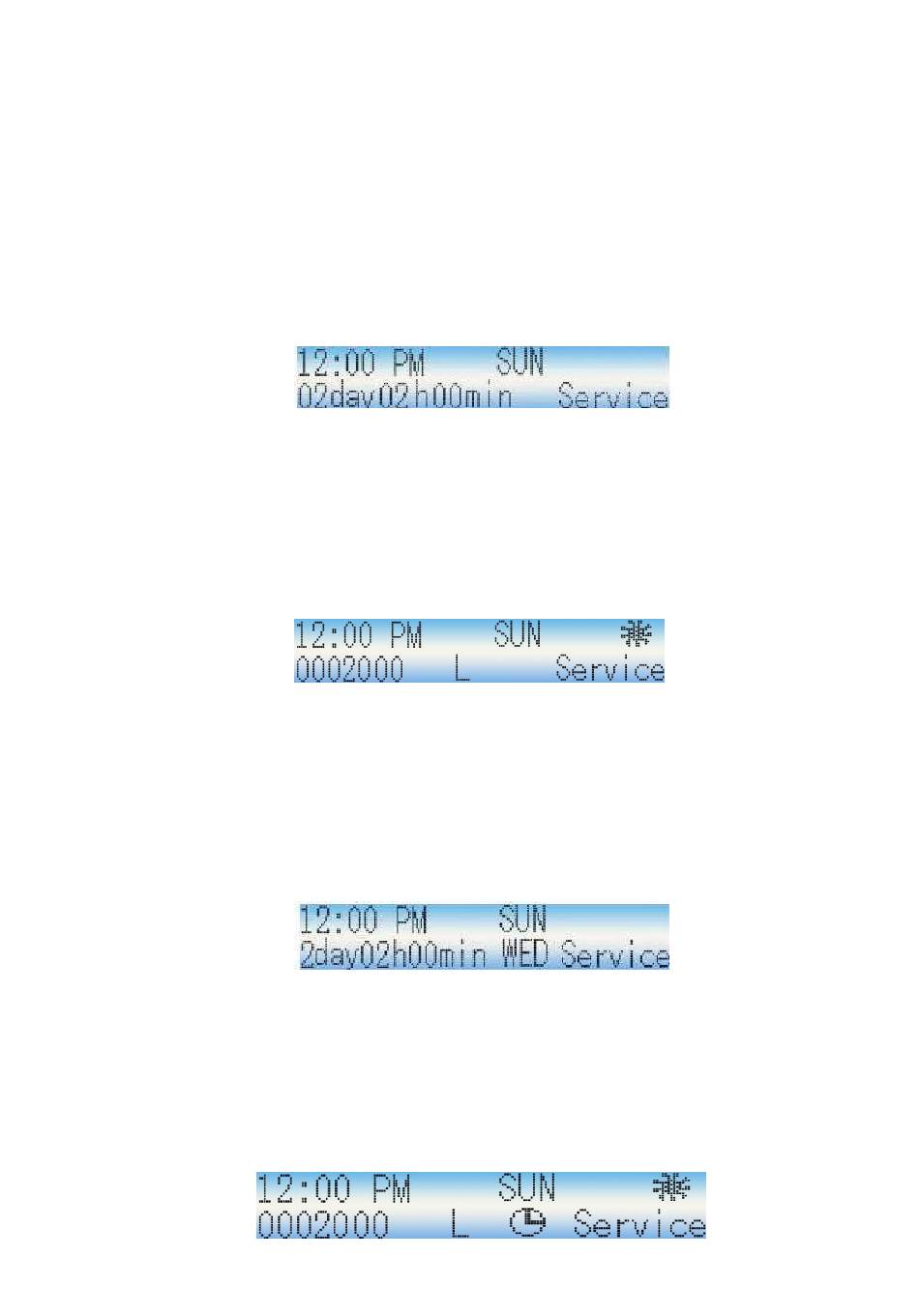

Once programmed, the screen will show the
following:
MODE 2: METER IMM – Volumetric mode with immediate regeneration.
The system will regenerate immediately when the volume of treated water has run out.
Once programmed, the screen will show
the following:
MODE 3: WEEK – Work mode with weekly chronometrical regeneration. The system will
regenerate on the days of the week selected, at the time established.
Once programmed, the screen will show
the following:
MODE 4: METER DELAY – Volumetric mode with delayed regeneration.
The system will regenerate at the programmed time once the volume of treated water has run out.
Once programmed, the screen will show
the following:
TIME OF
DAY
TIME UNTIL NEXT
REGENERATION.
DAY OF THE
TIME OF
WEEK
DAY
AVAILABLE
VOLUME
TIME
OF DAY
TIME & DAY UNTIL NEXT
REGENERATION
TIME OF
DAY
AVAILABLE DELAYED
VOLUME REG. INDICATOR
10
