SymCom PumpSaver Plus 234-P Installation Instructions Manual page 3

ORANGE

START

CAPACI TOR

BLACK

REL AY

RUN

CAPACITOR

RED

YELLOW

BLACK

BLUE

YEL

RED

BLK

REMOVE YELLOW

JUMPER

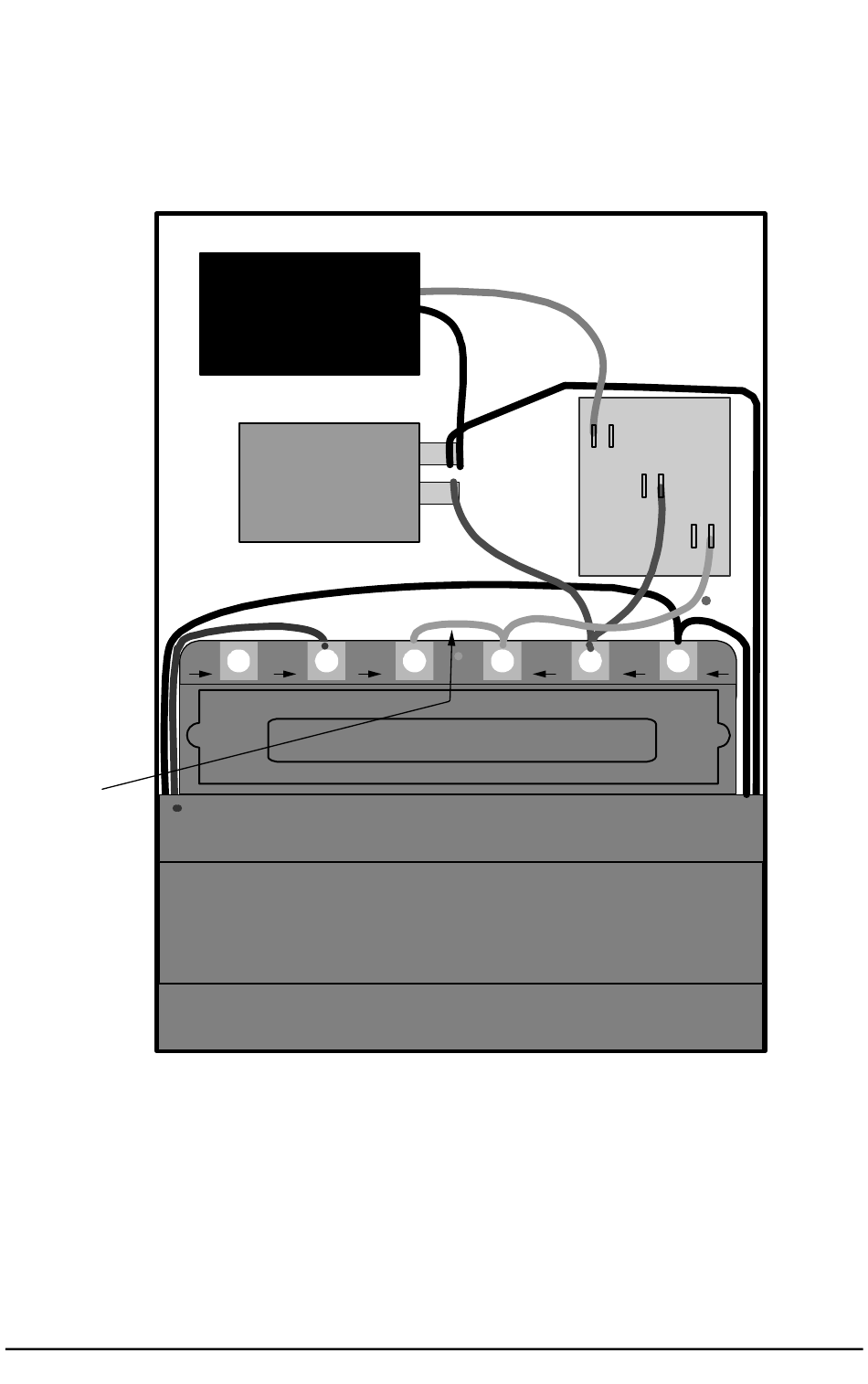

Figure 1: Grundfos Control Box without PumpSaver

Plus Installed
