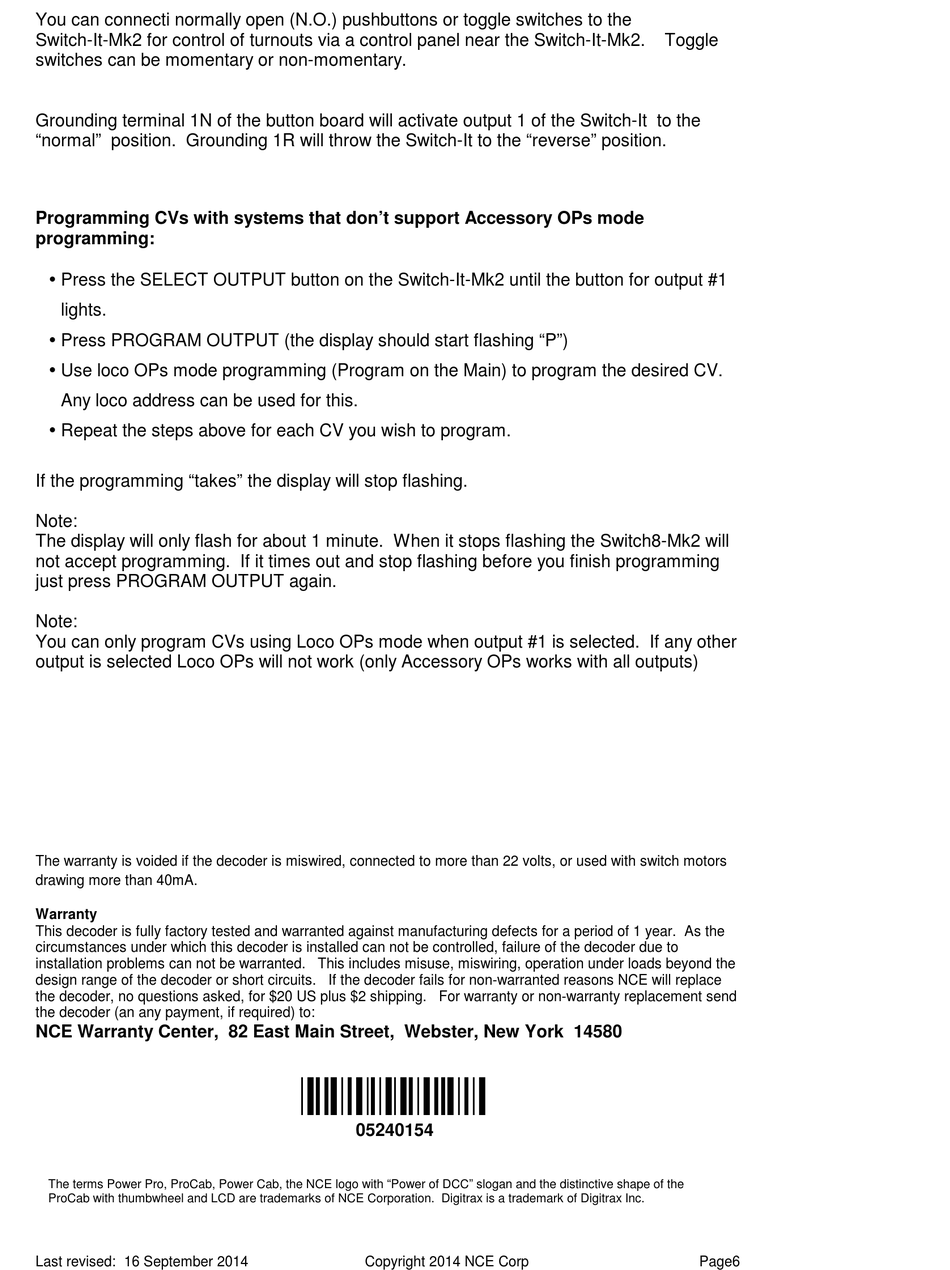

You can connecti normally open (N.O.) pushbuttons or toggle switches to the
Switch-It-Mk2 for control of turnouts via a control panel near the Switch-It-Mk2.
switches can be momentary or non-momentary.
Grounding terminal 1N of the button board will activate output 1 of the Switch-It to the
"normal" position. Grounding 1R will throw the Switch-It to the "reverse" position.
Programming CVs with systems that don't support Accessory OPs mode
programming:
Press the SELECT OUTPUT button on the Switch-It-Mk2 until the button for output #1
lights.
Press PROGRAM OUTPUT (the display should start flashing "P")
Use loco OPs mode programming (Program on the Main) to program the desired CV.
Any loco address can be used for this.
Repeat the steps above for each CV you wish to program.
If the programming "takes" the display will stop flashing.
Note:
The display will only flash for about 1 minute. When it stops flashing the Switch8-Mk2 will
not accept programming. If it times out and stop flashing before you finish programming
just press PROGRAM OUTPUT again.
Note:
You can only program CVs using Loco OPs mode when output #1 is selected. If any other
output is selected Loco OPs will not work (only Accessory OPs works with all outputs)
The warranty is voided if the decoder is miswired, connected to more than 22 volts, or used with switch motors
drawing more than 40mA.

Warranty

This decoder is fully factory tested and warranted against manufacturing defects for a period of 1 year. As the
circumstances under which this decoder is installed can not be controlled, failure of the decoder due to
installation problems can not be warranted. This includes misuse, miswiring, operation under loads beyond the
design range of the decoder or short circuits. If the decoder fails for non-warranted reasons NCE will replace
the decoder, no questions asked, for $20 US plus $2 shipping. For warranty or non-warranty replacement send
the decoder (an any payment, if required) to:
NCE Warranty Center, 82 East Main Street, Webster, New York 14580
The terms Power Pro, ProCab, Power Cab, the NCE logo with "Power of DCC" slogan and the distinctive shape of the
ProCab with thumbwheel and LCD are trademarks of NCE Corporation. Digitrax is a trademark of Digitrax Inc.
Last revised: 16 September 2014
05240154
05240154
Copyright 2014 NCE Corp
