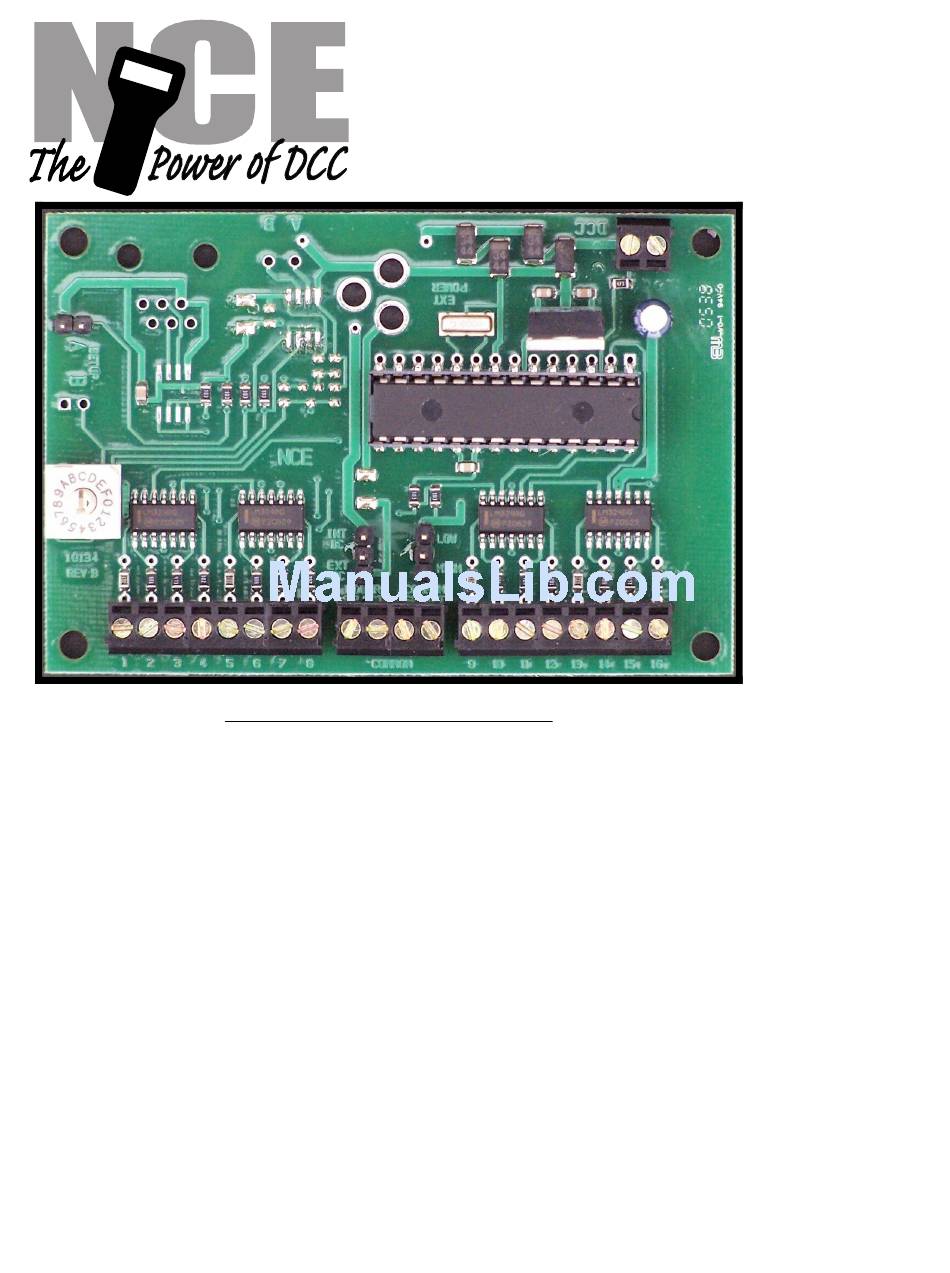

SWITCH-8

Accessory Decoder

FOR STALL MOTOR MACHINES ONLY

NOT FOR USE WITH TWIN COIL SWITCH MACHINES

Decoder revision

$59.95

EASY PROGRAMMING!

‚ Control for 8 Tortoise

switch machines

‚ SWITCH-8 remembers the position of switch during power outages

‚ Switch-8 supports the full range of DCC accessory addresses (1-2044)

‚ Easy address programming, no need to connect it to programming track

‚ Each switch machine can have its own completely different address

‚ Simple hook up, 2 wires to the track, 2 wires to each switch machine

NCE Corporation 899 Ridge Road Webster, NY 14580

Switch-8 is a trademark of NCE Corporation

05240136

Last revised: 8 November 2006

Need help?

Do you have a question about the SWITCH-8 and is the answer not in the manual?

Page 1 ‚ SWITCH-8 remembers the position of switch during power outages ‚ Switch-8 supports the full range of DCC accessory addresses (1-2044) ‚ Easy address programming, no need to connect it to programming track ‚ Each switch machine can have its own completely different address ‚...
Page 2 The outputs are rated for 50mA maximum. Most Tortoise machines draw 10 to 20mA with normal track voltage (about 13-15 volts). There are four mounting holes at the corners of the Switch-8. Wiring: See the diagram below for wiring particulars. The only required wires are two wires to the track and two wires to each machine.
Page 3 Outputs 15&16 factory programmed to accessory address 8 Programming information The Switch-8 can not be programmed on your programming track. It is always programmed while connected to the mainline track. This decoder can be programmed by all systems that support accessory control using the procedure below.
Page 4 If the decoder fails for non-warranted reasons NCE will replace the decoder, no questions asked, for $10 US plus $2 shipping. For warranty or non-warranty replacement send the decoder (an any payment, if required) to:...
