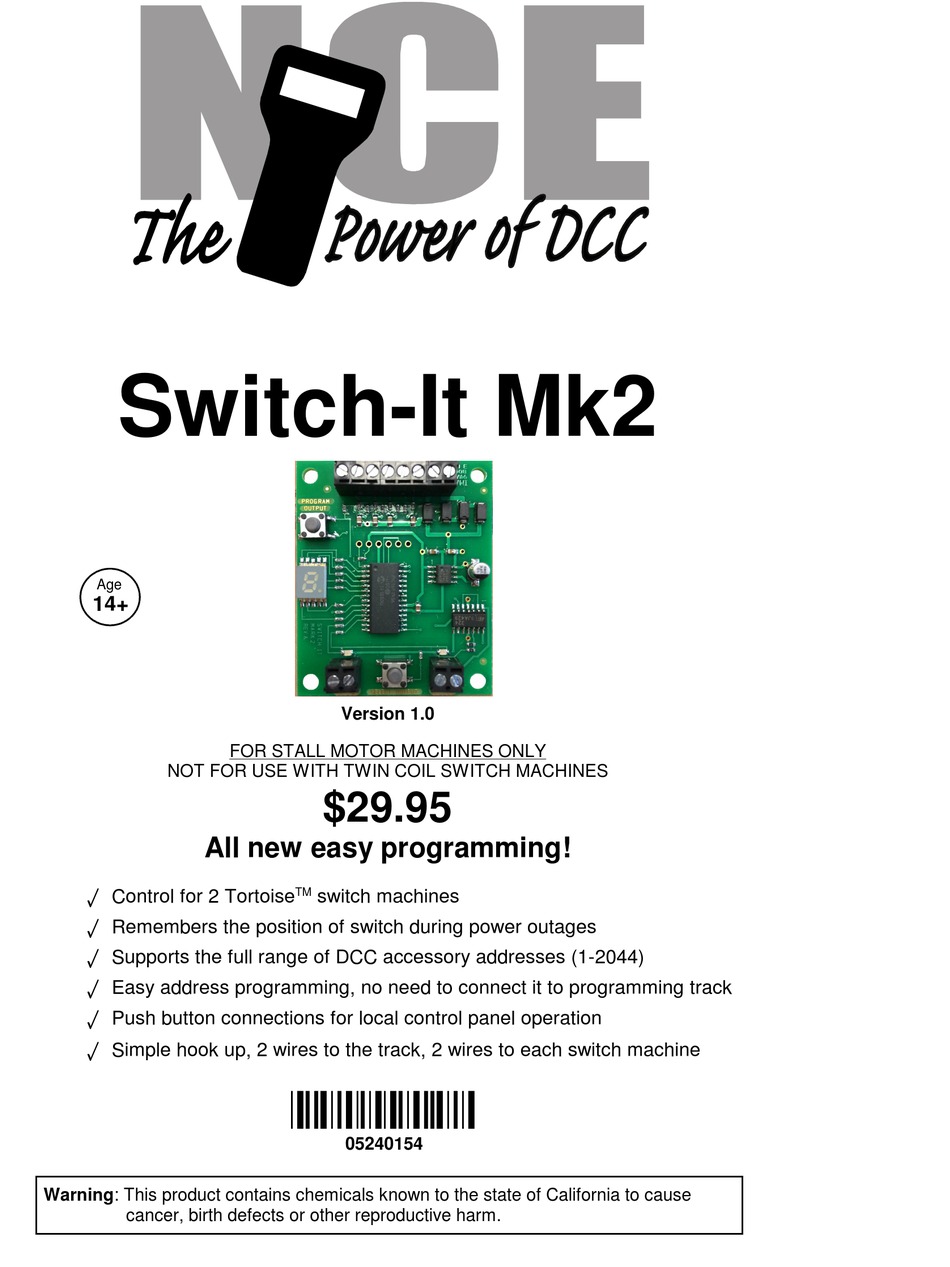

Switch-It Mk2
Age
14+
Version 1.0
FOR STALL MOTOR MACHINES ONLY
NOT FOR USE WITH TWIN COIL SWITCH MACHINES
$29.95
All new easy programming!
TM
‚ ‚ ‚ ‚ Control for 2 Tortoise
switch machines
‚ ‚ ‚ ‚ Remembers the position of switch during power outages
‚ ‚ ‚ ‚ Supports the full range of DCC accessory addresses (1-2044)
‚ ‚ ‚ ‚ Easy address programming, no need to connect it to programming track
‚ ‚ ‚ ‚ Push button connections for local control panel operation
‚ ‚ ‚ ‚ Simple hook up, 2 wires to the track, 2 wires to each switch machine
05240154
05240154
Warning: This product contains chemicals known to the state of California to cause
cancer, birth defects or other reproductive harm.
Advertisement
Related Manuals for NCE Switch-It Mk2
Summary of Contents for NCE Switch-It Mk2
- Page 1 Switch-It Mk2 Version 1.0 FOR STALL MOTOR MACHINES ONLY NOT FOR USE WITH TWIN COIL SWITCH MACHINES $29.95 All new easy programming! ‚ ‚ ‚ ‚ Control for 2 Tortoise switch machines ‚ ‚ ‚ ‚ Remembers the position of switch during power outages ‚...
- Page 2 6” (150mm) longer than the one provided with the Tortoise to give you room to put glue on the machine after the wire is put through the roadbed Last revised: 16 September 2014 Copyright 2014 NCE Corp Page2...
- Page 3 Use your DCC system to throw the switch. The instructions below can be used for throwing a switch depending on which DCC system you have: To throw a switch using the NCE system: Press “SEL ACCY” Type in the desired accessory number followed by “ENTER”...
- Page 4 Each press of a button will alternate the switch position. Setting CV548 = 1 enables the toggle option. CV548 = 0 disables it. CV548 is “global” to the Switch-It Mk2, meaning it will affect all buttons connected to (Factory default = 0) Note:CV548 should be programmed via the Swtich-It .
- Page 5 LEDs. We use red and green LEDs but any color will do. The switch machine will run a bit slower with LEDs installed due to about a 1.5 volt loss in the LEDs Tortoise Machine LEDs Shown Bulb GREEN Last revised: 16 September 2014 Copyright 2014 NCE Corp Page5...
- Page 6 05240154 05240154 The terms Power Pro, ProCab, Power Cab, the NCE logo with “Power of DCC” slogan and the distinctive shape of the ProCab with thumbwheel and LCD are trademarks of NCE Corporation. Digitrax is a trademark of Digitrax Inc.
