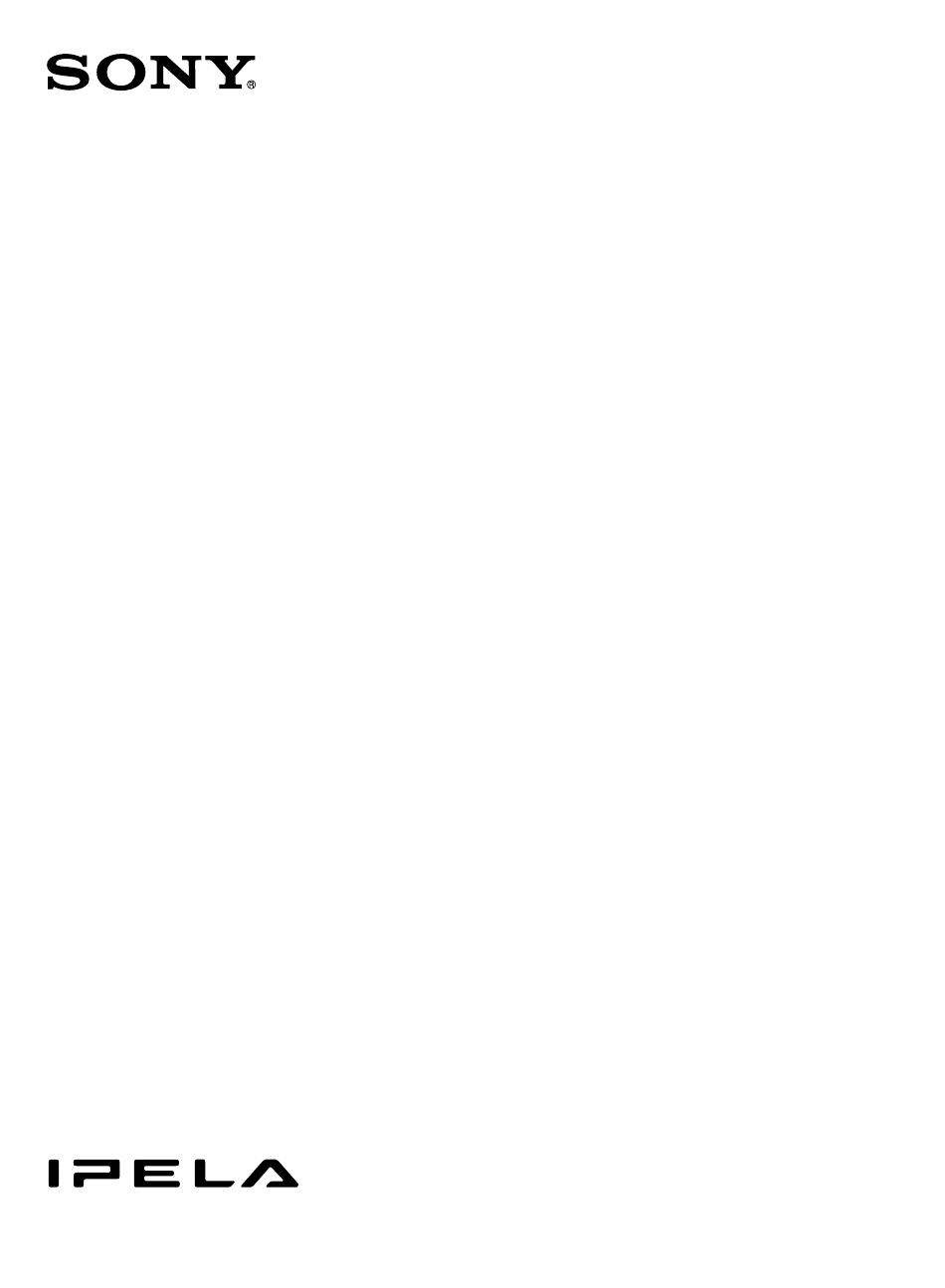

- Page 1 NETWORK SURVEILLANCE RECORDER NSR-100 NSR-50 NSR-25 SYSTEM SETUP MANUAL Volume 3 1st Edition...
-
Page 2: Table Of Contents
Table of Contents Manual Structure ..............1 (E) Outline ................. 2 (E) Addition of External Storage Device ......4 (E) 2-1. NAS Settings ............4 (E) 2-2. NSR Settings ............8 (E) 2-2-1. External Storage Device Connection Settings ... 9 (E) 2-2-2. -
Page 3: Manual Structure
Manual Structure Purpose of this manual This manual describes the procedure to connect external storage devices to Sony Network Surveillance Recorder NSR-100/50/25. Trained engineers intend this manual for use. Related manuals Besides this manual, the following manuals are available..NSR Series User’s Guide (Supplied with NSR-100/50/25) Part number: 3-869-888-1X This manual is necessary for application and operation of NSR-100/50/25. -
Page 4: Outline
Outline Sony Network Surveillance Recorder NSR-100/50/25 can expand its recording capacity by connecting external storage devices. This manual describes procedures for addition, deletion, and replacement of external storage devices and notes on operation. The external storage device is called NAS. - Page 5 Hardware Connection for NSR-100/50 Connect DL100G2 to LAN port 3 of the NSR-100/50 as shown below. Use the LAN port 3 for NAS connection only. Don’t share the NAS with other NSR or other system. Camera DL100G2 (Max. of 4 units) Network SW Network SW Network SW...
-
Page 6: Addition Of External Storage Device
Addition of External Storage Device This section describes an example setting. Set your system according to the actual configuration. 2-1. NAS Settings Hardware Connection It is needed that the NAS has been set as follows for the external storage of an NSR. DL100G2 is a kind of Windows machine. - Page 7 Setting Carry out settings to share the share files with CIFS and settings for write authority as follows. Refer to the manual for DL100 in detail. 1. Open the Server Administration screen of Web base. 2. Click “Shares”, and then “Shares” in the second line to open the General setting screen of the Share Properties.
- Page 8 4. Set as below to set the share type and the folder name of the share folder. . “Share name” → Enter some name. “nfs1” is entered in the screen below. . “Share path” → Enter in Windows format. The screen below is a sample that the path is the nfs1 folder of the NAS E drive.
- Page 9 5. Click “Windows Sharing” to open the Windows Sharing setting screen of the Share Properties. 6. Set the write authority as follows. . “Users allowed to connect to the share simultaneously” → Unlimited . “Offline Settings” → Only the files and programs that users specify will be available offline .
-
Page 10: Nsr Settings
2-2. NSR Settings This section describes settings for the NSR to use the NAS that has been set to be accessible as a Win- dows share server. Hardware Connection Carry out setting using the VGA monitor, the USB keyboard, and the USB mouse of the NSR. Camera DL100G2 (Max. -
Page 11: External Storage Device Connection Settings
The name, share, mount point, and status of existing NAS are displayed. When there is no existing NAS, no one displayed. Execute the following. [nsradmin@nsr nsradmin]$ sudo /usr/Sony/bin/nsrnfsmounts.sh -a -s // <server>/<path> -u <username> -p <password> Enter the following into < > respectively. -
Page 12: External Storage Device Addition Settings
2-2-2. External Storage Device Addition Settings 1. Check that an external storage device can be added as follows. Boot the NSR , and then open the Configuration screen. Click “General”, then “Storage” in the menu tree to display the storage status screen. Check that “Add”... -
Page 13: Storage Assignment To Camera
2-2-3. Storage Assignment to Camera 1. Open “Configuration” screen, and then from the menu tree, open the main screen of the camera to be covered with the added storage device. 2. Assign the added storage device to the recording type to be covered in “Storage Settings”. For, example, assign “nfs1”... -
Page 14: Deletion Of Recorded Data
3-2. Deletion of Recorded Data 1. Change of recording schedule Delete recording schedules or change recording start time to prevent the NSR from recording start during deletion operation. Configuration screen → Click “REC Schedule”. (Refer to User’s Guide.) 2. Deletion of recorded image data, audio data, and their management data (1) Click “General”, “Storage”, then the external storage device to be deleted of the menu tree on the Configuration screen. -
Page 15: Deletion Of Storage Assignment To Camera
3-3. Deletion of Storage Assignment to Camera 1. Change the assigned storage in “Storage Settings” of each camera to the internal HDD from the external storage device to be removed. For example, when the storage assigned to “Alarm Recording” of Camera001 is external storage “nfs1”... -
Page 16: Deletion Of Settings For External Storage Device
//192.168.0.3/nfs3 /mnt/nfs/nfs3 Execute the following to delete the settings for the external storages nfs2 and also nfs3. [nsradmin@nsr nsradmin]$ sudo /usr/Sony/bin/nsrnfsmounts.sh -d -n nfs2 Execute the following. [nsradmin@nsr nsradmin]$ sudo /usr/Sony/bin/nsrnfsmounts.sh -1 The name, share, mount point and status of the remaining external storage nfs1 are displayed. -
Page 17: Replacement Of External Storage Device
Replacement of External Storage Device Perform the following in order. 1. Carry out sections 3-1 through 3-4 of “3. Deletion of External Storage device” for the device to be replaced. 2. Carry out “2. NAS Settings” for the replacement device to set it to the same status as the replaced device. - Page 18 Others . An NSR and external storage devices can store recordings up to 690,000 events in total. . NSR does not monitor the external storage devices. If it is necessary, set monitoring and SNMP in the external storage device side. .
