- Page 1 FIELD TEST DEVICE LoRaWAN AS 923 User Guide Version V1.0.0 Adeunis 283 rue Louis Néel - Parc Technologique Pré Roux 38920 CROLLES - France www.adeunis.com...
- Page 2 FIELD TEST DEVICE - LoRaWAN AS 923 - Mode d'emploi V1.0.0 Table of contents INFORMATIONS INTRODUCING THE DEVICE 1.1. Description 1.2. Mechanical features 1.3. Technical specifications 1.4. Charging the FTD DEVICE DESCRIPTION 2.1. User interface 2.2. Button description SCREEN DESCRIPTION 3.1.
- Page 3 FIELD TEST DEVICE - LoRaWAN AS 923 - Mode d'emploi V1.0.0 User GUIDE: (DoC) AS923 Declaration of conformity - New Zealand Manufacturer’s name : adeunis Manufacturer’s address : Parc Technologique PRE ROUX 283 rue Louis NEEL 38920 CROLLES Country: FRANCE...
- Page 4 FIELD TEST DEVICE - LoRaWAN AS 923 - Mode d'emploi V1.0.0 Préambule / Preamble / Präambel / Preambolo / Preámbulo • Ce guide décrit les fonctionnalités du produit adeunis®. Il explique les modes de fonctionnement du produit et la manière de le confi gurer.
- Page 5 FIELD TEST DEVICE - LoRaWAN AS 923 - Mode d'emploi V1.0.0 INFORMATIONS Document Information Title FIELD TEST DEVICE Subtitle LoRaWAN AS 923 Document type User Guide Version V1.0.0 This document applies to the following products: Name Reference Firmware Version FIELD TEST DEVICE - LoRaWAN AS 923 ARF8124C Version RTU: V01.07.01...
- Page 6 FIELD TEST DEVICE - LoRaWAN AS 923 - Mode d'emploi V1.0.0 INTRODUCTION All rights to this manual are the exclusive property of adeunis®. All rights reserved. Copying this manual (wit- hout written permission from the owner) via printing, copying, recording or by any other means, translating this manual (in full or partially) into any other language, including all programming languages, using any electrical, mechanical, magnetic or optical devices, manually or any by other methods, is prohibited.
- Page 7 FIELD TEST DEVICE - LoRaWAN AS 923 - Mode d'emploi V1.0.0 ENVIRONMENTAL RECOMMENDATIONS All superfl uous packaging materials have been eliminated. We have done everything possible to make it easy to separate the packaging into three types of materials: cardboard (box), expanded polystyrene (fi ller material) and polyethylene (packets, foam protective sheets).
- Page 8 FIELD TEST DEVICE - LoRaWAN AS 923 - Mode d'emploi V1.0.0 RECOMMANDATIONS REGARDING USE • Before using the system, check that the power supply voltage shown in the user manual corresponds to your supply. If it doesn’t, please consult your supplier.

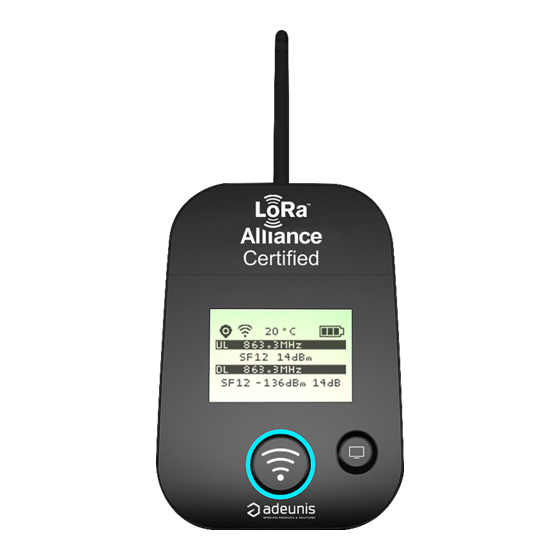

- Page 9 FIELD TEST DEVICE - LoRaWAN AS 923 - Mode d'emploi V1.0.0 1. INTRODUCING THE DEVICE 1.1. Description The Field Test Device (FTD) from adeunis® is a Class A LoRaWAN compatible device. This is not a point to point device and may not be used in this manner.
- Page 10 FIELD TEST DEVICE - LoRaWAN AS 923 - Mode d'emploi V1.0.0 1.3. Technical specifications Radio Communication LoRaWAN protocol & LoRa Modulation Network area AS923 +14dBm max (all MAC commands requesting a power adjustment greater than 14dBm will be Output power...
- Page 11 FIELD TEST DEVICE - LoRaWAN AS 923 - Mode d'emploi V1.0.0 2. DEVICE DESCRIPTION 2.1. User interface ON/OFF switch Micro USB connector LCD screen Figure 4 : rear view Charge indicator Push button 1 Push button 2 Figure 3 : Front view 2.2.
- Page 12 FIELD TEST DEVICE - LoRaWAN AS 923 - Mode d'emploi V1.0.0 3. SCREEN DESCRIPTION The LCD screen of the product is split on few part : • The START screen (Showing the firmware version) - Only on the powering up •...
- Page 13 FIELD TEST DEVICE - LoRaWAN AS 923 - Mode d'emploi V1.0.0 The request are identify «JR» following with a number showing the number of request done. The frequency used for the request is showing after this information. Note : If there is no network available, the «Join Request» will be send indefinitely, and the product will stay in this screen.
- Page 14 FIELD TEST DEVICE - LoRaWAN AS 923 - Mode d'emploi V1.0.0 3.4. GPS screen This screen can be accessed by briefly pressing on pushbutton 2 after the home screen. It will allow you to view the functioning information of the GPS module, as well as the device’s GPS positioning.
- Page 15 FIELD TEST DEVICE - LoRaWAN AS 923 - Mode d'emploi V1.0.0 • The number of frames received (DL COUNT) • The Packet Error Rate (PER) as a percentage The PER measurement is calculated by comparing the number of frames transmitted to the number of frames received: •...
- Page 16 FIELD TEST DEVICE - LoRaWAN AS 923 - Mode d'emploi V1.0.0 4. DECODING THE PAYLOAD The payload is divided into 2 frames to be compliant with regulation. The first byte (status byte) will enable you to identify the presence of information contained in the payload.
- Page 17 FIELD TEST DEVICE - LoRaWAN AS 923 - Mode d'emploi V1.0.0 4.1.3 Longitude Frame N° Byte N° Bit N° Comments Value 7..4 BCD coding of the entire degree section (one hundredth of a degree) 005°53,450 3..0 BCD coding of the entire degree section (one tenth of a degree) 005°53,450...
- Page 18 FIELD TEST DEVICE - LoRaWAN AS 923 - Mode d'emploi V1.0.0 4.2.1 Temperature Frame Byte Binary Comments Value N° N° 0001 Temperature in °C (two’s complement) -128 ... +127 1011 Aid for decoding temperature Sign Bit Bit 6 Bit 5...
- Page 19 FIELD TEST DEVICE - LoRaWAN AS 923 - Mode d'emploi V1.0.0 5. DEVICE CONFIGURATION The device can be configured using the USB connector. This connection allows you to communicate with the device via a virtual com port and to transmit AT commands in order to modify the parameters of the device.
- Page 20 FIELD TEST DEVICE - LoRaWAN AS 923 - Mode d'emploi V1.0.0 5.2. Command mode Use a COM port terminal in order to communicate with the device. We use the HERCULES COM port soft terminal available to download for free by clicking on the following link: http://www.hw-group.com/devices/hercules/index_en.html •...
- Page 21 FIELD TEST DEVICE - LoRaWAN AS 923 - Mode d'emploi V1.0.0 • Send the transition frame in command mode in order to switch the device to configuration mode by clicking on the SEND button. After a few seconds, you should see the COMMAND MODE screen appear on the device’s LCD. This may take some time due to the fact that transition to command mode can only happen during a transmission cycle.
- Page 22 FIELD TEST DEVICE - LoRaWAN AS 923 - Mode d'emploi V1.0.0 Example of a set of commands and corresponding responses that can be seen on the terminal: Command Description Response \FF\FF\FF\FF+++ Input request in command mode ATS221=1 Transition request in OTAA activation mode...
- Page 23 FIELD TEST DEVICE - LoRaWAN AS 923 - Mode d'emploi V1.0.0 Range Content Default value Comments S386 Personalize Payload Text - Bloc 1 Personalize Payload Text- Bloc 2 S387 Each bloc allow to define 4 bytes of the payload Personalize Payload Text- Bloc 3...
- Page 24 FIELD TEST DEVICE - LoRaWAN AS 923 - Mode d'emploi V1.0.0 S385 : Personalize Payload Size This option allow to send a define payload instead of the standard define inside the product The user can set the size of the payload and the text to send When the value of the register is set to , the function is deactivated and the product use the standard payload.
- Page 25 FIELD TEST DEVICE - LoRaWAN AS 923 - Mode d'emploi V1.0.0 Range Content Default value Comments S222 LORA NWK_sKEY (First section) S223 LORA NWK_sKEY (Second section) Parameter coded with 16 bytes. Each of the 4 ranges contains 4 bytes. S224...
- Page 26 FIELD TEST DEVICE - LoRaWAN AS 923 - Mode d'emploi V1.0.0 S221: Activation mode This range will allow you to configure the device’s activation mode: • The “Over The Air Activation” (OTAA) mode uses a JOIN phase before it can transmit on the network. This mode uses the code APP_EUI (S214 and S215) and the code APP_KEY (S216 to S219) during this phase in order to create the network communication keys.
- Page 27 FIELD TEST DEVICE - LoRaWAN AS 923 - Mode d'emploi V1.0.0 6. DEVICE UPDATES The device has 2 firmwares: • RTU firmware • APPLICATIVE firmware It is possible to find out the references for versions loaded onto the device using the command AT/V or plugging the device to the IoT Configurator.
