Summary of Contents for Nevco MPCX SCD Series

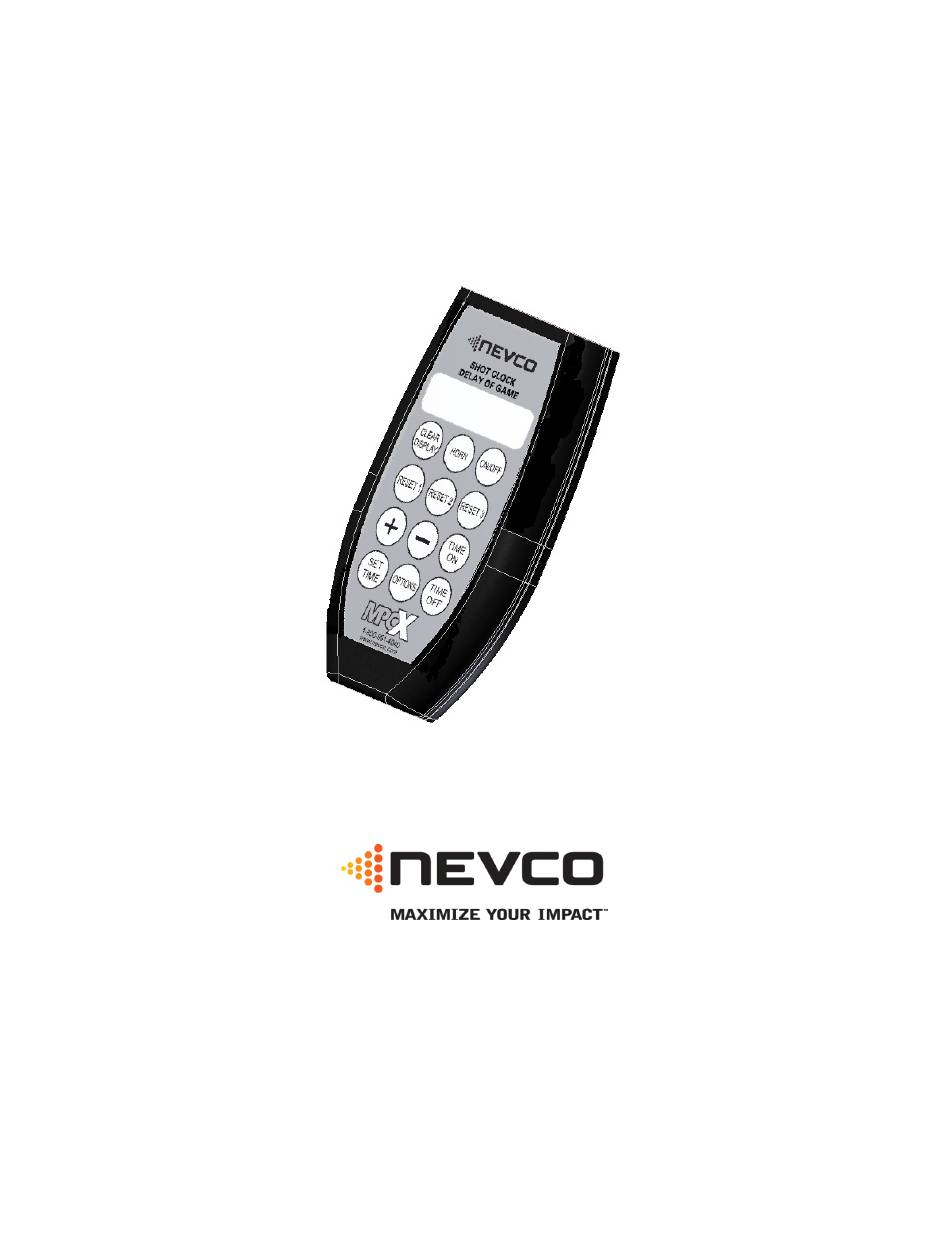

- Page 1 Scoreboard Operator’s Instructions MPCX SCD / DGT / Pitch Time Control Since 1934 Retain this manual in your permanent files Rev. 2/3/2012 135-0136...
- Page 2 May not be compatible with certain older scoreboards Thank You Thank You for choosing NEVCO. We appreciate your business. The following instructions will help you become familiar with the operation and features of the scoreboard system. Please take a few minutes to study this manual, and to practice with the control.

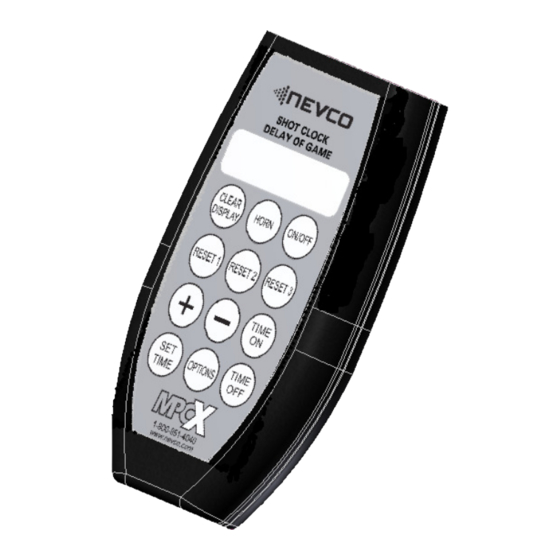

- Page 3 BNC Connector LED Status Indicator Belt Clip (On steady = Power) (Signal out to scoreboard) (Blinking = Signal I/O) Power Input Not Used (9 V DC) Battery Compartment Cover (2 x AA) MPCX CONTROL (rear view) MPCX Receiver HORN LCD Display (16 characters x 2 lines) CLEAR DISPLAY (blanks the SCD, Power ON / OFF Switch PTD, or DGT displays)
-
Page 4: Table Of Contents
TABLE OF CONTENTS QUICK START GUIDE ......................... 1 ........................ 1 TART A ........................1 TART THE IMER ........................1 TOP THE IMER KEYBOARD FUNCTIONS......................2 GREETING ........................2 SCREEN MAIN ..........................3 SCREEN SET TIME ........................4 SCREEN OPTIONS M ........................... -
Page 5: Quick Start Guide
QUICK START GUIDE SHOT CLOCK, SEGMENT TIMER, DELAY OF GAME, and PITCH TIME models Shot Clock (models SCD-5, SCD-7, and S60-LED). Delay of Game (model DGT-5). Pitch Time (model 900-9520) Segment Timer (model SEG-14 and SEG-18) Note: It is assumed here that the control has been configured for the correct scoreboard type and the control has been linked to the desired receiver(s). -
Page 6: Keyboard Functions
KEYBOARD FUNCTIONS GREETING screen Accessed GREETING MPCX SCD / DGT When the control is Powered ON, the greeting showing the pressing »»» type of control and the sport is displayed. This greeting continues to be displayed while the control establishes communications with its receiver(s). -
Page 7: Main Screen
MAIN screen Accessed MAIN R1: 15 Time:OFF The main screen shows the reset time for the Reset 1 key, the pressing R2: 30 R3: 35 Timer Status, and the reset time for the Reset 2 and Reset 3 keys. Press any one of these Reset keys to immediately load its value into the timer. -
Page 8: Set Time Screen
SET TIME screen Accessed SET TIME Set Time: This screen is for setting a special miscellaneous time into the pressing Time: timer. It also provides a way to program the desired times into each of the three RESET keys. These keys can then be pressed at any time to instantly load the timer with each keys reset value. -
Page 9: Options Menu
OPTIONS Menu Several option settings are available to fine tune the scoreboard system to your needs. These settings are saved in the control. They are remembered even if the control is turned OFF or the batteries removed. When a control turns ON the scoreboard, these settings are sent to the scoreboard and are used to define how it operates. -
Page 10: Advanced Options
Enter Code to the control operates. Generally, these settings need not be changed and should only be changed by an experienced operator Change Settings or under direction from the Nevco Service Department. Press the following key sequence: RESET 1 RESET 2 to gain access to the following additional menu items. -
Page 11: Procedure To Mate A Control And Receiver(S)
This menu option reports the number of receivers the control is Link Control 0/0 currently linked to (0/0), and the number of receivers on its “Link Press (+) To” list (0/0). The option also allows you to link a control to a scoreboard (receiver) or group of scoreboards (receivers). -
Page 12: Setting Scoreboard Model
Setting Scoreboard Model The next press of the options key will display one of the following screens. It indicates which of the scoreboard model series the control is currently configured OPTIONS to operate. Use the “+” key to toggle thru the scoreboard models. Press the OPTIONS key again to exit the options routine. -
Page 13: Troubleshooting Chart
Scoreboard connected to MPCX is Control is not configured for correct Reconfigure the control (see options displaying data in the wrong places, scoreboard model series menu) incorrect data, or horn constantly sounds. If the problem persists please contact the Nevco Service Department. 800-851-4040... - Page 14 —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/ TV technician for help. The user is cautioned that changes and modifications made to the equipment without the approval of Nevco could void the user’s authority to operate this equipment.
