  • Page 1 Altos BrainSphere P130 F5 User Guide...

  • Page 2: System Setup

    System setup System notes Thank you for purchasing your Altos workstation. This user guide is intended as a reference for experienced workstation technicians and helps detail many of the features available in Altos workstation. For more detailed information about any particular component or software solution, you may consult the technical specifications or the user manual for that application.

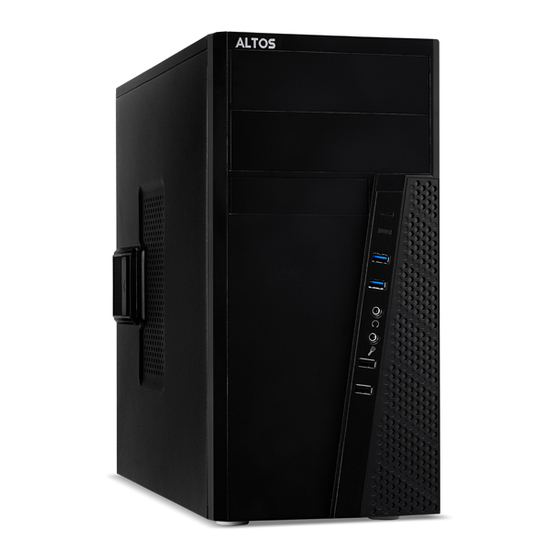

  • Page 3 System component identification Altos BrainSphere P130 F5 Front configuration: Description Power Button Reset Button HDD Activity LED USB 3.2 Gen1 port x 2 Earphone port MIC port USB 2.0 port x 2 DVD CD-ROM (Optional)
  • Page 4 Altos BrainSphere P130 F5 Rear configuration: Description Power Cord Connector Power On/Off Button USB 2.0 port x 2 RJ-45 GbE port DP Port DVI-D Port DP Port USB 3.2 Gen2 port x 2 USB 3.2 Gen 2 port x 2...

  • Page 5: Setting Up The System

    Setting up the system Pre-installation requirements Selecting a site Before unpacking and installing the system, select a suitable site for the system for maximum efficiency. Consider the following factors when choosing a site for the system:  Near a grounded power outlet. ...

  • Page 6: Turning On The System

    Turning on the system After making sure that you have properly set up the system, applied power and connected all the necessary peripherals, you can now power on the system. Follow the procedure below. 。 Press the power button The system starts up and displays a welcome message on the monitor. After that, a series of power-on self-test (POST) messages appears.
  • Page 7 Note: If you have gone through the preceding actions and the system still fails to boot, ask your dealer or a qualified technician for assistance.
  • Page 8 Turning off the system There are two ways to turn off the workstation—via software or via hardware. The software procedure below applies to a system running on a Windows OS. For other shutdown procedures, refer to the related user documentation. To turn off the system via software: Press <Ctrl>...

  • Page 9: System Troubleshooting

    System troubleshooting Resetting the system Before going through in-depth troubleshooting, attempt first to reset the system using one of the methods below. Perform Purpose To do this Soft boot To clear the system memory and Press <Ctrl> + <Alt> + <Del> reload the operating system.

  • Page 10: Initial System Startup Problems

    Initial system startup problems Problems that occur at initial system startup are usually caused by an incorrect installation or configuration. Hardware failure is a less possible cause. If the problem you are experiencing is with a specific application. Initial troubleshooting checklist ...

  • Page 11: Hardware Diagnostic Testing

    Hardware diagnostic testing This section provides a detailed approach to identifying a hardware problem and its cause. Checking the boot-up status Caution: Before disconnecting any peripheral cables from the workstation, turn off the system and any peripheral devices. Failure to do so can cause permanent damage to the system and/or the peripheral device.

  • Page 12: Specific Problems And Corrective Actions

    Specific problems and corrective actions Listed below are specific problems that may arise during the use of your workstation and their possible solutions Confirming loading of the operating system Once the system boots up, the operating system prompt appears on the screen. The prompt varies according to the operating system.
  • Page 13  Check that relevant switches and jumpers on the hard drive and on the backplane board are set correctly. Optical drive activity indicator does not light Do the following:  Make sure the SATA and power cables are properly connected. ...
  • Page 14 Peripheral device connected to a USB port does not work. Do the following:  Reduce the number of external devices connected to a USB hub.  Refer to the documentation that came with the device There is problem with the software program. Do the following: ...
  • Page 15 Note: If POST does not emit any beep code and characters still do not appear, the display monitor or the video controller may be defective. Contact your local Altos representative or authorized dealer for technical assistance.

  • Page 16: Information For Your Safety And Comfort

    Notices Information for your safety and comfort Safety instructions Read these instructions carefully. Keep this document for future reference. Follow all warnings and instructions marked on the product. Turning the product off before cleaning Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.
  • Page 17  Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind onto or into the product. ...
  • Page 18  Use the product only with the supplied power supply cord set. If you need to replace the power cord set, make sure that the new power cord meets the following requirements: detachable type, UL listed/CSA certified, VDE approved or its equivalent, 4.6 meters (15 feet) maximum length.
  • Page 19 Disposal instructions Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle.
  • Page 20 CLASS 1 LASER PRODUCT CAUTION: INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM. Declaration of Conformity for EU countries Hereby, Altos, declares that this system is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
  • Page 21 List of applicable countries This device must be used in strict accordance with the regulations and constraints in the country of use. For further information, please contact local office in the country of use. Please see http://ec.europa.eu/enterprise/rtte/implem.htm or the latest country list. Note: The following sections are applicable only to Class A systems FCC notice Class B...
  • Page 22 Caution Changes or modifications not expressly approved by the manufacture could void the user’s authority, which is granted by the Federal Communications Commission, to operate this computer. Operation conditions This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
