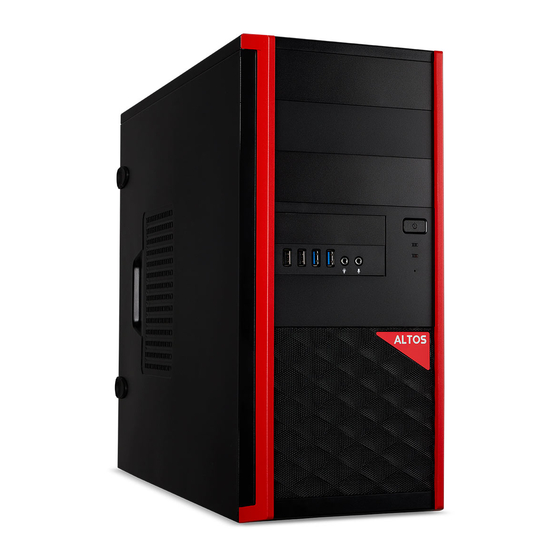

Altos BrainSphere P15 F7 User Manual
  1. Manuals
  2. Brands
  3. Altos Manuals
  4. Desktop
  5. BrainSphere P15 F7
  6. User manual

Altos BrainSphere P15 F7 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
User's Guide
TM
BrainSphere
P15 F7

Advertisement

loading
Need help?

Need help?

Do you have a question about the BrainSphere P15 F7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Altos BrainSphere P15 F7

Summary of Contents for Altos BrainSphere P15 F7

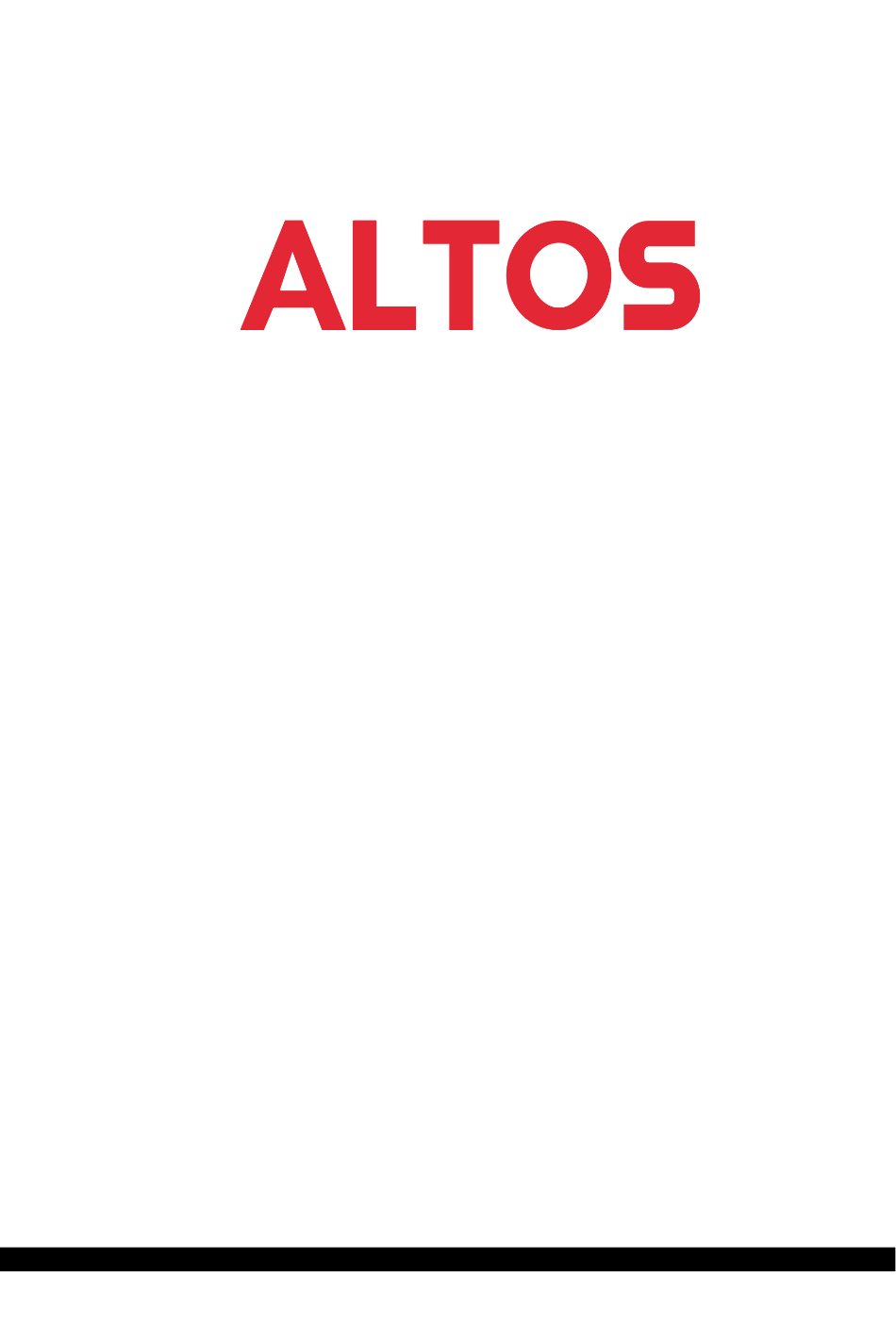

  • Page 1 User’s Guide BrainSphere P15 F7...
  • Page 2 Version 1.0 Published August 2020 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 3 You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. If you require assistance please call Altos Tel : +886-2-28965588 ext.123 (Standard International call charges apply) The terms HDMI®...

  • Page 4: Table Of Contents

    -Ready Graphics Cards 2.7.2 Driver Installation and Setup M.2_SSD (NGFF) Module Installation Guide (M2_1) M.2_SSD (NGFF) Module Installation Guide (M2_2) Chapter 3 Software and Utilities Operation Installing Drivers Altos Motherboard Utility (Phantom Gaming Tuning) 3.2.1 Installing Altos Motherboard Utility (Phantom Gaming...
  • Page 5 Tuning) 3.2.2 Using Altos Motherboard Utility (Phantom Gaming Tuning)42 Altos Live Update & APP Shop 3.3.1 UI Overview 3.3.2 Apps 3.3.3 BIOS & Drivers 3.3.4 Setting Altos Polychrome SYNC Chapter 4 UEFI SETUP UTILITY Introduction 4.1.1 UEFI Menu Bar 4.1.2...
  • Page 6 Hardware Health Event Monitoring Screen Security Screen Boot Screen Exit Screen...

  • Page 7: Chapter 1 Introduction

    If you require technical support related to this mother- board, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on Altos’s website as well. Altos website http://www.Altos.com.

  • Page 8: Specifications

    4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/ 4000(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/ 3466(OC)/3200/2933/2667/2400/2133 ECC & non-ECC, un- buffered memory* * Please refer to Memory Support List on Altos’s website for more information. (http://www.Altos.com/) * Please refer to page 22 for DDR4 UDIMM maximum frequency support. • Max. capacity of system memory: 128GB •...
  • Page 9 B550M Phantom Gaming 4 Expansion AMD Ryzen series CPUs (Matisse) Slot • 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)* AMD Ryzen series APUs (Renoir) • 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)* * Supports NVMe SSD as boot disks •...
  • Page 10 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)* * Supports NVMe SSD as boot disks * Supports Altos U.2 Kit Connector • 1 x SPI TPM Header • 1 x Power LED and Speaker Header •...
  • Page 11 B550M Phantom Gaming 4 • 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. * CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use. •...
  • Page 12 * For detailed product information, please visit our website: http://www.Altos.com Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools. Overclocking may affect your system’s stability, or even cause damage to the components and devices of your system.

  • Page 13: Motherboard Layout

    B550M Phantom Gaming 4 1.2 Motherboard Layout USB 3.2 Gen1 T: USB3_1 B: USB3_2 USB 3.2 Gen1 T: USB3_3 B: USB3_4 SPI_TPM_J1 Super Promontory B550 CMOS Battery AUDIO CODEC PANEL1 HD_AUDIO1 SPK_PLED1 PLED PWRBTN F_USB3_3_4 13 12 HDLED RESET...
  • Page 14 No. Description 8 pin 12V Power Connector (ATX12V1) CPU Fan Connector (CPU_FAN1) 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1) 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2) RGB LED Header (RGB_LED1) Addressable LED Header (ADDR_LED1) ATX Power Connector (ATXPWR1) USB 3.2 Gen1 Header (F_USB3_1_2) SATA3 Connector (SATA3_2) SATA3 Connector (SATA3_1)

  • Page 15: I/O Panel

    B550M Phantom Gaming 4 1.3 I/O Panel No. Description No. Description USB 2.0 Ports (USB_12)* USB 3.2 Gen1 Ports (USB3_34) LAN RJ-45 Port** USB 3.2 Gen1 Ports (USB3_12) Line In (Light Blue)*** PS/2 Mouse/Keyboard Port Front Speaker (Lime)*** DisplayPort 1.4 Microphone (Pink)*** HDMI Port Please note that the USB_2 consumes auxiliary power (+5VSB) while the other USB ports consume DUAL...
  • Page 16 *** Function of the Audio Ports in 7.1-channel Configuration: Port Function Light Blue (Rear panel) Rear Speaker Out Lime (Rear panel) Front Speaker Out Pink (Rear panel) Central /Subwoofer Speaker Out Lime (Front panel) Side Speaker Out...

  • Page 17: Chapter 2 Installation

    B550M Phantom Gaming 4 Chapter 2 Installation This is a Micro ATX form factor motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it. Pre-installation Precautions Take note of the following precautions before you install motherboard components or change any motherboard settings.

  • Page 18: Installing The Cpu

    2.1 Installing the CPU Unplug all power cables before installing the CPU.
  • Page 19 B550M Phantom Gaming 4...

  • Page 20: Installing The Cpu Fan And Heatsink

    2.2 Installing the CPU Fan and Heatsink After you install the CPU into this motherboard, it is necessary to install a larger heatsink and cooling fan to dissipate heat. You also need to spray thermal grease between the CPU and the heatsink to improve heat dissipation. Make sure that the CPU and the heatsink are securely fastened and in good contact with each other.
  • Page 21 B550M Phantom Gaming 4...
  • Page 22 Installing the AM4 Box Cooler SR2...
  • Page 23 B550M Phantom Gaming 4...
  • Page 24 *The diagrams shown here are for reference only. The headers might be in a different position on your motherboard.
  • Page 25 B550M Phantom Gaming 4 Installing the AM4 Box Cooler SR3...
  • Page 26 glish...
  • Page 27 B550M Phantom Gaming 4 +12V *The diagrams shown here are for reference only. The headers might be in a different position on your motherboard.

  • Page 28: Installing Memory Modules (Dimm)

    2.3 Installing Memory Modules (DIMM) This motherboard provides four 288-pin DDR4 (Double Data Rate 4) DIMM slots, and supports Dual Channel Memory Technology. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR4 DIMM pairs. It is unable to activate Dual Channel Memory Technology with only one or three memory module installed.
  • Page 29 B550M Phantom Gaming 4 Ryzen Series APUs (Renoir): UDIMM Memory Slot Frequency (Mhz) Single 3200 rank 3200 3200 3200 2933 SR/DR SR/DR 2667 SR/DR SR/DR SR/DR SR/DR 2667 DIMM, 1Rx4 or 1Rx8 on DIMM module label DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label...
  • Page 30 The DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.

  • Page 31: Expansion Slots (Pci Express Slots)

    B550M Phantom Gaming 4 2.4 Expansion Slots (PCI Express Slots) There are 3 PCI Express slots on the motherboard. Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.

  • Page 32: Jumpers Setup

    2.5 Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is “Open”. Clear CMOS Jumper Short: Clear CMOS (CLRCMOS1) Open: Default 2-pin...

  • Page 33: Onboard Headers And Connectors

    B550M Phantom Gaming 4 2.6 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard. System Panel Header PLED+ Connect the power...
  • Page 34 Power LED and Speaker Please connect the SPEAKER DUMMY Header chassis power LED and DUMMY the chassis speaker to this (7-pin SPK_PLED1) (see p.7, No. 13 ) header. PLED+ PLED+ PLED- Serial ATA3 Connectors These four SATA3 (SATA3_1: connectors support SATA see p.7, No.
  • Page 35 B550M Phantom Gaming 4 IntA_P_SSRX- IntA_P_SSRX+ IntA_P_SSTX- IntA_P_SSTX+ IntA_P_D- IntA_P_D+...
  • Page 36 Front Panel Audio Header This header is for PRESENCE# MIC_RET (9-pin HD_AUDIO1) connecting audio devices OUT_RET (see p.7, No. 23) to the front audio panel. OUT2_L J_SENSE OUT2_R MIC2_R MIC2_L High Definition Audio supports Jack Sensing, but the panel wire on the chassis must sup- port HDA to function correctly.
  • Page 37 B550M Phantom Gaming 4 CPU Fan Connector This motherboard pro- (4-pin CPU_FAN1) vides a 4-Pin CPU fan (Quiet Fan) connector. (see p.7, No. 2) TAGE FAN_V AN_S PU_F PEED SPEED ONTROL If you plan to connect a 3-Pin CPU fan, please connect it to Pin 1-3.
  • Page 38 RGB LED Headers These two RGB headers are used (4-pin RGB_LED1) to connect RGB LED extension (see p.7, No. 5) cable which allows users to choose from various LED lighting effects. Caution: Never install the RGB LED cable in the wrong orienta- (4-pin RGB_LED2) tion;...

  • Page 39: Tm Tm

    B550M Phantom Gaming 4 2.7 CrossFireX and Quad CrossFireX Operation Guide This motherboard supports CrossFireX and Quad CrossFireX that allows you to install up to two identical PCI Express x16 graphics cards. You should only use identical CrossFireX -ready graphics cards that are AMD certified.
  • Page 40 Step 3 Connect a VGA/DVI/DP/HDMI cable from the monitor to the corresponding port on the graphics card installed to the PCIE1 slot.

  • Page 41: Driver Installation And Setup

    B550M Phantom Gaming 4 2. 7 . 2 Driver Installation and Setup Step 1 Power on your computer and boot into OS. Step 2 Remove the AMD drivers if you have any VGA drivers installed in your system. The Catalyst Uninstaller is an optional download. We recommend using this utility to uninstall any previously installed Catalyst drivers prior to installation.

  • Page 42: M.2_Ssd (Ngff) Module Installation Guide (M2_1)

    2.8 M.2_SSD (NGFF) Module Installation Guide (M2_1) The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Hyper M.2 Socket (M2_1) supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Renoir).
  • Page 43 B550M Phantom Gaming 4 Step 3 Align and gently insert the M.2 (NGFF) SSD module into the M.2 slot. Please be aware that the M.2 (NGFF) SSD module only fits in one orientation. Step 4 Tighten the screw with a screwdriver to secure the module into place.
  • Page 44 SM951 (MZHPV256HDGL) Samsung PCIe3 x4 SM951 (MZHPV512HDGL) Samsung PCIe3 x4 SM951 (NVME) Samsung PCIe x4 XP941-512G (MZHPU512HCGL) SanDisk PCIe SD6PP4M-128G SanDisk PCIe SD6PP4M-256G TEAM PCIe3 x4 TM8FP2240G0C101 TEAM PCIe3 x4 TM8FP2480GC110 PCIe3 x4 WDS256G1X0C-00ENX0 (NVME) PCIe3 x4 WDS512G1X0C-00ENX0 (NVME) http://www.Altos.com...
  • Page 45 B550M Phantom Gaming 4 2.9 M.2_SSD (NGFF) Module Installation Guide (M2_2) The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The M.2 Socket (M2_2) supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s).
  • Page 46 Step 3 Align and gently insert the M.2 (NGFF) SSD module into the M.2 slot. Please be aware that the M.2 (NGFF) SSD module only fits in one orientation. Step 4 Tighten the screw with a screwdriver to secure the module into place. Please do not overtighten the screw as this might damage the module.
  • Page 47 B550M Phantom Gaming 4...
