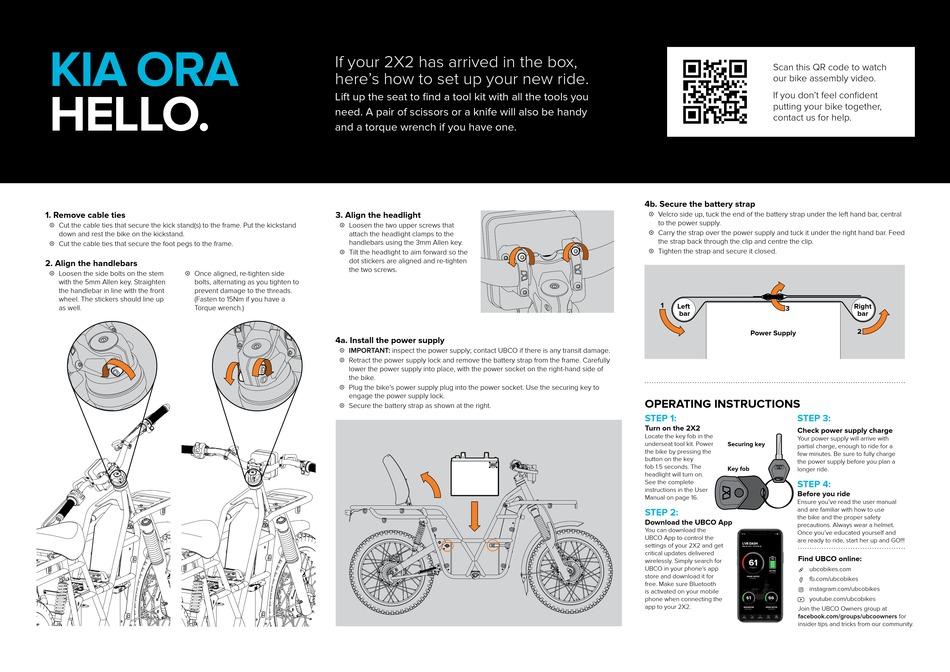

UBCO 2X2 WORK BIKE Manual

KIA ORA
HELLO.
1. Remove cable ties
A Cut the cable ties that secure the kick stand(s) to the frame. Put the kickstand
down and rest the bike on the kickstand.
A Cut the cable ties that secure the foot pegs to the frame.
2. Align the handlebars
A Loosen the side bolts on the stem A Once aligned, re-tighten side
with the 5mm Allen key. Straighten bolts, alternating as you tighten to
the handlebar in line with the front prevent damage to the threads.
wheel. The stickers should line up (Fasten to 15Nm if you have a
as well. Torque wrench.)
If your 2X2 has arrived in the box,
here's how to set up your new ride.
Lift up the seat to find a tool kit with all the tools you
need. A pair of scissors or a knife will also be handy
and a torque wrench if you have one.
3. Align the headlight
A Loosen the two upper screws that
attach the headlight clamps to the
handlebars using the 3mm Allen key.
A Tilt the headlight to aim forward so the
dot stickers are aligned and re-tighten
the two screws.
4a. Install the power supply
A IMPORTANT: inspect the power supply; contact UBCO if there is any transit damage.
A Retract the power supply lock and remove the battery strap from the frame. Carefully
lower the power supply into place, with the power socket on the right-hand side of
the bike.
A Plug the bike's power supply plug into the power socket. Use the securing key to
engage the power supply lock.
A Secure the battery strap as shown at the right.
Scan this QR code to watch
our bike assembly video.
If you don't feel confident
putting your bike together,
contact us for help.
4b. Secure the battery strap
A Velcro side up, tuck the end of the battery strap under the left hand bar, central
to the power supply.
A Carry the strap over the power supply and tuck it under the right hand bar. Feed
the strap back through the clip and centre the clip.
A Tighten the strap and secure it closed.
1 Left
3
bar
Power Supply
OPERATING INSTRUCTIONS
STEP 1: STEP 3:
Turn on the 2X2
Check power supply charge
Locate the key fob in the
Your power supply will arrive with
underseat tool kit. Power Securing key
partial charge, enough to ride for a
the bike by pressing the
few minutes. Be sure to fully charge
button on the key
the power supply before you plan a
fob 1.5 seconds. The
Key fob
longer ride.
headlight will turn on.
See the complete STEP 4:
instructions in the User
Before you ride
Manual on page 16.
Ensure you've read the user manual
and are familiar with how to use
STEP 2:
the bike and the proper safety
Download the UBCO App
precautions. Always wear a helmet.
You can download the
Once you've educated yourself and
UBCO App to control the
are ready to ride, start her up and GO!!!
settings of your 2X2 and get
critical updates delivered
Find UBCO online:
wirelessly. Simply search for
UBCO in your phone's app
ubcobikes.com
store and download it for
fb.com/ubcobikes
free. Make sure Bluetooth
instagram.com/ubcobikes
is activated on your mobile
youtube.com/ubcobikes
phone when connecting the
app to your 2X2.
Join the UBCO Owners group at
facebook.com/groups/ubcoowners for
insider tips and tricks from our community.
Right
bar
2
