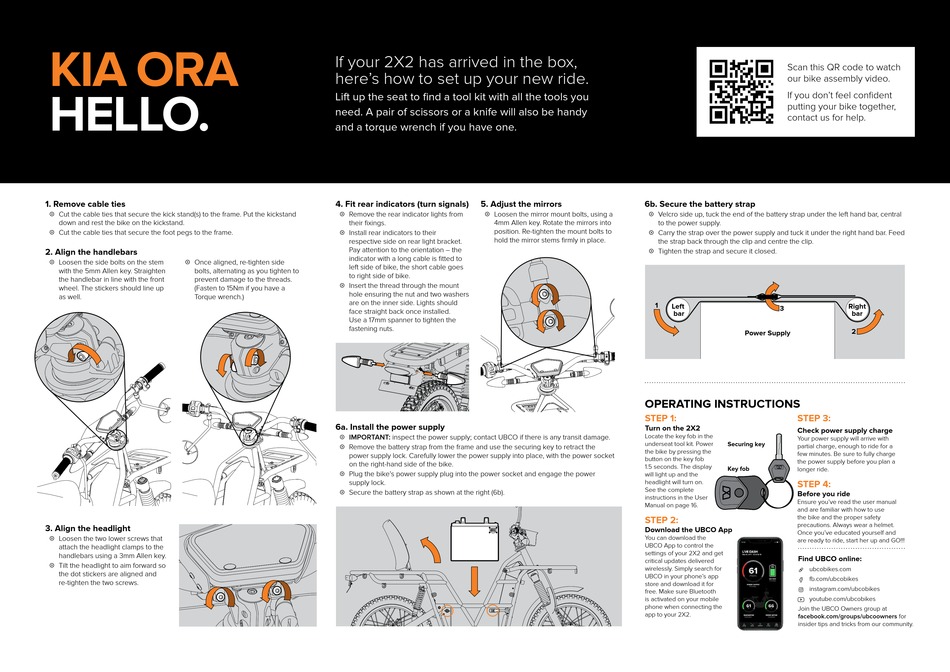

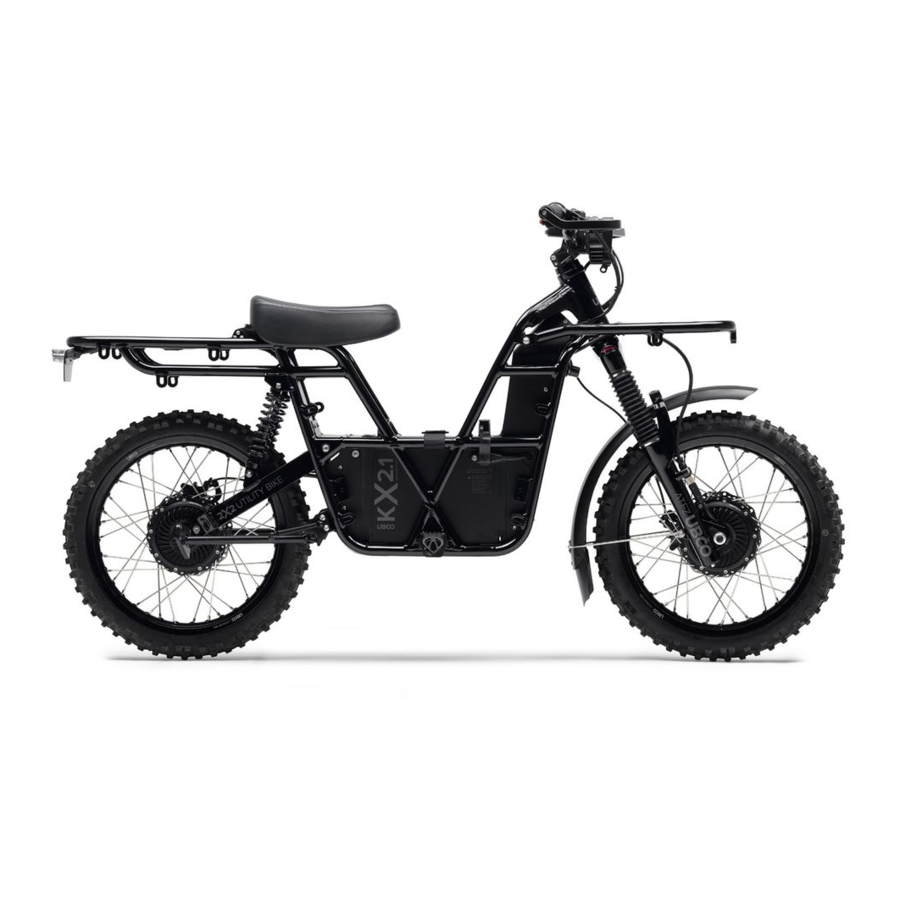

UBCO 2X2 ADVENTURE BIKE Manual

KIA ORA
HELLO.
1. Remove cable ties
A Cut the cable ties that secure the kick stand(s) to the frame. Put the kickstand
down and rest the bike on the kickstand.
A Cut the cable ties that secure the foot pegs to the frame.
2. Align the handlebars
A Loosen the side bolts on the stem A Once aligned, re-tighten side
with the 5mm Allen key. Straighten bolts, alternating as you tighten to
the handlebar in line with the front prevent damage to the threads.
wheel. The stickers should line up (Fasten to 15Nm if you have a
as well. Torque wrench.)
3. Align the headlight
A Loosen the two lower screws that
attach the headlight clamps to the
handlebars using a 3mm Allen key.
A Tilt the headlight to aim forward so
the dot stickers are aligned and
re-tighten the two screws.
If your 2X2 has arrived in the box,
here's how to set up your new ride.
Lift up the seat to find a tool kit with all the tools you
need. A pair of scissors or a knife will also be handy
and a torque wrench if you have one.
4. Fit rear indicators (turn signals) 5. Adjust the mirrors
A Remove the rear indicator lights from A Loosen the mirror mount bolts, using a
their fixings. 4mm Allen key. Rotate the mirrors into
position. Re-tighten the mount bolts to
A Install rear indicators to their
hold the mirror stems firmly in place.
respective side on rear light bracket.
Pay attention to the orientation – the
indicator with a long cable is fitted to
left side of bike, the short cable goes
to right side of bike.
A Insert the thread through the mount
hole ensuring the nut and two washers
are on the inner side. Lights should
face straight back once installed.
Use a 17mm spanner to tighten the
fastening nuts.
6a. Install the power supply
A IMPORTANT: inspect the power supply; contact UBCO if there is any transit damage.
A Remove the battery strap from the frame and use the securing key to retract the
power supply lock. Carefully lower the power supply into place, with the power socket
on the right-hand side of the bike.
A Plug the bike's power supply plug into the power socket and engage the power
supply lock.
A Secure the battery strap as shown at the right (6b).
Scan this QR code to watch
our bike assembly video.
If you don't feel confident
putting your bike together,
contact us for help.
6b. Secure the battery strap
A Velcro side up, tuck the end of the battery strap under the left hand bar, central
to the power supply.
A Carry the strap over the power supply and tuck it under the right hand bar. Feed
the strap back through the clip and centre the clip.
A Tighten the strap and secure it closed.
1 Left
3
bar
Power Supply
OPERATING INSTRUCTIONS
STEP 1: STEP 3:
Turn on the 2X2
Check power supply charge
Locate the key fob in the
Your power supply will arrive with
underseat tool kit. Power Securing key
partial charge, enough to ride for a
the bike by pressing the
few minutes. Be sure to fully charge
button on the key fob
the power supply before you plan a
1.5 seconds. The display
Key fob
longer ride.
will light up and the
headlight will turn on. STEP 4:
See the complete
Before you ride
instructions in the User
Ensure you've read the user manual
Manual on page 16.
and are familiar with how to use
the bike and the proper safety
STEP 2:
precautions. Always wear a helmet.
Download the UBCO App
Once you've educated yourself and
You can download the
are ready to ride, start her up and GO!!!
UBCO App to control the
settings of your 2X2 and get
Find UBCO online:
critical updates delivered
wirelessly. Simply search for
ubcobikes.com
UBCO in your phone's app
fb.com/ubcobikes
store and download it for
instagram.com/ubcobikes
free. Make sure Bluetooth
youtube.com/ubcobikes
is activated on your mobile
phone when connecting the
Join the UBCO Owners group at
app to your 2X2.
facebook.com/groups/ubcoowners for
insider tips and tricks from our community.
Right
bar
2
