Technical Data
Connections
DALI:
Cable rating:
Power
DALI supply input:
DALI consumption:
Sensors
Presence detector:
Infrared receiver:
Remote control functions
Remote control
handset:
Range:
Mechanical data
Mounting hole
diameter:
Bezel diameter:
Recommended
clearance depth
(incl. 50 mm for
cabling):
Material (casing):
Finish/Colour:
Weight:
IP code:
Gasket:
Masks:
Operating conditions
Ambient temperature: 317: 0 °C to +35 °C
Relative humidity:
Storage temperature:
4 Helvar 317 High-Bay PIR Presence/Absence Detector: Installation Guide
Removable connector block
Wire size: 0.5 mm² – 1.5 mm²
Solid, flexible or stranded
All cables must be mains rated.
13 V to 22.5 V
20 mA
PIR: Passive infrared presence
detector
For remote control commands.
Helvar 303 remote control
Note: Adjust sensitivity using
Designer, or Toolbox (not by remote
control unit).
5 m – 15 m
68 mm
88 mm
80 mm (without protective cover);
100 mm (with protective cover)
Flame retardant ABS and PC/ABS
Matt / White RAL 9003
120 g
IP40 without gasket; IP65 with
gasket
Silicone ingress protection gasket
(not compatible with surface
mount box SBB-A)
Two adaptable masks included,
each covering half of the sensor
lens.
317M: –30 °C to +35 °C
Note: The temperature difference
between the detection target and
the background must be at least
4 °C.
Max. 90 %, noncondensing
317: –10 °C to +70 °C
317M: –30 °C to +70 °C
Conformity and standards
EMC emission: EN 61000–6–1
EMC immunity:
EN 61000–6–3
Safety:
EN 60730–1
Environment:
Complies with WEEE and RoHS
directives.

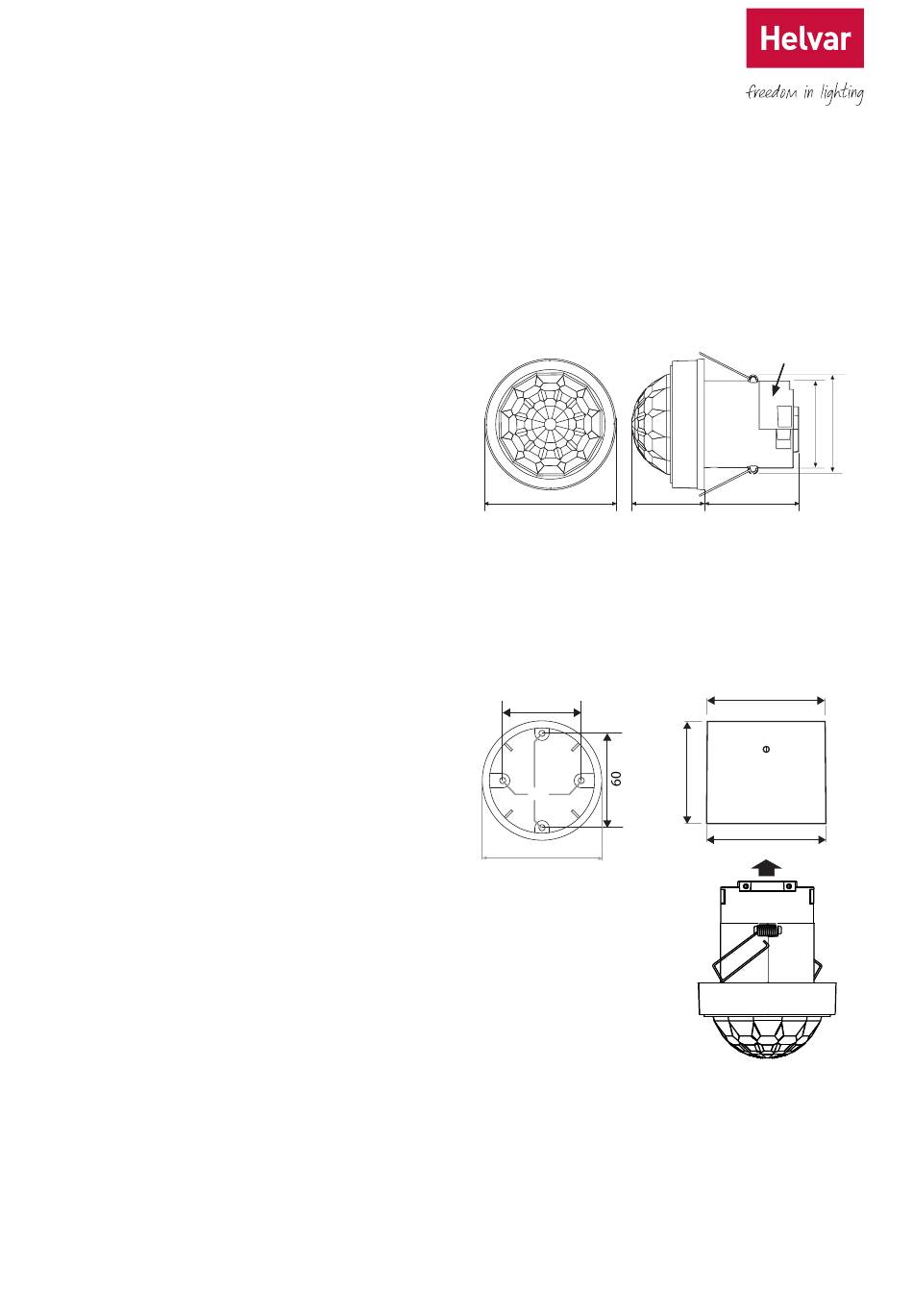

Dimensions
88
Ø
Installation in Surface Mount Box SBB-A
(IP 40)
50
5
Ø
Ø 76
Note: The SBB-A surface mount box must be ordered
separately.
Protective
cover
68
58
49 63
73
65
76
